22 Threat Protection System Hardware Specification and Installation Guide

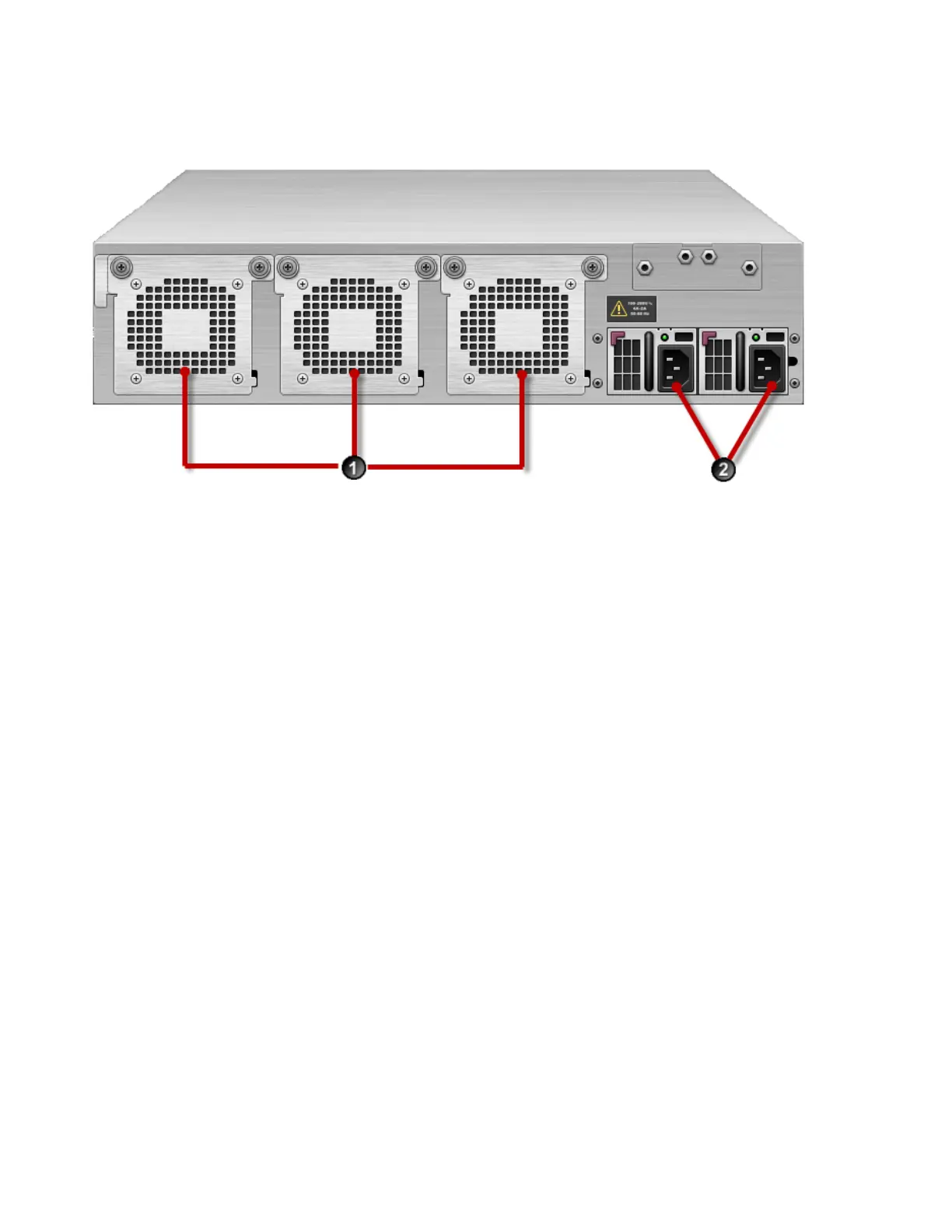

Figure 8. TPS 2200T – device rear panel
1. Fans (3)
2. Power supplies (2)
Chassis – features
The TPS 2200T chassis features include the following elements:
• Power button on page 22
• System status indicator on page 23
• Alert indicator on page 23
• Fans and power supplies on page 23
• External storage card on page 23
• Ports on page 23
Power button
The power button is located on the right side of the console/management ports on the front panel. The
power button light indicates the current status of the appliance.
• No light — Appliance is powered off.
• Green — Appliance is powered on.
