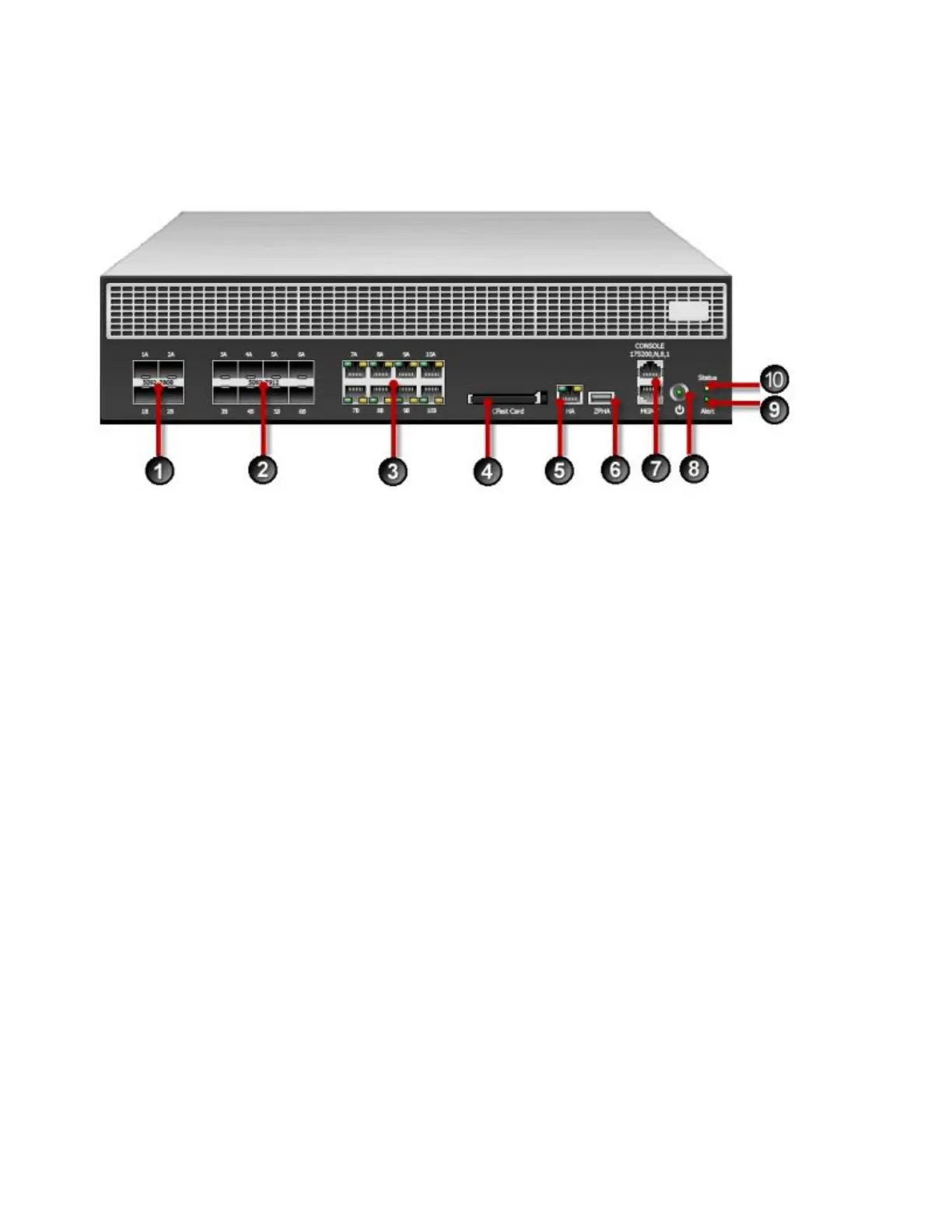

Figure 7. TPS 2200T device – front panel
1. 10GbE SFP+ ports
2. 1GbE SFP ports
3. 1GbE copper ports
4. External CFast card
5. Dedicated HA port
6. ZPHA port
7. Console/Management port
8. Power button
9. Alert indicator
10. System status indicator
Chassis – rear panel
The following illustration shows the rear-panel view of the TPS 2200T device.
