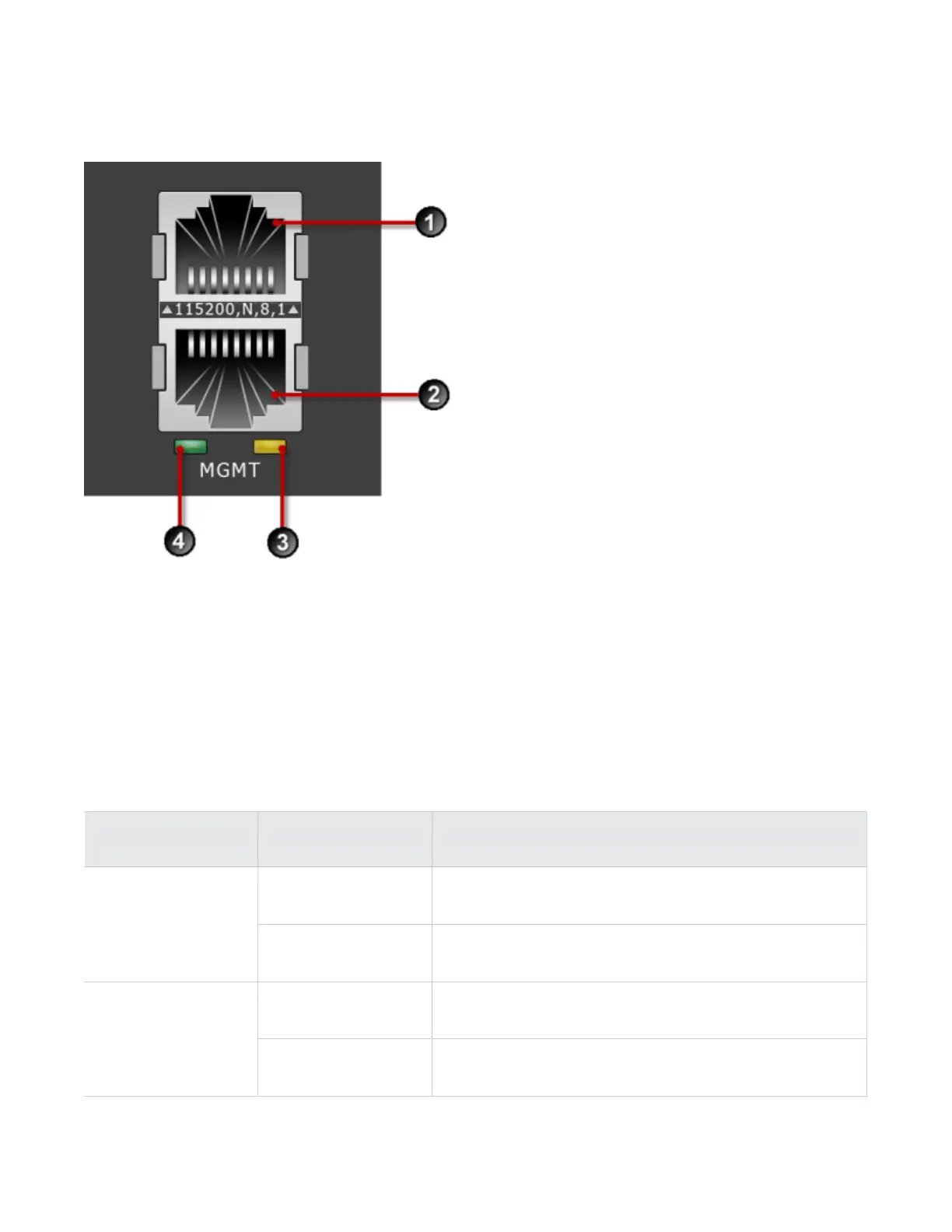

Figure 12. TPS 440T device – management and console ports
1. 1 RJ-45 serial console port
2. 1 GbE copper management port
3. Activity LED
4. Link LED
The management port LEDs indicate link and activity state, as described in the following table.
Table 12. TPS 440T – port LED states
LED Type Color Description
Green Link is active at 1000 Mbps.Link
Off Link is inactive, or is active at 10 Mbps or 100 Mbps.
Blinking amber Data traffic is passing.Activity
Off No traffic is passing.
