TRENDnet TEW-750DAP User Manual

© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TEW-750DAP
14

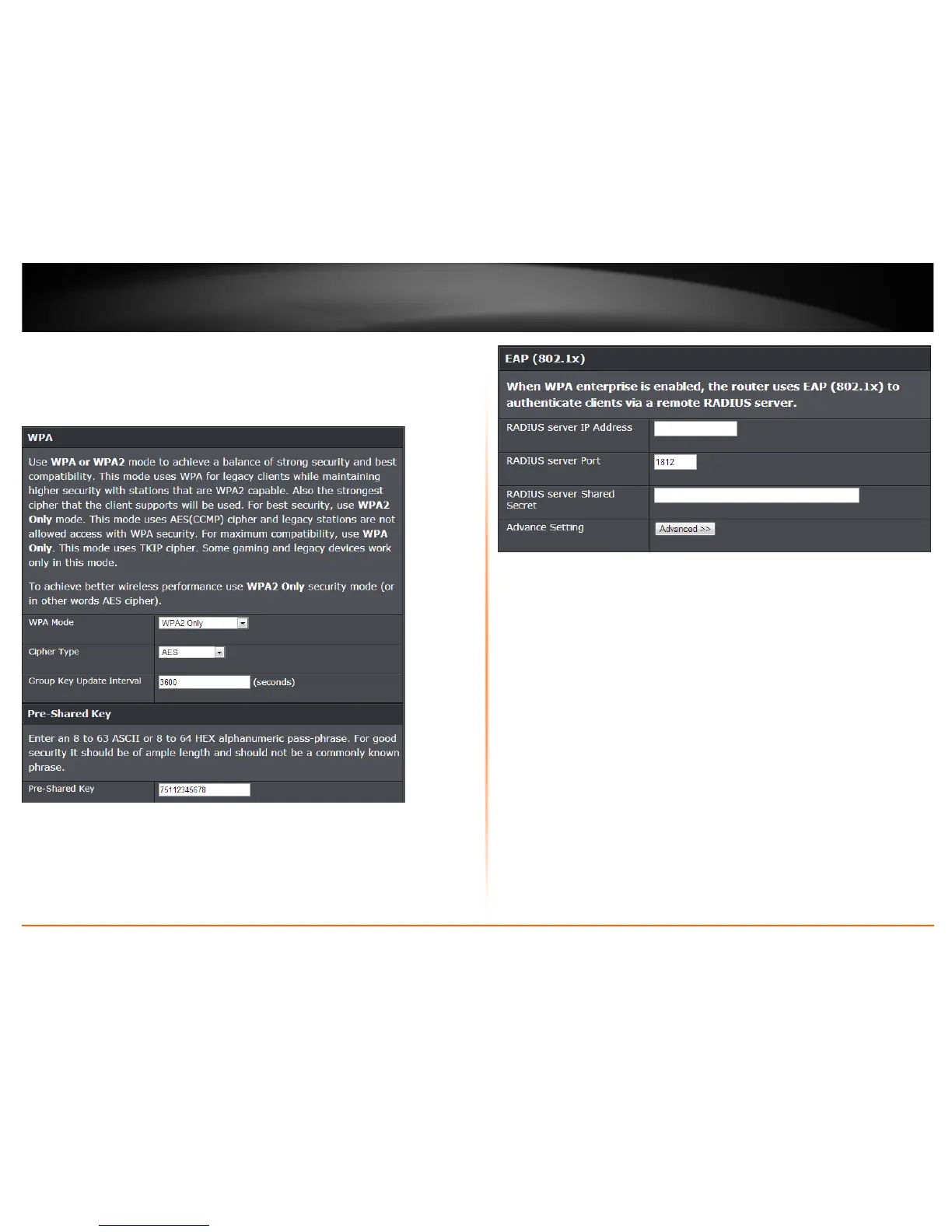

Selecting WPA-Personal with Auto (WPA or WPA2)/WPA Only/WPA2 Only
(WPA2 Only recommended):
In the Security Mode drop-down list, select WPA-Personal. Please review the WPA-
Personal settings to configure and click Save Settings to save the changes.
Selecting WPA-Enterprise with Auto (WPA or WPA2)/WPA Only/WPA2 Only
(WPA2 Only recommended):
The following section outlines options when selecting WPA-Enterprise (EAP or RADIUS).
This security type is also known as EAP (Extensible Authentication Protocol) or Remote
Authentication Dial-In User Service or RADIUS.
Note: This security type requires an external RADIUS server, Pre-Shared Key only requires
you to create a passphrase.
• RADIUS Server Address: Enter the IP address of the RADIUS server. (e.g.
192.168.10.250)
• RADIUS Port: Enter the port your RADIUS server is configured to use for RADIUS
authentication.
Note: It is recommended to use port 1812 which is typical default RADIUS port.
• RADIUS Server Shared Secret: Enter the shared secret used to authorize your
access point with your RADIUS server.
• Advance Setting – Click this option to set up an additional backup RADIUS server.

TRENDnet TEW-750DAP Specifications

Operating Environment

operating temperature	0 - 40 °C
operating humidity	Max. 95% non-condensing

Power

input voltage	100 - 240 V AC
output voltage	12 V DC
power consumption	10.1 Watts

Antenna and Wireless

antenna gain 2.4 GHz	2 x 1.5 dBi
antenna gain 5 GHz	2 x 4 dBi
wireless output power 802.11a	15 dBm

Weight and Dimensions

weight	238 g
dimensions	45 x 118 x 164 mm
