TRENDnet TEW-750DAP User Manual

© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TEW-750DAP
5

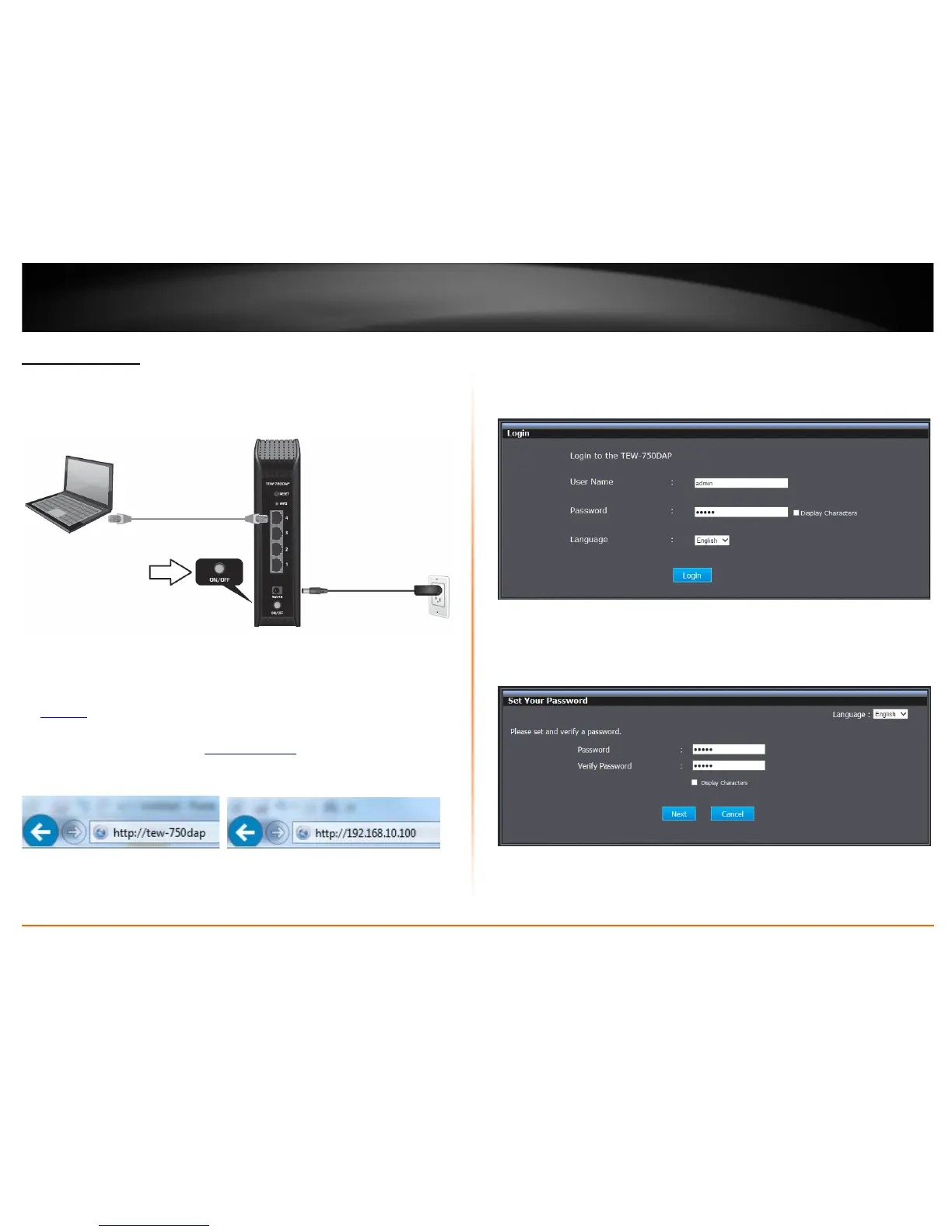

Basic Installation
1. Connect the power adapter to the access point and then to a power outlet. Connect
your computer to one of the access point’s LAN ports (1-4). Push the ON/OFF switch on
the TEW-750DAP to power up the access point.
2. Assign a static IP address to your computer’s network adapter in the subnet of
192.168.10.x (ex. 192.168.10.25) and a subnet mask of 255.255.255.0. (Please refer to
the Appendix
on page 60 on how to assign static IP address to your computer)
3. Open your web browser and enter http://tew-750dap
.
Note: You can also access the device using the default IP address (192.168.10.100)
4. Enter the User Name and Password. By default
User Name: admin
Password: admin
5. Enter a new password, verify the new password and click Next.
Note: The Wizard should automatically appear. If the wizard does not appear
automatically, click Main and then click Wizard.

TRENDnet TEW-750DAP Specifications

Operating Environment

operating temperature	0 - 40 °C
operating humidity	Max. 95% non-condensing

Power

input voltage	100 - 240 V AC
output voltage	12 V DC
power consumption	10.1 Watts

Antenna and Wireless

antenna gain 2.4 GHz	2 x 1.5 dBi
antenna gain 5 GHz	2 x 4 dBi
wireless output power 802.11a	15 dBm

Weight and Dimensions

weight	238 g
dimensions	45 x 118 x 164 mm
