TRENDnet User’s Guide
TEW-750DAP
3

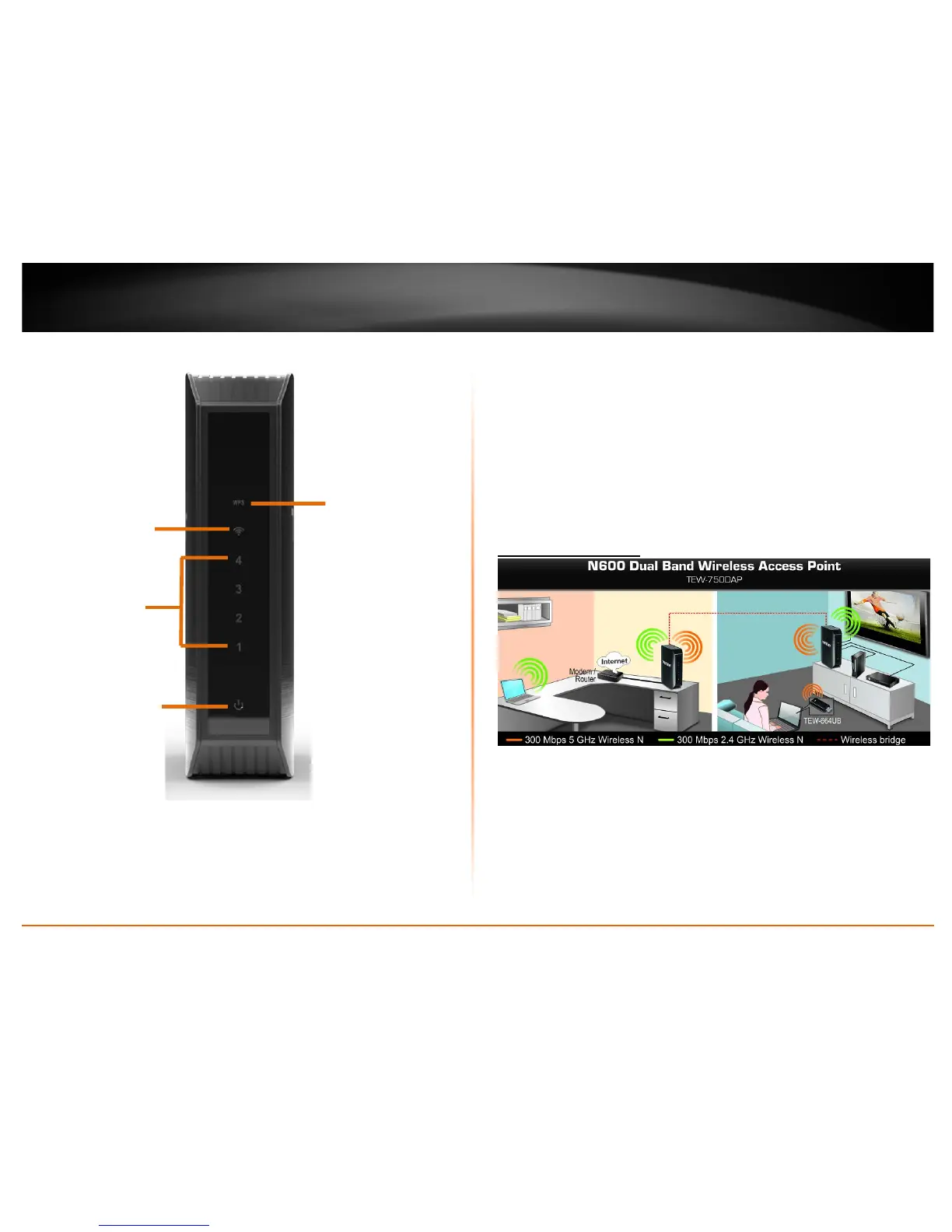

Front View
• WPS LED: The indicator will blink when WPS is activated. The LED will
stop blinking and remain solid green automatically once WPS process is
completed.
• Wireless (Link/Activity) LED: The indicator turns on solid green when
wireless is enabled on your access point. The indicator will blink during
when data is transmitted or received by your wireless client devices
connected to your access point.
• Ethernet LAN Ports 1-4 (Link/Activity) LED: These LED indicators are
solid green when the LAN ports 1-4 are physically connected to your
wired network devices (which are turned on) with a network or Ethernet
cable. These LED indicators will blink green while data is transmitted or
received through your access point’s Ethernet LAN ports.
• Power LED: The indicator is solid green when your access point is
powered on. Otherwise if this LED indicator is off, there is no power to
your access point. The indicator will also blink when WPS is activated.
The LED will stop blinking and remain solid green automatically once
WPS process is completed.
Application Diagram
The first access point is installed near your modem/router (typically supplied by your ISP “Internet
Service Provider”) and physically connected using one of your access point’s Ethernet LAN ports.
The access point is configured to create a WDS (Wireless Distribution System) Bridge or wireless
bridge to a second access point installed in your entertainment center extending wireless
coverage as well as wired network connectivity to media devices (TVs, game consoles, or media
bridges) using the four Ethernet LAN ports. In addition, 2.4GHz and 5GHz wireless signals from
both access points are broadcasted to wireless clients such as laptops (with wireless capability),
thereby providing network connectivity and Internet access for all wireless client devices and
extending network connectivity.
