TRENDnet TEW-750DAP User Manual

© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TEW-750DAP
19

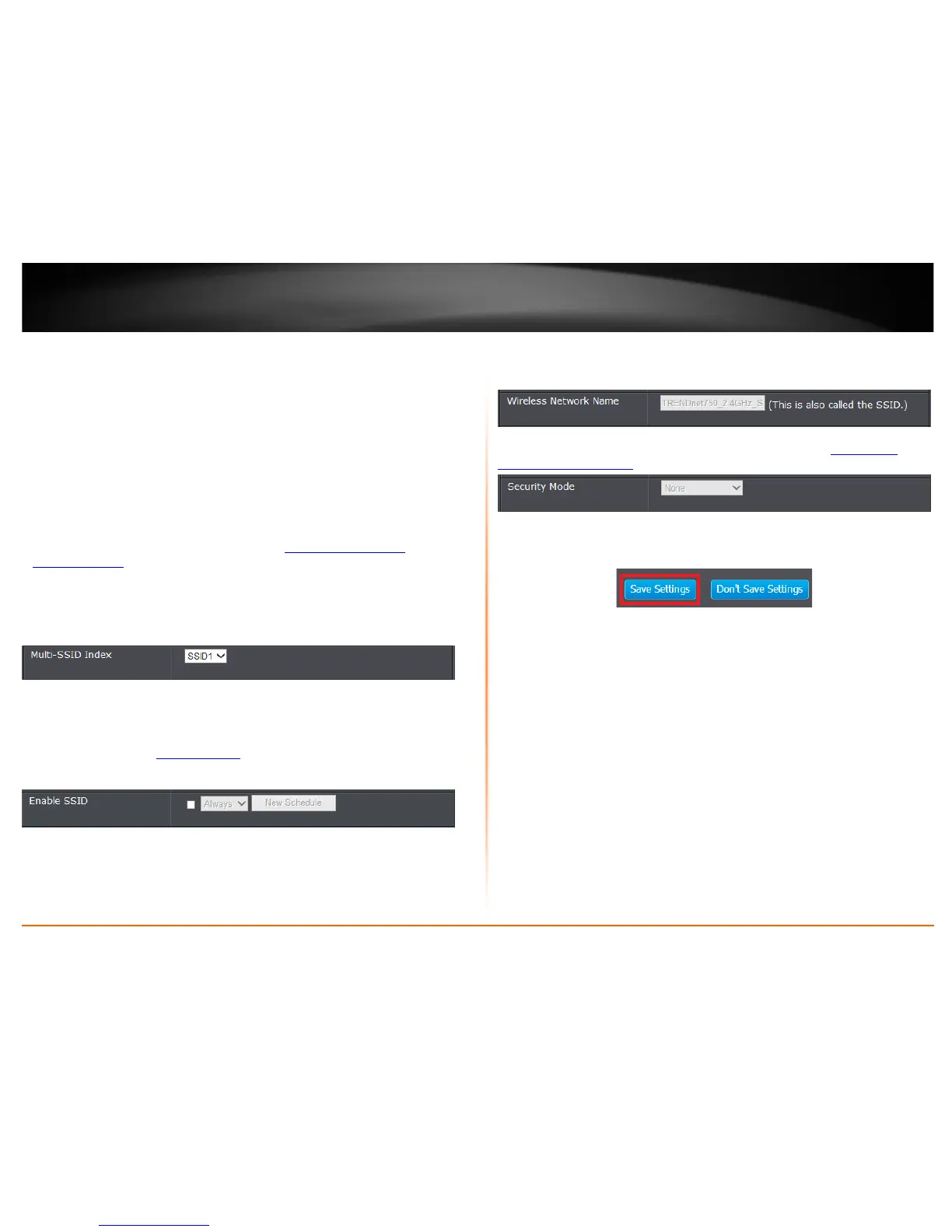

Multiple SSID
Access > Multi-SSID
The multiple SSID feature allows you to broadcast up to 3 additional SSIDs (or wireless
network names) per band (2.4GHz and 5GHz). When wireless devices are searching for
available wireless networks to connect to, the SSIDs (or wireless network names) will
appear as separate and different wireless networks. Each SSID can be configured each
with a different SSID (or wireless network name), security type and additional settings
for wireless devices to connect. You can use the multiple SSID feature to setup guest
wireless accounts with a different security type to keep your primary wireless network
security information private.
1. Log into your access point management page (see “
Access your access point
management page” on page 11).
2. Click on Advanced, and click on Multi-SSID.
3. Click the Multi-SSID Index drop-down list and select the SSID to configure.
4. Check the Enable SSID option to enable the selected SSID or uncheck to disable.
o New Schedule – The schedule function allows you to define a schedule when the
wireless SSID should be turned on. To define a new schedule, click New Schedule
and refer to page 45 Create Schedules
. After you have created a new schedule,
click the drop-down list and the new schedule will be available for selection.
5. In the Wireless Network Name (SSID) field, enter the wireless name (SSID) to
broadcast for the additional SSID.
6. Configure the wireless security for the selected SSID. See page 13
Securing your
wireless network for details on configuring wireless security.
7. Click Save Settings.
Note: If you would like to discard the changes, click Don’t Save Settings.
Repeat these steps 2-7 to configure the additional SSIDs.
Note: To verify that the multiple SSIDs are active, using a wireless device, scan for
available wireless networks and check if the wireless device is able to discover the SSIDs.
To check connectivity, using a wireless device, connect to these SSIDs using the wireless
security types you have configured.

TRENDnet TEW-750DAP Specifications

Operating Environment

operating temperature	0 - 40 °C
operating humidity	Max. 95% non-condensing

Power

input voltage	100 - 240 V AC
output voltage	12 V DC
power consumption	10.1 Watts

Antenna and Wireless

antenna gain 2.4 GHz	2 x 1.5 dBi
antenna gain 5 GHz	2 x 4 dBi
wireless output power 802.11a	15 dBm

Weight and Dimensions

weight	238 g
dimensions	45 x 118 x 164 mm
