TRENDnet TEW-750DAP User Manual

© Copyright 2013 TRENDnet. All Rights Reserved.
TRENDnet User’s Guide
TEW-750DAP
27

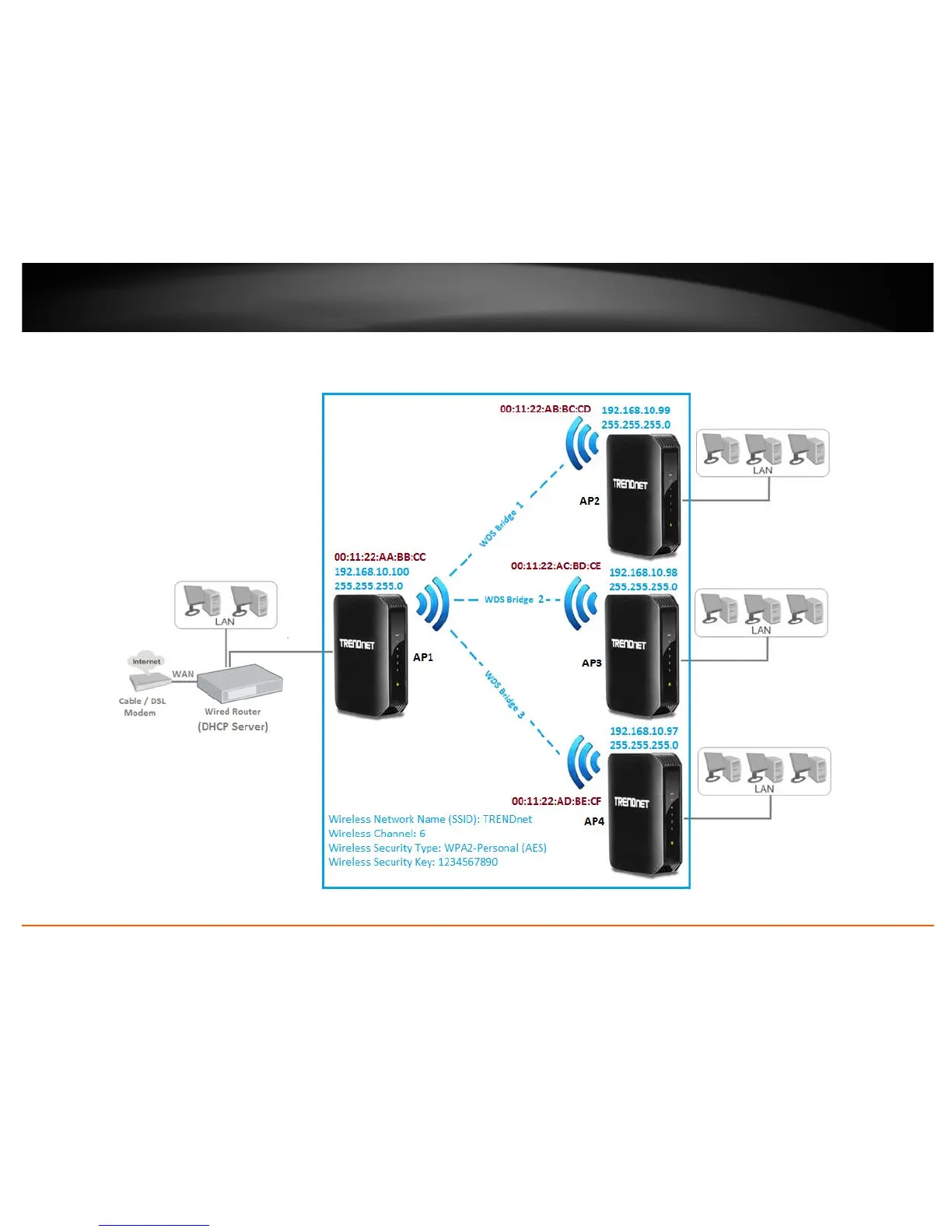

The diagram below illustrates an example of the parameters configured when planning for WDS bridging. Each WDS supported access point is configured with a different IP address
(blue) to prevent IP address conflict. The “wired router” is the only single DHCP server (gray) providing automatic IP address assignment for all client devices in the network. The WDS
parameters required to match on all WDS supported access points in order to establish WDS wireless bridging is configured (blue). The wireless MAC of all devices is noted (red).

TRENDnet TEW-750DAP Specifications

Operating Environment

operating temperature	0 - 40 °C
operating humidity	Max. 95% non-condensing

Power

input voltage	100 - 240 V AC
output voltage	12 V DC
power consumption	10.1 Watts

Antenna and Wireless

antenna gain 2.4 GHz	2 x 1.5 dBi
antenna gain 5 GHz	2 x 4 dBi
wireless output power 802.11a	15 dBm

Weight and Dimensions

weight	238 g
dimensions	45 x 118 x 164 mm
