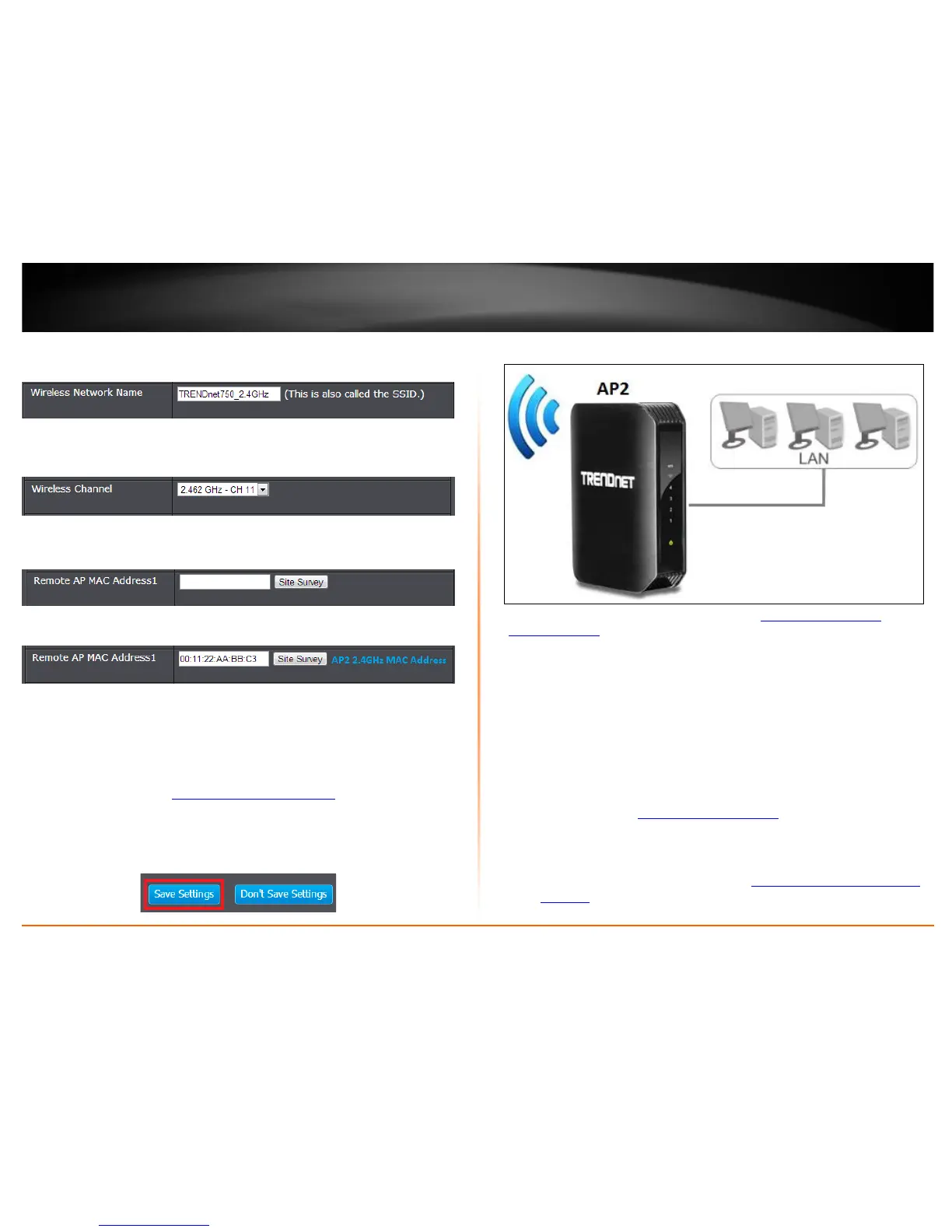

4. Next to Wireless Network Name, enter the wireless network name (SSID).
(ex. TRENDnet750_2.4GHz)
5. Click the Wireless Channel drop-down list and select a specific wireless channel.
(ex. 2.462GHz - CH 11)
6. Under the WDS section, next to Remote AP MAC Address1, enter the wireless MAC
address of the remote WDS supported access point or router.
Note: Based on the example, enter the remote 2.4GHz wireless MAC address of AP2.
(00:11:22:AA:BB:C3)
Note: You can also use the site survey option to scan for your remote WDS supported
device broadcasting (AP or WDS+AP), then select and connect to copy the wireless MAC
addresses of your other WDS supported devices. This simplifies the process of having to
write down the wireless MAC addresses of all devices and manually enter.
7. Configure the wireless security settings and wireless key.
Note: Please refer to page 12 “Wireless Networking and Security
” for details on
configuring wireless security settings.
8. Click Save Settings.
Note: If you would like to discard the changes, click Don’t Save Settings.
AP2 Configuration
1. Log into your access point management page (see “Access your access point
management page” on page 11).
2. Click on Wireless, click on Basic and scroll down to Wireless Network Settings -
(2.4GHz or 5GHz). Note: For this example, 2.4GHz band will be used which also matches
the band used for AP1.
3. Click the Device Operation Mode drop-down list and select one of following WDS
options. Note: WDS or WDS+AP modes can work with each other between WDS support
devices.
• WDS – Select this option to establish wireless bridging only without
broadcasting your wireless network name for client devices to connect. Please
refer to the section Wireless Bridge (WDS) Mode
page 21 for details on this
mode.
• WDS+AP (Recommended) – Select this option to establish wireless bridging and
broadcast your wireless network name for client devices to connect
simultaneously. Please refer to the section
Wireless Bridge (WDS) with Access
Point (AP) Mode on page 23 for details on this mode.

TRENDnet TEW-750DAP Specifications

Operating Environment

operating temperature	0 - 40 °C
operating humidity	Max. 95% non-condensing

Power

input voltage	100 - 240 V AC
output voltage	12 V DC
power consumption	10.1 Watts

Antenna and Wireless

antenna gain 2.4 GHz	2 x 1.5 dBi
antenna gain 5 GHz	2 x 4 dBi
wireless output power 802.11a	15 dBm

Weight and Dimensions

weight	238 g
dimensions	45 x 118 x 164 mm
