2 Unit Setup
Install the SD card (optional)
To install the SD card:
1.

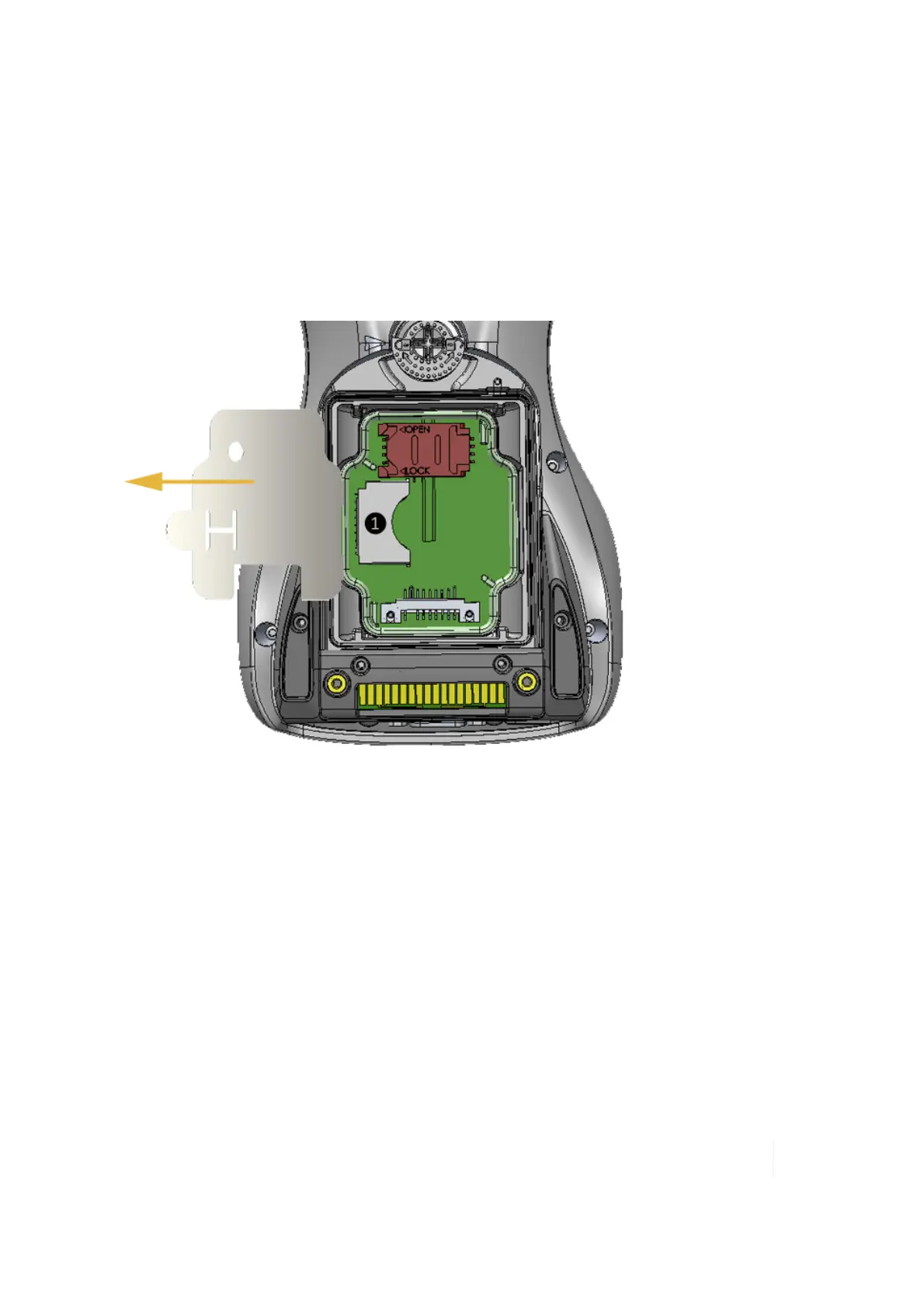

Lift up the plastic regulatory label in the battery compartment.
2.
Gently slide the SD card into the slot (❶).
3.
Close the plastic regulatory label.
Note – If your unit has the WWAN option, install the GSM SIM card. See Working with the Wireless WAN, page
50 for installation instructions.
Install the battery
The Lithium-Ion (Li-Ion) battery with the battery cover is shipped detached from the unit.
1.
Insert the battery at the bottom of the compartment first so the connector on the battery
mates with the pins in the battery compartment.
2.
Using your thumb, the flat end of the stylus or a coin, turn the latch located above the battery
Ranger Series Handheld Computer 22
