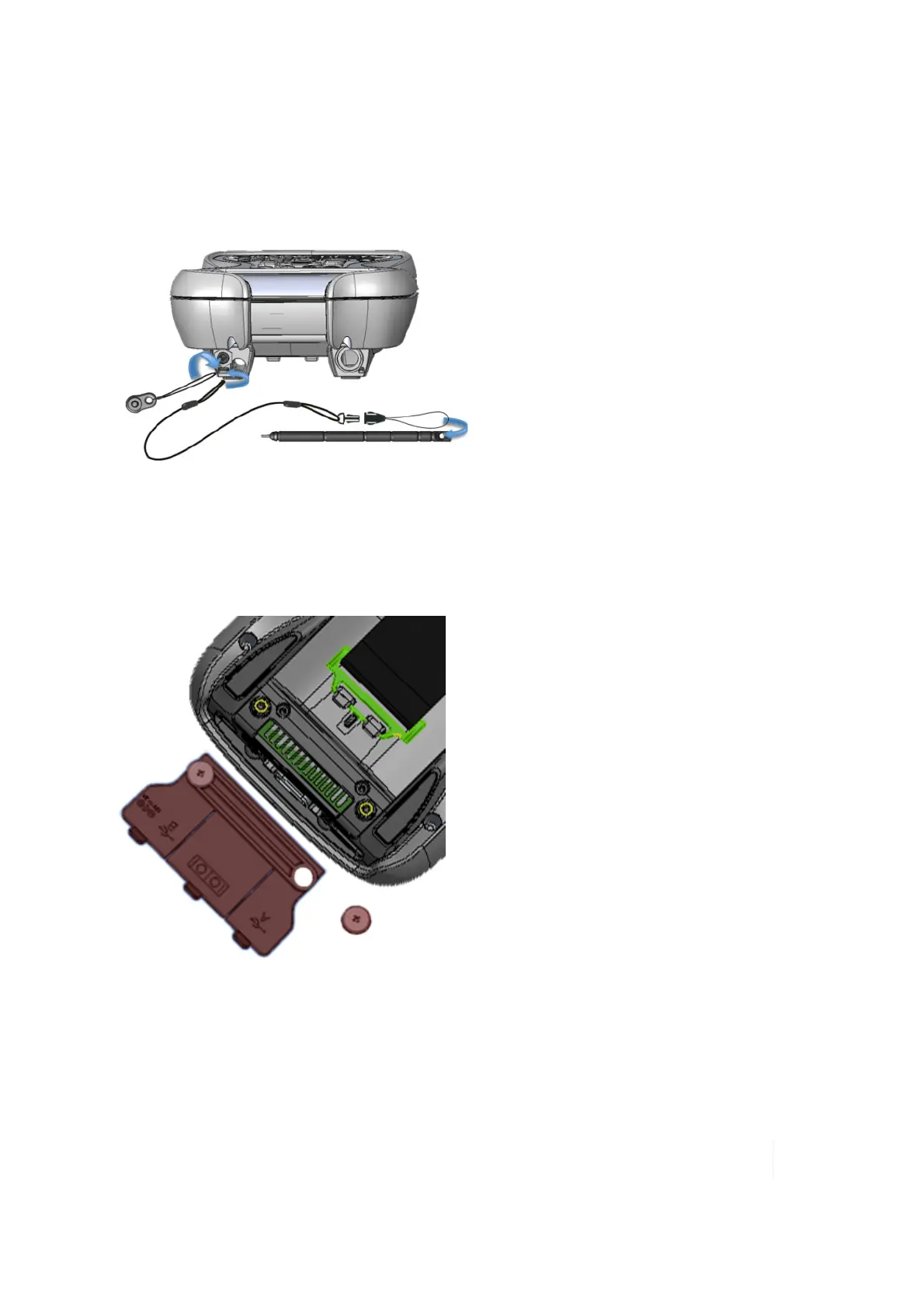

2
U
n
i
t
S
etup
At
tac
h
th
e
au
dio
por
t
cover
an
d
styl
us
A
ttach
th
e
te
th
e
rs
to
t
he
back
cas
e
,
as
s
ho
w
n
.
At
tac
h
th
e
I/
O
du
s
t
cove
r
(o
ption
al
)
Whil
e
the
u
nit
is
co
mplete
ly
s
e
al
ed,
t
he
du
st
cov
er
prot
e
cts
the
con
nec
to
rs
fr
o
m
forei
gn
ob
jects.
R
anger
S
eries
H
a
n
dh
el
d
Co
m
p
uter
24
23
25
Table of Contents
Caring for your unit
7
Environmental considerations
8
Environmental specifications
8
Hardware specifications
9
Regulatory information
10
U.S.A.
10
Canada
11
Exposure to Radio Frequency (RF) Signals
11
Carrying the unit
11
Declaration of conformity
12
Europe
12
Safe use of your unit
13
1 Introduction
16
Product parts
17
Front view
17
Back view
18
Top view
19
Bottom view
19
I/O
20
2 Unit Setup
21
Install the SD card (optional)
22
Install the battery
22
Attach the hand strap
23
Attach the audio port cover and stylus
24
Attach the I/O dust cover (optional)
24
Apply the screen protector
25
Charge the battery
26
Turning your unit on and off (resume/suspend)
26
Language selection
27
Align screen
28
Password - lock (optional)
28
3 Working with the unit and battery
29
Home screen
30
Extreme Heat
30
Battery life
30
Charging the battery
31
Changing the battery
31
Notification LEDs
32
Speaker and microphone
33
Power key features
33
Power menu
33
Perform a clean boot
34
Storage memory
34
Accessing storage memory using File Explorer
34
Task Manager
35
Flashlight
35
Status indicators
35
Settings on your unit
36
Lock (password)
36
Buttons (keys)
36
Compass calibration
37
Backlight for display
38
Memory
38
System information
38
Power
38
4 Communication
39
Connecting to a PC
40
Microsoft Windows Vista and Windows 7
40
Microsoft Windows XP SP3 or later
40
Troubleshooting connection problems
40
Working with Bluetooth
41
Bluetooth settings
41
Creating a Bluetooth Partnership
41
Bluetooth connection with a PC
42
Bluetooth-enabled headphone
42
Troubleshooting Bluetooth connection problems
42
Working with Wi-Fi (Wireless Lan, WLAN or 802.11)
42
Wi-Fi settings
43
Troubleshooting Wi-Fi connection problems
44
Installing additional software on your unit
44
Working with the camera
44
Using the camera
44
Managing pictures
45
Camera settings
46
Working with the barcode scanner
47
Using ScanAgent
47
Working with GPS
48
GPS settings
48
Using Assisted GPS (A-GPS)
49
SatViewer
49
Exiting GPS applications
49
Working with the Wireless WAN
50
Installing (or changing) the SIM card
50
Setting up the CDMA data connection
52
Removing cellular data settings
53
Customizing your phone
53
Browsing the Internet
54
Internet Sharing
54
Using the WWAN features
54
SMS messages
54
Sending and receiving e-mail
54
5 Troubleshooting
55
What do I do to keep my battery from failing during a job?
56
How do I delete files?
56
How can I see file extensions or file attributes?
56
How can I tell how much memory is available?
56
How can I make the display more viewable?
56
Can I use my SD device with my unit?
56
Can I work with Microsoft Office files in Word Mobile and Excel Mobile?
57
Can I use my USB memory stick (or mouse, keyboard, cell phone or other USB de...
57
A Appendix A
58
Using SatViewer
59
Quick Start
59
Sky tab
60
Sky Plot Graphic
60
Status Indicators
60
Satellite Icons
61
Leave SNR trails
61
DOPs Bar Graph
62
GPS tab
62
Enabling the Microsoft GPS driver
63
Restore defaults
63
NMEA / SiRF Binary
65
Static Navigation
66
Smooth Tracking
66
Masks
66
GPS status voice prompt
66
Advanced
67
Advanced GPS page
67
DGPS tab
69
Usage
70
Type
70
SBAS Sat. PRN
70
Return to Default Settings
70
Data View tab
71
Chars
71
Capture
71
Stop
72
Clear
72
View
72
Save
72
