Triumph Sprint ST Handbook

100
Maintenance and Adjustment
Dipped Headlight Horizontal
Adjustment

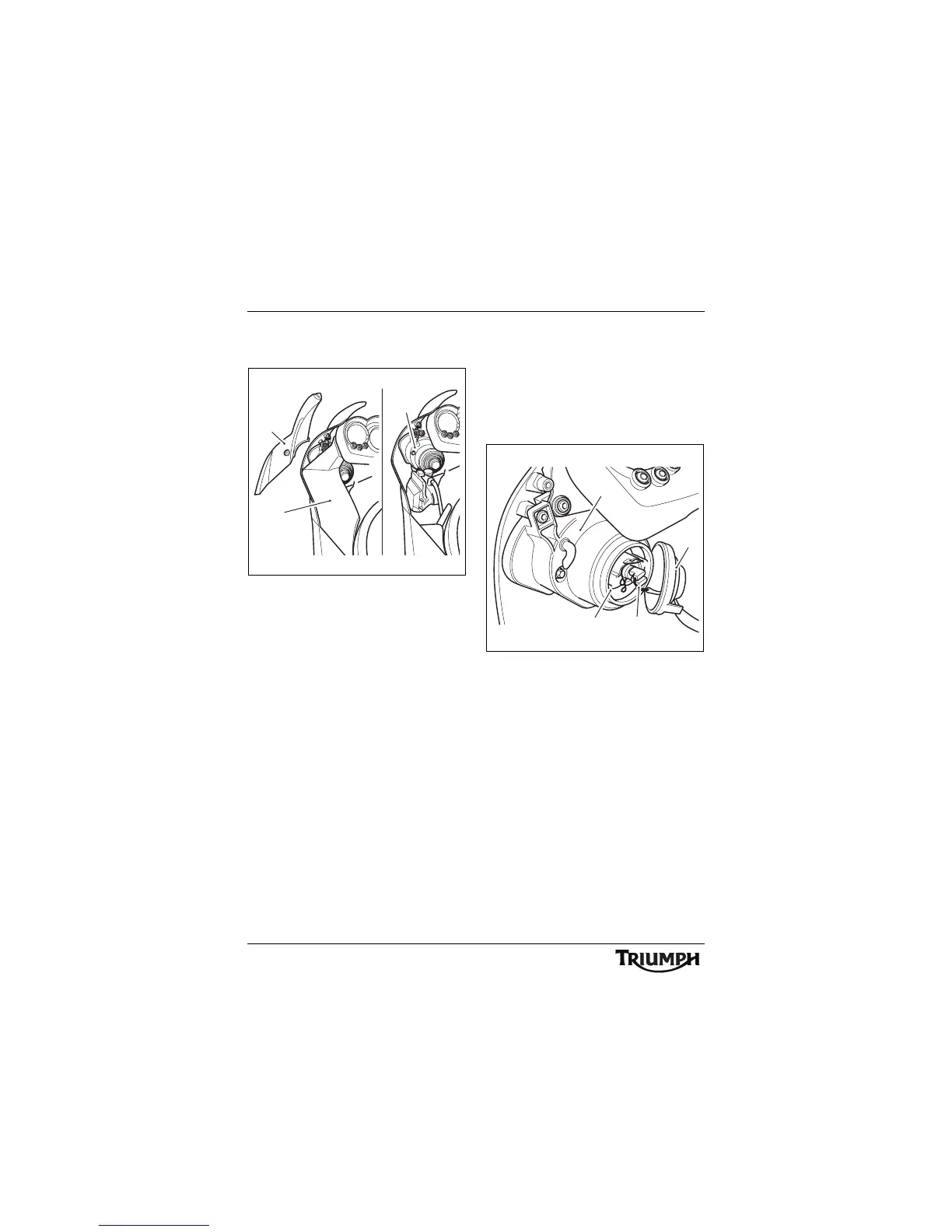

1. Left hand filler panel
2. Coolant expansion tank cover
3. Left hand headlight adjustment screw
Remove the left and right hand filler panels.
Remove the coolant expansion tank and
stowage/fuse box cover panels. It is not
necessary to remove the stowage box liner or
the fuse box.
Switch the headlight dipped beam on.
The adjustment screws are now accessible.
On the right hand headlight, turn the
horizontal adjustment screw clockwise to
move the beam to the right, or anti-clockwise
to move the beam to the left.
On the left hand headlight, turn the
horizontal adjustment screw anti-clockwise to
move the beam to the right, or clockwise to
move the beam to the left.
Switch the headlights off when the beam
settings are satisfactory.
Refit the cover and filler panels.
Dipped Headlight Bulb
Replacement
It is not necessary to remove the dipped
headlight when bulb replacement becomes
necessary. The left and right filler panels,
coolant expansion tank and stowage/fuse
box cover panels do have to be removed.
1. Headlight
2. Rubber cover
3. Multi-pin electrical connection
4. Bulb retainer
To replace a dipped headlight bulb:
Remove the seat.
Disconnect the battery, negative (black) lead
first.
Remove the relevant filler and cover panels.
Remove the rubber cover and disconnect the
multi-pin electrical connector from the bulb
to be replaced.
Detach the wire bulb retainer from the clip. It
is not necessary to undo the screw.
Remove the bulb from the headlight unit.
Installation is the reverse of the removal
procedure.
ccpi
1
2
3
ccpk
2
1
43

Triumph Sprint ST Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Rear Suspension	Monoshock with adjustable preload and rebound damping
Rear Brakes	Single 255mm disc, 2-piston caliper
Front Wheel	17 x 3.5 in
Rear Wheel	17 x 5.5 in
Front Tyre	120/70 ZR 17
Rear Tyre	180/55 ZR 17
Max Power	125 PS / 123 bhp / 92 kW @ 9, 250 rpm
Max Torque	104 Nm / 77 ft-lb @ 5, 000 rpm
Frame	Aluminum beam perimeter
Front Suspension	43 mm
Front Brakes	Twin 320 mm floating discs, 4 piston calipers
Seat Height	805 mm
Dry Weight	210 kg
Fuel Tank Capacity	20 liters
