Triumph Sprint ST Handbook

98
Maintenance and Adjustment
Headlights
Headlight Adjustment

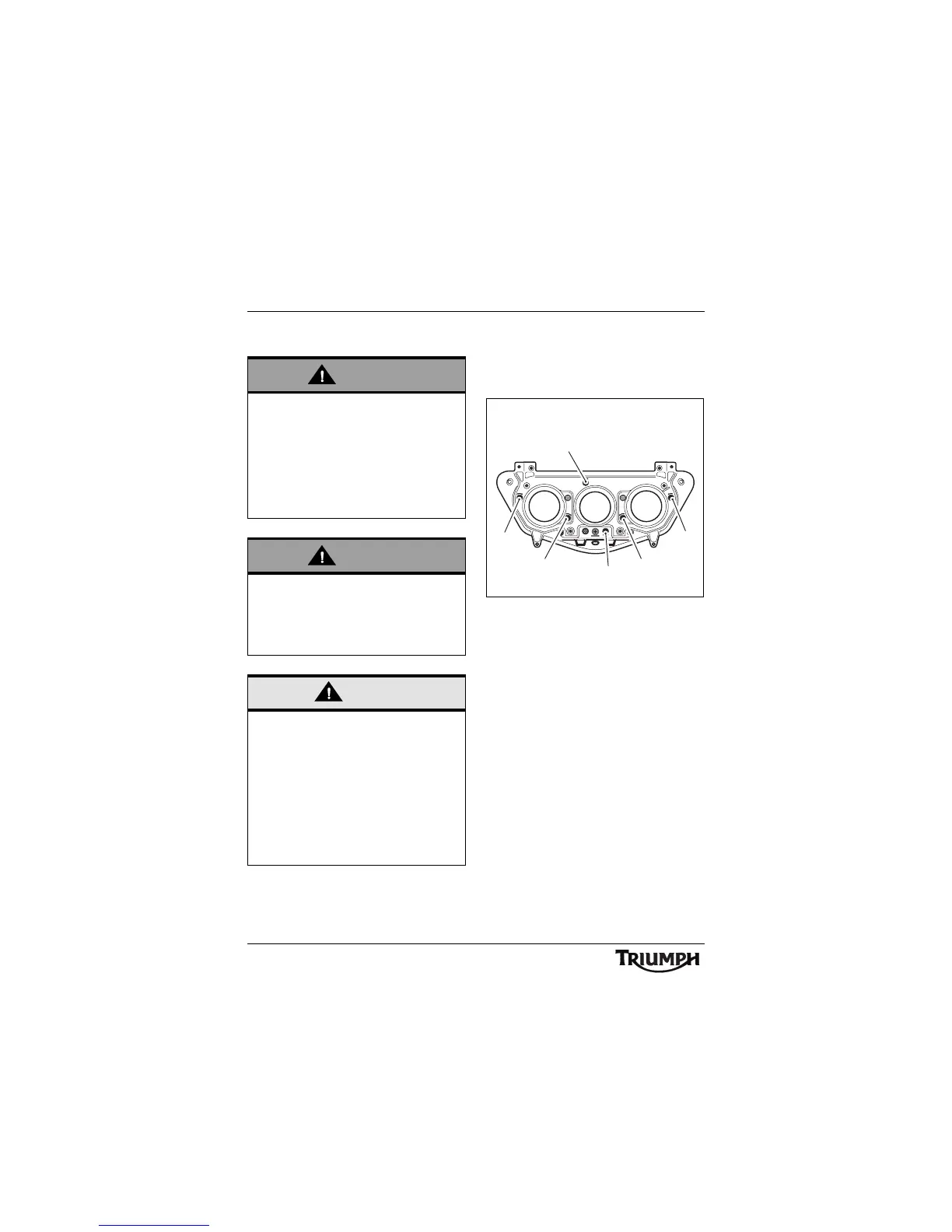

Each headlight can be adjusted by means of
vertical and horizontal adjustment screws
located on the top and rear of each headlight.
1. Horizontal adjustment screw (LH
dipped headlight)
2. Vertical adjustment screw (LH dipped
headlight)
3. Horizontal adjustment screw (main
beam)
4. Vertical adjustment screw (main
beam)
5. Vertical adjustment screw (RH dipped
headlight)
6. Horizontal adjustment screw (RH
dipped headlight)
Note:
• The illustration shows a view of
the rear of the lighting assembly.
• When turning the adjustment
screws, clockwise and
anti-clockwise directions are as
viewed from the rear of the
lighting assembly.
Warning
Adjust road speed to suit the visibility and
weather conditions in which the motorcycle
is being operated.
Ensure that the beams are adjusted to
illuminate the road surface sufficiently far
ahead without dazzling oncoming traffic.
An incorrectly adjusted headlight may
impair visibility causing an accident.
Warning
Never attempt to adjust a headlight beam
when the motorcycle is in motion.
Any attempt to adjust a headlight beam
when the motorcycle is in motion may
result in loss of control and an accident.
Caution
If the motorcycle is to be used under
closed-course conditions, you may be
asked to tape the visible outer surface of
the headlight.
When taped, the headlight will overheat
and distort the outer surface. Therefore, to
avoid headlight distortion, always
disconnect the headlights when they are
taped for use under closed-course
conditions.
U
U
U
L
L
R
R
L
D
D
D
ccoy
1
2
3
4
5
6

Triumph Sprint ST Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Rear Suspension	Monoshock with adjustable preload and rebound damping
Rear Brakes	Single 255mm disc, 2-piston caliper
Front Wheel	17 x 3.5 in
Rear Wheel	17 x 5.5 in
Front Tyre	120/70 ZR 17
Rear Tyre	180/55 ZR 17
Max Power	125 PS / 123 bhp / 92 kW @ 9, 250 rpm
Max Torque	104 Nm / 77 ft-lb @ 5, 000 rpm
Frame	Aluminum beam perimeter
Front Suspension	43 mm
Front Brakes	Twin 320 mm floating discs, 4 piston calipers
Seat Height	805 mm
Dry Weight	210 kg
Fuel Tank Capacity	20 liters
