Triumph Sprint ST Handbook

99
Maintenance and Adjustment
Main Beam Horizontal Adjustment
The main beam horizontal adjustment screw
is accessible without removing any panels. It
can be reached from below the lights.
Switch the main beam on.
Turn the adjustment screw clockwise to move
the beam to the left or anti-clockwise to move
the beam to the right.
Switch the headlights off when the beam
setting is satisfactory.
Main Beam Vertical Adjustment

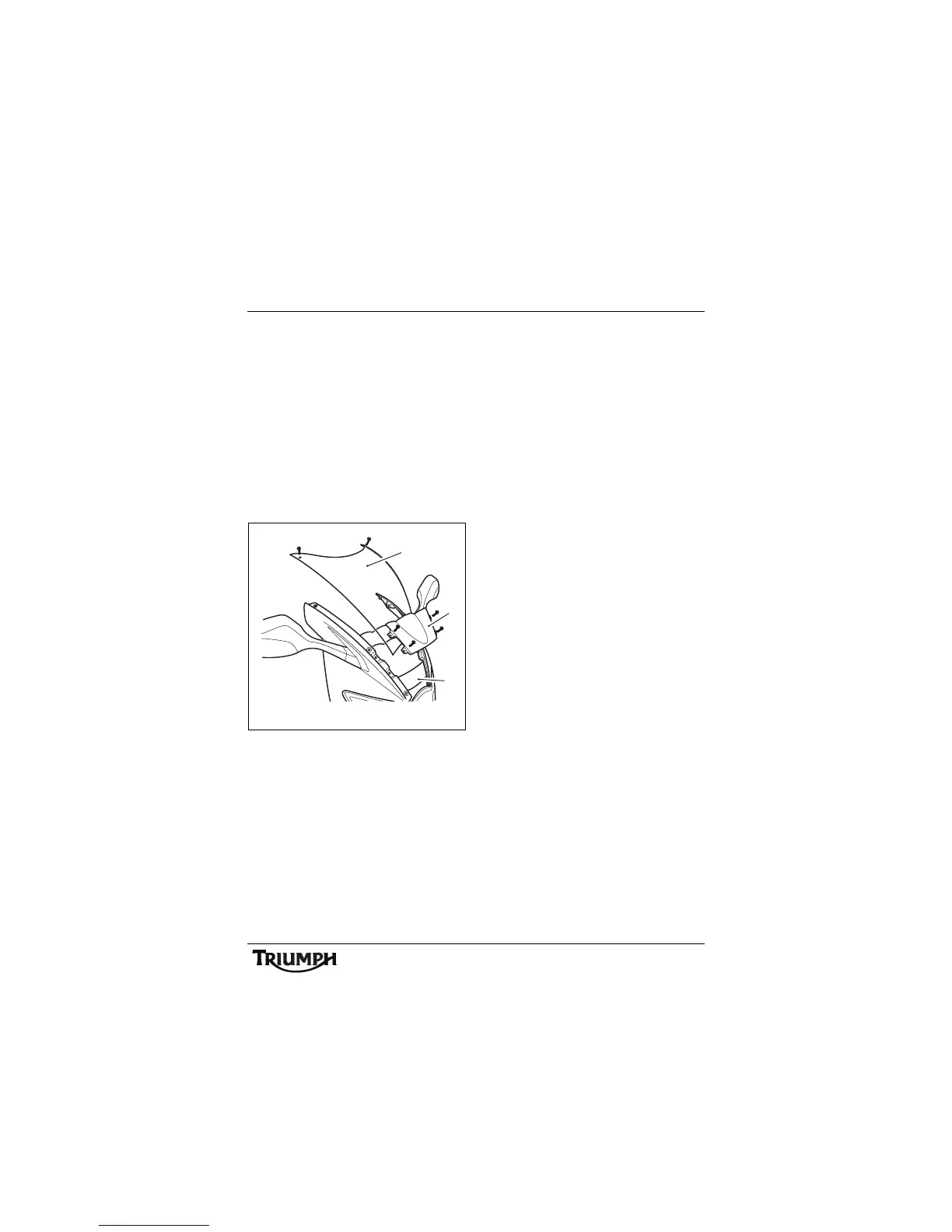

1. W i n d s c r e e n
2. Cover panel
3. Adjustment screw access
Remove the screws securing the windscreen
to the cockpit. Slide the windscreen upwards
and to the rear to remove it.
Remove the screws securing the cover panel
and remove the panel.
The adjustment screw is now accessible.
Switch the main beam on.
Turn the vertical adjustment screw clockwise
to raise the beam or anti-clockwise to lower
the beam.
Switch the headlights off when the beam
setting is satisfactory.
Refit the cover panel and windscreen.
Dipped Headlight Vertical
Adjustment
The dipped headlight vertical adjustment
screws are accessible without removing any
panels. They can be reached from below the
lights on the left or right hand side. Turn the
handlebars for ease of access.
Switch the headlight beam on.
Turn the vertical adjustment screws
anti-clockwise to raise the beams or clockwise
to lower the beams.
Switch the headlights off when the beam
settings are satisfactory.
ccpj
1
3
2

Triumph Sprint ST Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Rear Suspension	Monoshock with adjustable preload and rebound damping
Rear Brakes	Single 255mm disc, 2-piston caliper
Front Wheel	17 x 3.5 in
Rear Wheel	17 x 5.5 in
Front Tyre	120/70 ZR 17
Rear Tyre	180/55 ZR 17
Max Power	125 PS / 123 bhp / 92 kW @ 9, 250 rpm
Max Torque	104 Nm / 77 ft-lb @ 5, 000 rpm
Frame	Aluminum beam perimeter
Front Suspension	43 mm
Front Brakes	Twin 320 mm floating discs, 4 piston calipers
Seat Height	805 mm
Dry Weight	210 kg
Fuel Tank Capacity	20 liters
