Maintenance and Adjustment
the twist grip end of the cable. Tighten the
locknut.
With the throttle fully closed, ensure that
there is 2 - 3 mm of free play in the 'closing'
cable at the throttle cam attached to the
throttle bodies. If necessary, adjust in the
same way as the 'opening' cable until
2 - 3 mm of play is present.
Refit the fuel tank and airbox.
Reconnect the battery, positive (red) lead first.
Refit the seats.
Check that the throttle opens smoothly,
without undue force and that it closes without
sticking.
Ride carefully to your nearest authorised
Triumph dealer and have him check the
throttle system thoroughly before riding
again.

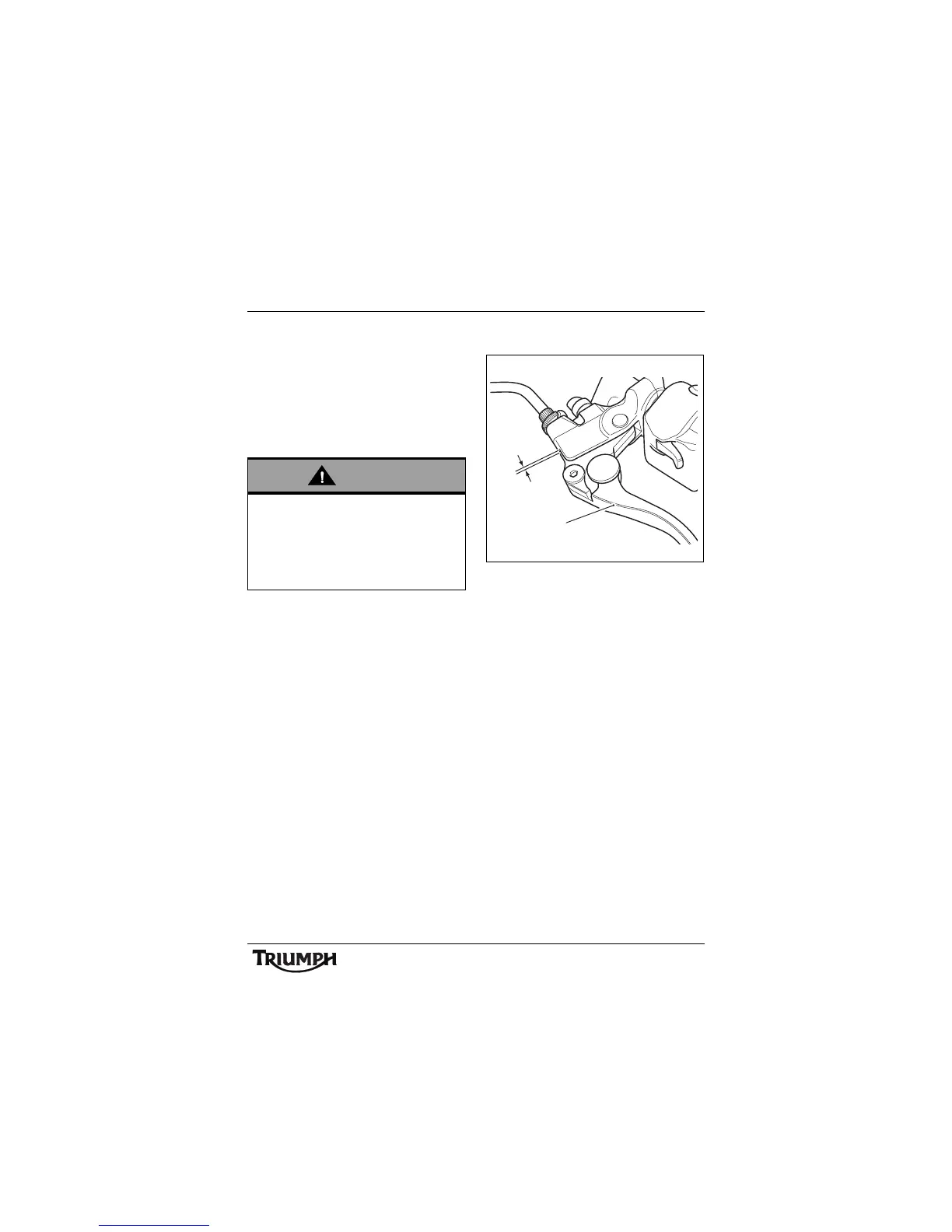

Clutch
1. C l u t c h l e v e r
2. 2 - 3 mm
The motorcycle is equipped with a
cable-operated clutch.
If the clutch lever has excessive free play, the
clutch may not disengage fully. This will cause
difficulty in changing gear and selecting
neutral. This may cause the engine to stall
and make the motorcycle difficult to control.
Conversely, if the clutch lever has insufficient
free play the clutch may not engage fully,
causing the clutch to slip, which will reduce
performance and cause premature clutch
wear.
Clutch lever free play must be checked in
accordance with scheduled maintenance
requirements.
Warning
Ensure that all the adjuster locknuts of all
cables are tightened, as a loose locknut
could result in a sticking throttle.
An incorrectly adjusted, sticking or stuck
throttle can lead to loss of motorcycle
control and an accident.
ccpe
2
1

Triumph Sprint ST Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Rear Suspension	Monoshock with adjustable preload and rebound damping
Rear Brakes	Single 255mm disc, 2-piston caliper
Front Wheel	17 x 3.5 in
Rear Wheel	17 x 5.5 in
Front Tyre	120/70 ZR 17
Rear Tyre	180/55 ZR 17
Max Power	125 PS / 123 bhp / 92 kW @ 9, 250 rpm
Max Torque	104 Nm / 77 ft-lb @ 5, 000 rpm
Frame	Aluminum beam perimeter
Front Suspension	43 mm
Front Brakes	Twin 320 mm floating discs, 4 piston calipers
Seat Height	805 mm
Dry Weight	210 kg
Fuel Tank Capacity	20 liters
