Triumph Sprint ST Handbook

101
Maintenance and Adjustment

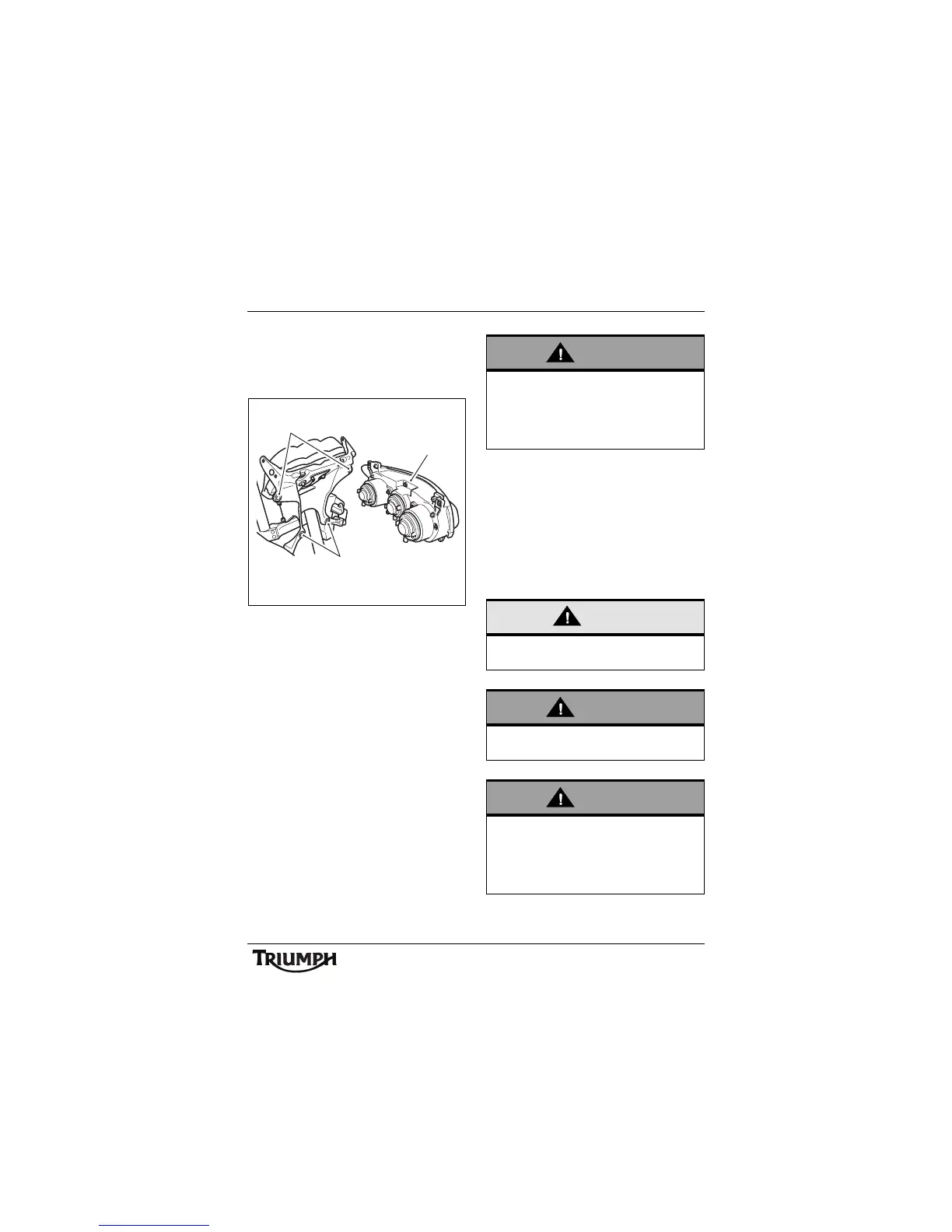

Main Beam Bulb Replacement
It is necessary to remove the cockpit and the
complete headlight unit when bulb
replacement becomes necessary.
1. Headlight unit
2. Side fixing
3. Centre fixing
To replace a main beam bulb:
Remove the seat.
Disconnect the battery, negative (black) lead
first.
Remove the cockpit.
Unscrew the nuts securing the headlight unit
to the support bracket and release the unit.
Remove the rubber cover and disconnect the
multi-pin electrical connector from the bulb
to be replaced.
Detach the wire bulb retainer from the clip. It
is not necessary to undo the screw.
Remove the bulb from the headlight unit.
Installation is the reverse of the removal
procedure.
Position Lamp Bulb Replacement
The position lamp is fitted within the
headlight aperture.
Carefully remove the rubber bulb holder
from the back of the position lamp and
detach the bulb.
Installation is the reverse of the removal
procedure.
ccpn
1
2
3
Warning
The bulbs become hot during use. Always
allow sufficient time for the bulbs to cool
before handling. Avoid touching the glass
part of the bulb. If the glass is touched or
gets dirty, clean with alcohol before re-use.
Caution
Ensure that the bulb holder is correctly
fitted to prevent water ingress.
Warning
When reconnecting the battery, connect
the positive (red) lead first.
Warning
Do not reconnect the battery until the
assembly process has been completed.
Premature battery reconnection could
result in ignition of the battery gases
causing risk of injury.

Triumph Sprint ST Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Rear Suspension	Monoshock with adjustable preload and rebound damping
Rear Brakes	Single 255mm disc, 2-piston caliper
Front Wheel	17 x 3.5 in
Rear Wheel	17 x 5.5 in
Front Tyre	120/70 ZR 17
Rear Tyre	180/55 ZR 17
Max Power	125 PS / 123 bhp / 92 kW @ 9, 250 rpm
Max Torque	104 Nm / 77 ft-lb @ 5, 000 rpm
Frame	Aluminum beam perimeter
Front Suspension	43 mm
Front Brakes	Twin 320 mm floating discs, 4 piston calipers
Seat Height	805 mm
Dry Weight	210 kg
Fuel Tank Capacity	20 liters
