Triumph Sprint ST Handbook

12

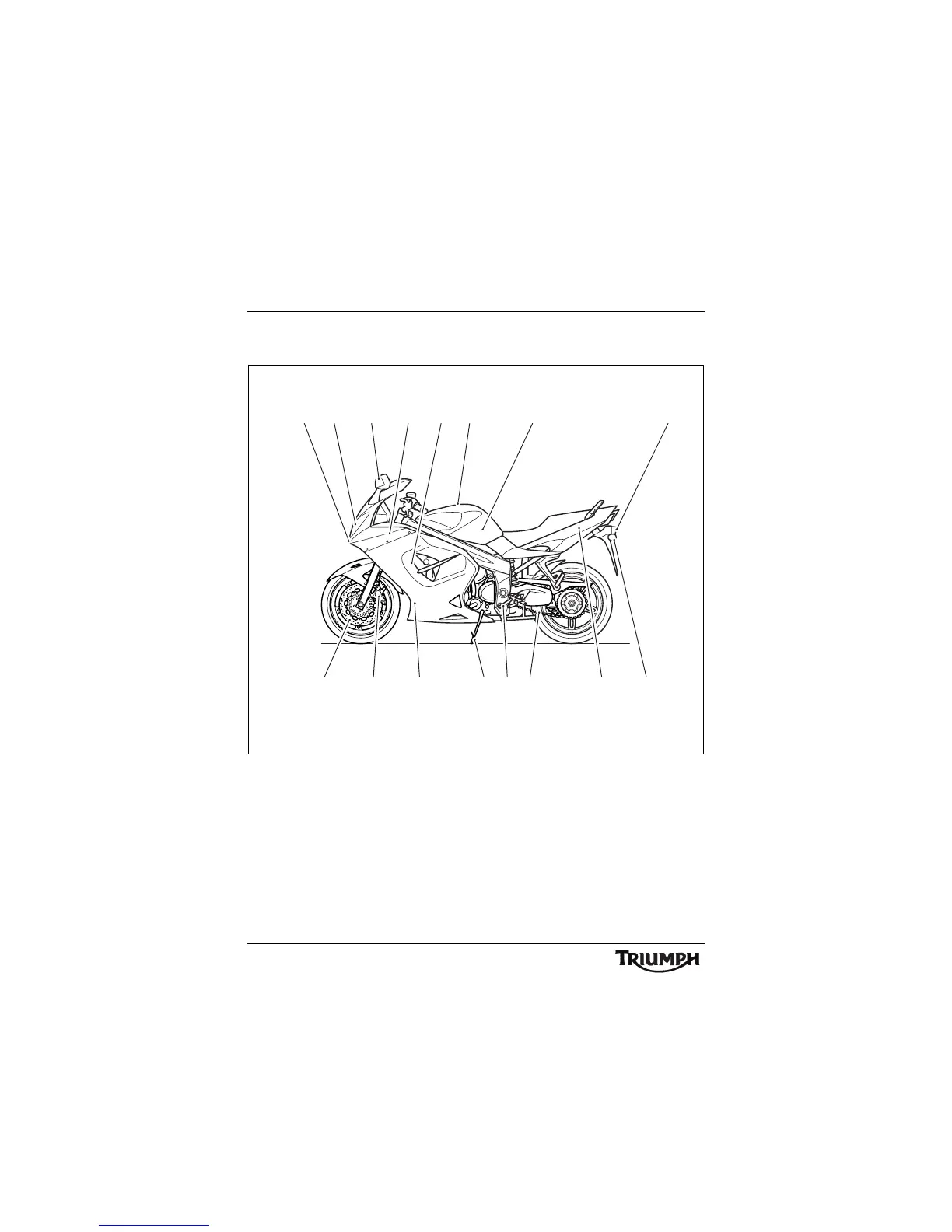

Parts Identification
PARTS IDENTIFICATION
1. Front indicator
2. Headlight
3. Position lamp
4. Rear light
5. Radiator/Coolant pressure cap
6. Oil cooler
7. Drive chain
8. Side stand
9. Rear indicator
10.Gear-change pedal
11. Front brake disc
12.Front brake caliper
13 . F u e l t a n k
14.Fuel filler cap
15.Coolant expansion tank
16 . S i l e n c er
ccmq
52 14
16
1 13
15
4
7108 911 12 6
3

Triumph Sprint ST Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Rear Suspension	Monoshock with adjustable preload and rebound damping
Rear Brakes	Single 255mm disc, 2-piston caliper
Front Wheel	17 x 3.5 in
Rear Wheel	17 x 5.5 in
Front Tyre	120/70 ZR 17
Rear Tyre	180/55 ZR 17
Max Power	125 PS / 123 bhp / 92 kW @ 9, 250 rpm
Max Torque	104 Nm / 77 ft-lb @ 5, 000 rpm
Frame	Aluminum beam perimeter
Front Suspension	43 mm
Front Brakes	Twin 320 mm floating discs, 4 piston calipers
Seat Height	805 mm
Dry Weight	210 kg
Fuel Tank Capacity	20 liters
