Triumph Sprint ST Handbook

38
General Information

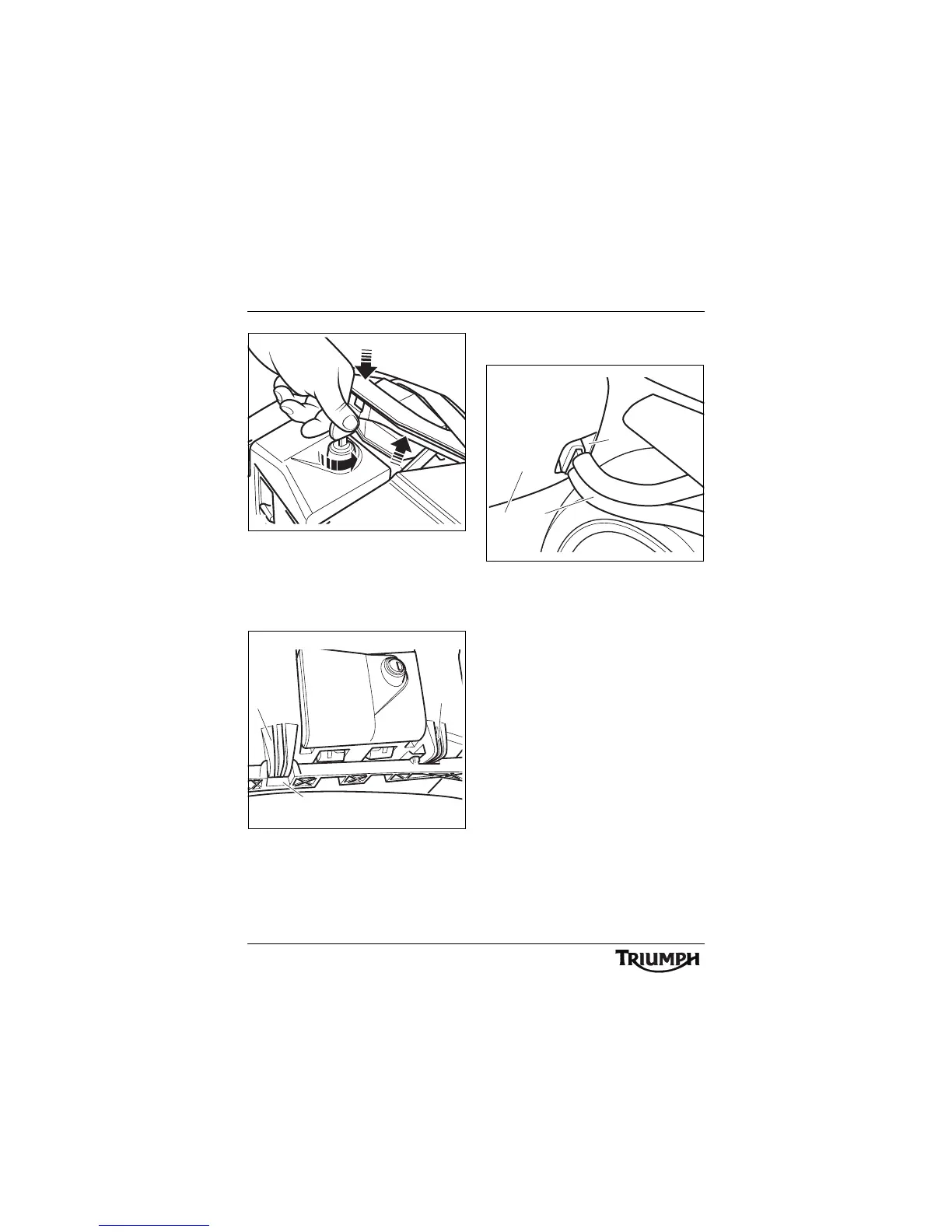

1. Carrying handle
Insert the key into the lock. Lightly press
down on the carrying handle and turn the
key anti-clockwise then release the carrying
handle. Lift the carrying handle to its fully
raised position.
1. Front fixed hook (pannier)
2. Front locating point (pannier rail)
3. Rear fixed hook
Position the pannier against the pannier rail
and engage the front fixed hook of the
pannier with the front locating point on the
rail. The rear fixed hook should be above the
pannier rail at this point.
1. Pa n n i e r
2. Locating cup
3. Locating bracket
Lower the rear fixed hook to the pannier rail
ensuring that the end of the locating bracket
fits into the locating cup moulded into the
side of the pannier.
Lock the pannier to the rail by turning and
holding the key anti-clockwise and at the
same time pressing the carrying handle to
the fully closed position. Turn the key to the
central LOCK position and remove it.
cddo1
1
2
3
o
1
3
2
cddr
2
3
1

Triumph Sprint ST Specifications

General

Engine Type	Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder
Displacement	1050cc
Bore x Stroke	79 x 71.4 mm
Compression Ratio	12.0:1
Fuel System	Multipoint sequential electronic fuel injection
Final Drive	X ring chain
Clutch	Wet, multi-plate
Gearbox	6-speed
Rear Suspension	Monoshock with adjustable preload and rebound damping
Rear Brakes	Single 255mm disc, 2-piston caliper
Front Wheel	17 x 3.5 in
Rear Wheel	17 x 5.5 in
Front Tyre	120/70 ZR 17
Rear Tyre	180/55 ZR 17
Max Power	125 PS / 123 bhp / 92 kW @ 9, 250 rpm
Max Torque	104 Nm / 77 ft-lb @ 5, 000 rpm
Frame	Aluminum beam perimeter
Front Suspension	43 mm
Front Brakes	Twin 320 mm floating discs, 4 piston calipers
Seat Height	805 mm
Dry Weight	210 kg
Fuel Tank Capacity	20 liters
