AWC708C PLUS Motion Control User Manual
WWW.SZTROCEN.COM
111
Gr9.00
00
Positive rolling side can be driven.
Gr9.01
00
Negative rolling side can be driven.
5. Schneider 23A High Speed Pulse Wiring Diagram

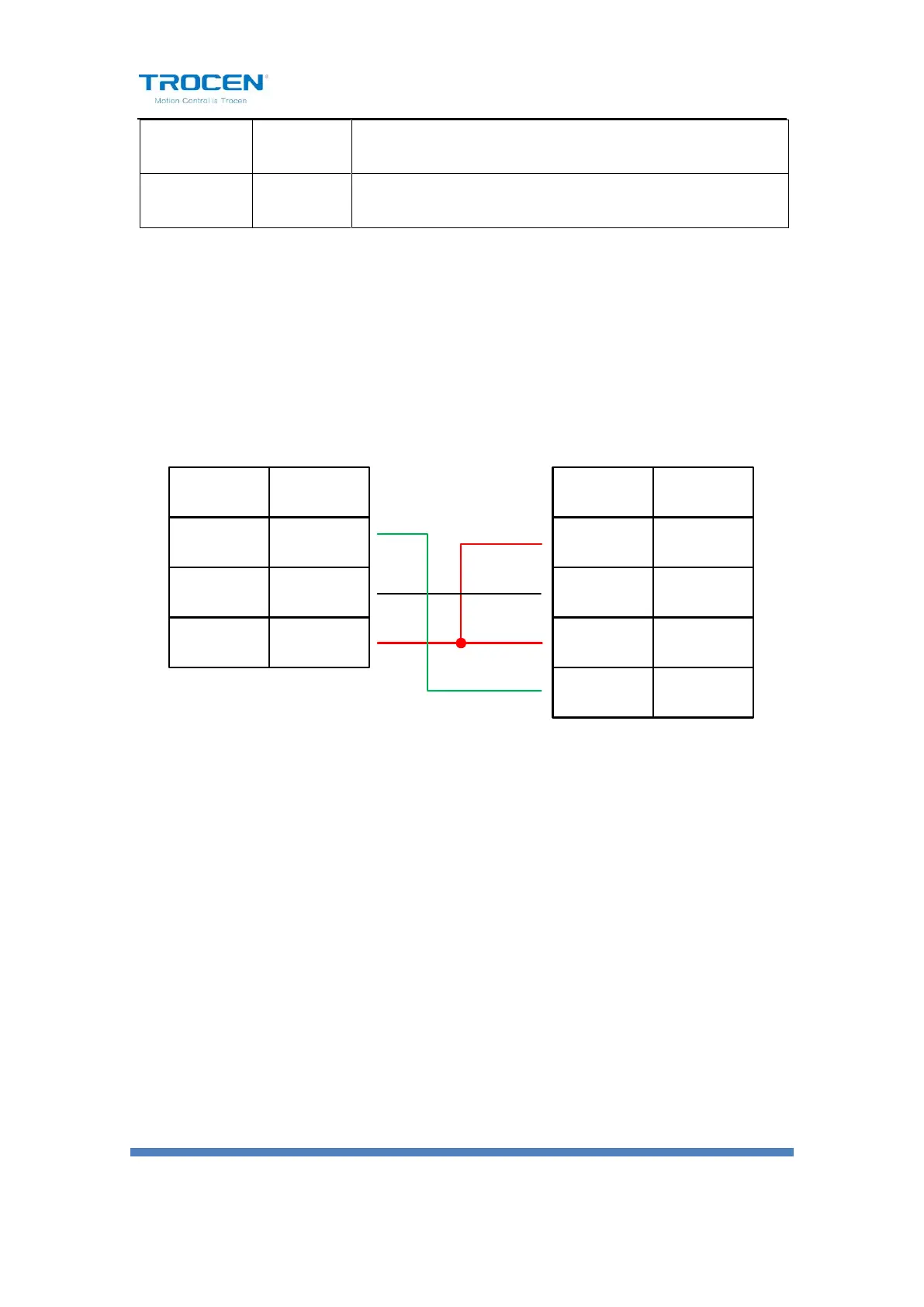

Figure 5-1 Schneider 23A High Speed Pulse Wiring Diagram
PIN
38
29
46
40
Signal
HPULSE
/HPULSE
HSIGN
/HSIGN
Signal
DIR
PUL
DC 5V
PIN
3
2
1
Schneider 23A-50P
Interface
AWC708C PLUS Servo
Control Interface
