12.IN
1
DC24V
Output DC voltage (24V)
2
IN5
Reserved
3
IN6
Reserved
4
GND
Power ground

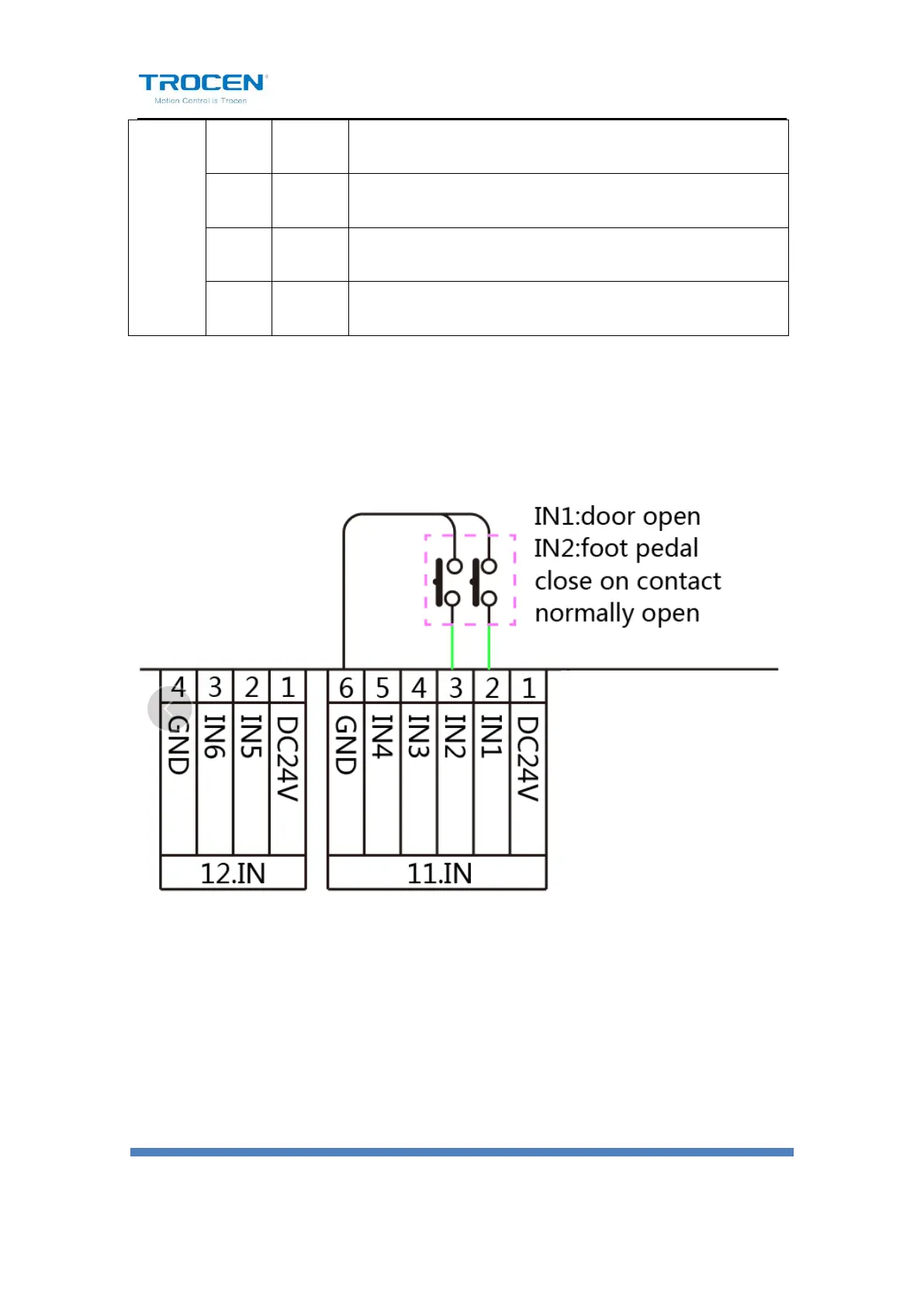

Wiring diagram of signal input:
Figure1-6-3 Wiring Diagram for Signal Input
1.6.2.4 Signal Output
There are two groups of output ports to supply power and control signals.
If you choose OUT2 (Blow when laser is power on), you must set the
parameters of【Blow Open Delay】or【Blow Close Delay】on the Common
