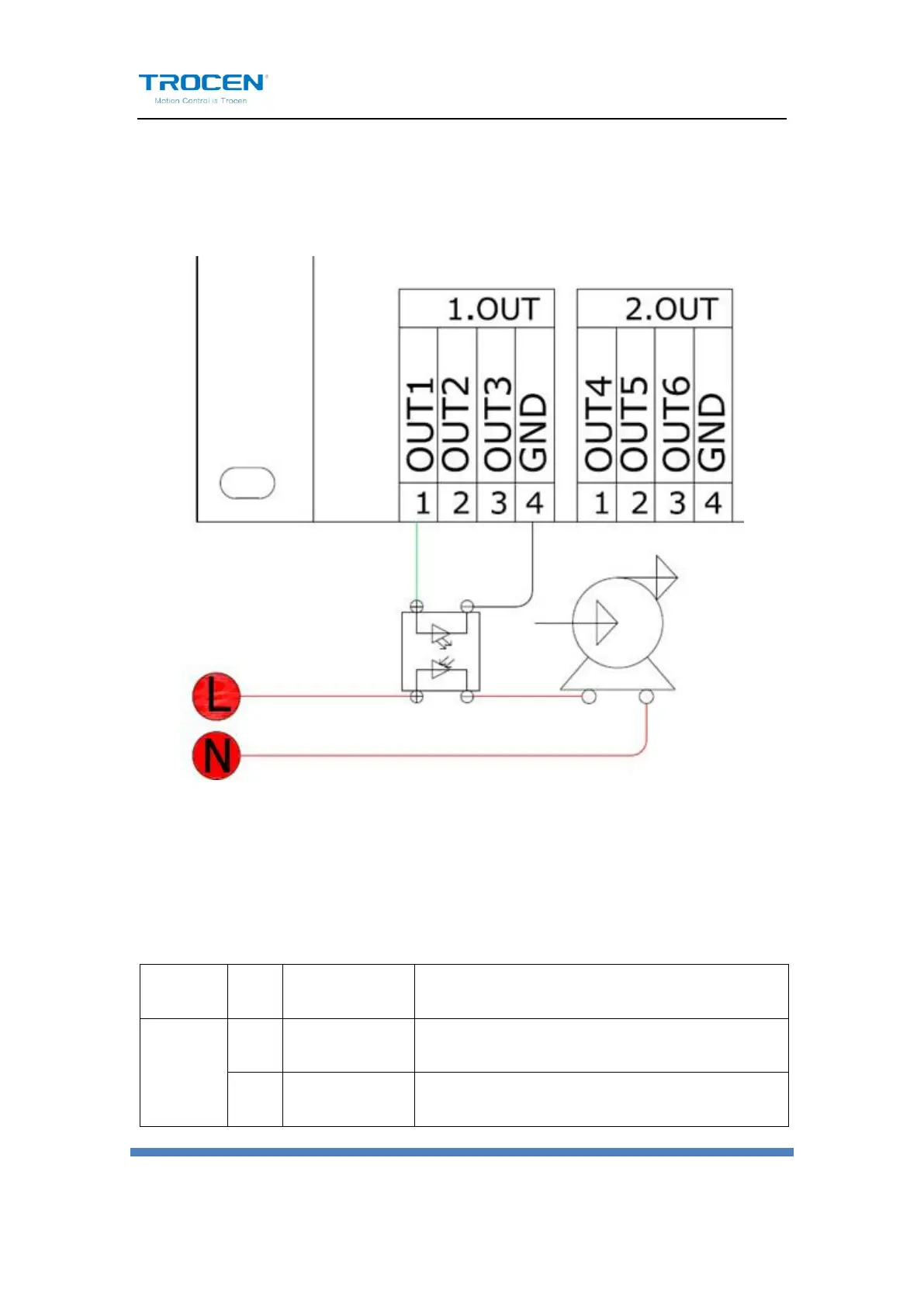

Output signals control laser blowing generally. The wiring diagram is
shown below (blow all the working time).
Figure1-6-4 Blowing Control Diagram
1.6.2.5 Laser Power Supply Port
The wiring board provides 4 groups of laser output control ports.
Table1-6-5 Laser Controller Output Instruction
PIN
Name
Instruction
3.Laser4
1
DC5V
Output DC voltage (5V).
2
WP
Water Protection.
