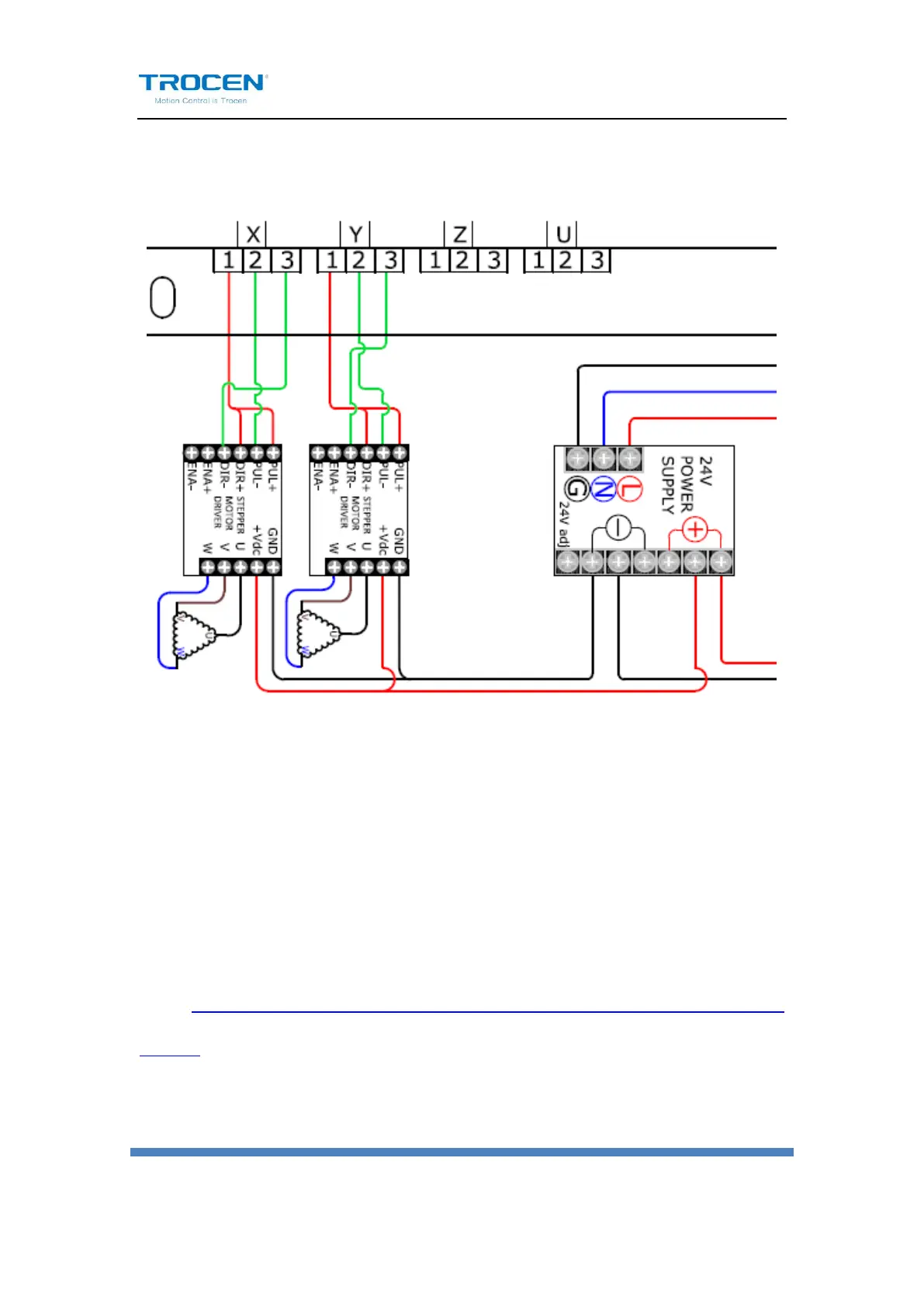

The diagram below shows the connection of step driver.
Figure1-6-7 Diagram of Driver Connection
1.6.2.7 Limit Signal
The wiring board provides 6-way sensor limit signal access. Each axis
supports maximum and minimum coordinate limit signal input. This
system supports working range limitation, so users do not need to install
hard limit sensor, just set the【Range】parameter on the Axis Parameters
page. More details about【Range】, please refer to the Chaper 3.6 of this
article.
