Pulse Count per Rotate = Pulse Number of Motor * (Number of Gears in Gear1 /
Number of Gears in Gear2)

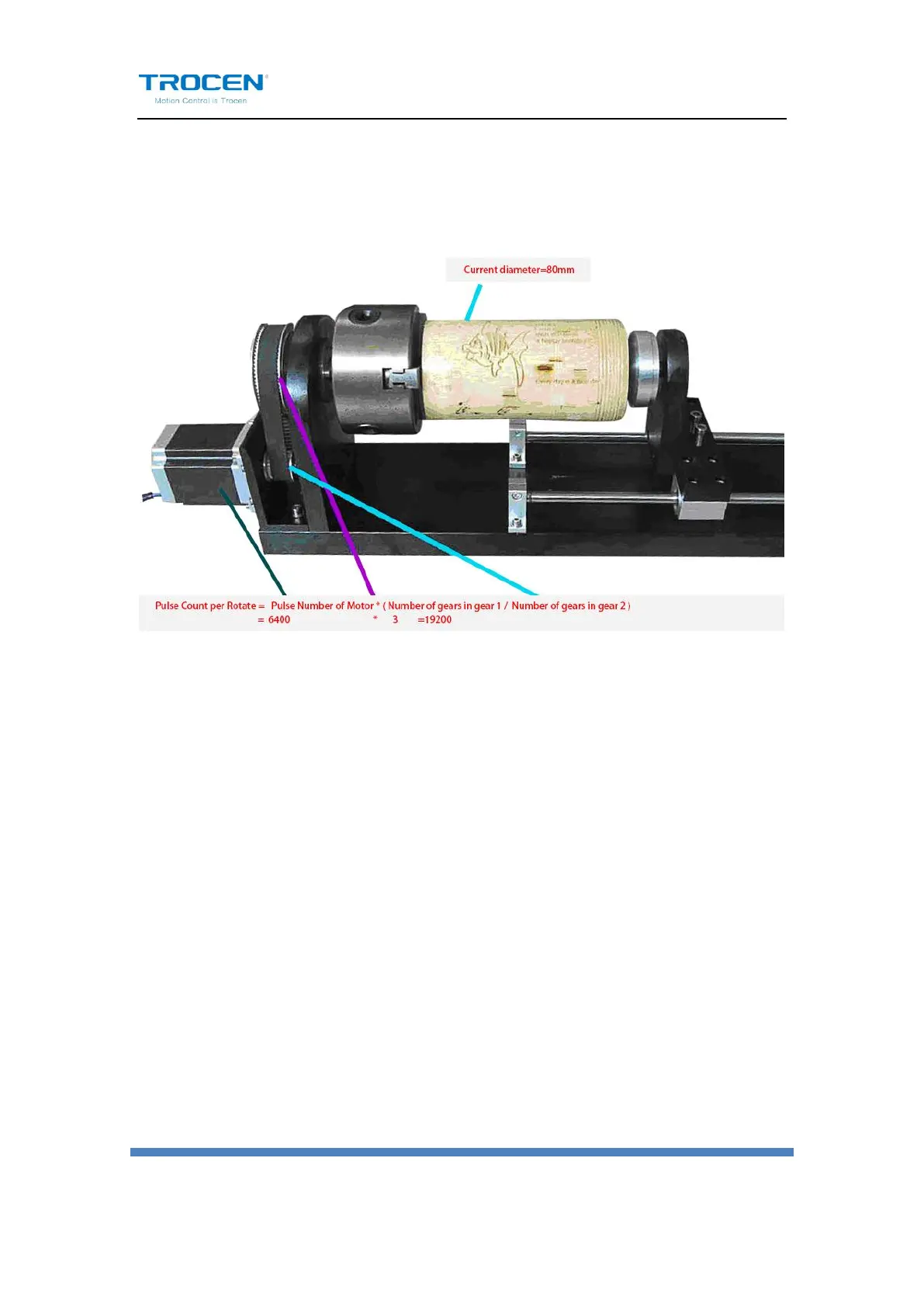

Figure6-7-10 Fixture Rotate Engraving
Users should adjust distance per pulse of rotary axis for roller type rotate
engraving & cutting (Pulse count per rotate is noneffective). Take X axis as
rotary axis as example.
1. Wrap a layer of paper around the roller.
2. In the computer software LaserCAD, draw A straight line section with
fixed length as “A” (less than the current cutting object girth).
3. Press【Start/Pause】key to cut the line on the paper.
4. Take the same length of the cut trace along the roller with one wool or
other convenient object, and measure the length of this wool segment
as “B” accurately with a ruler.
5. Enter the X Axis Parameters interface, move the cursor to【Distance
