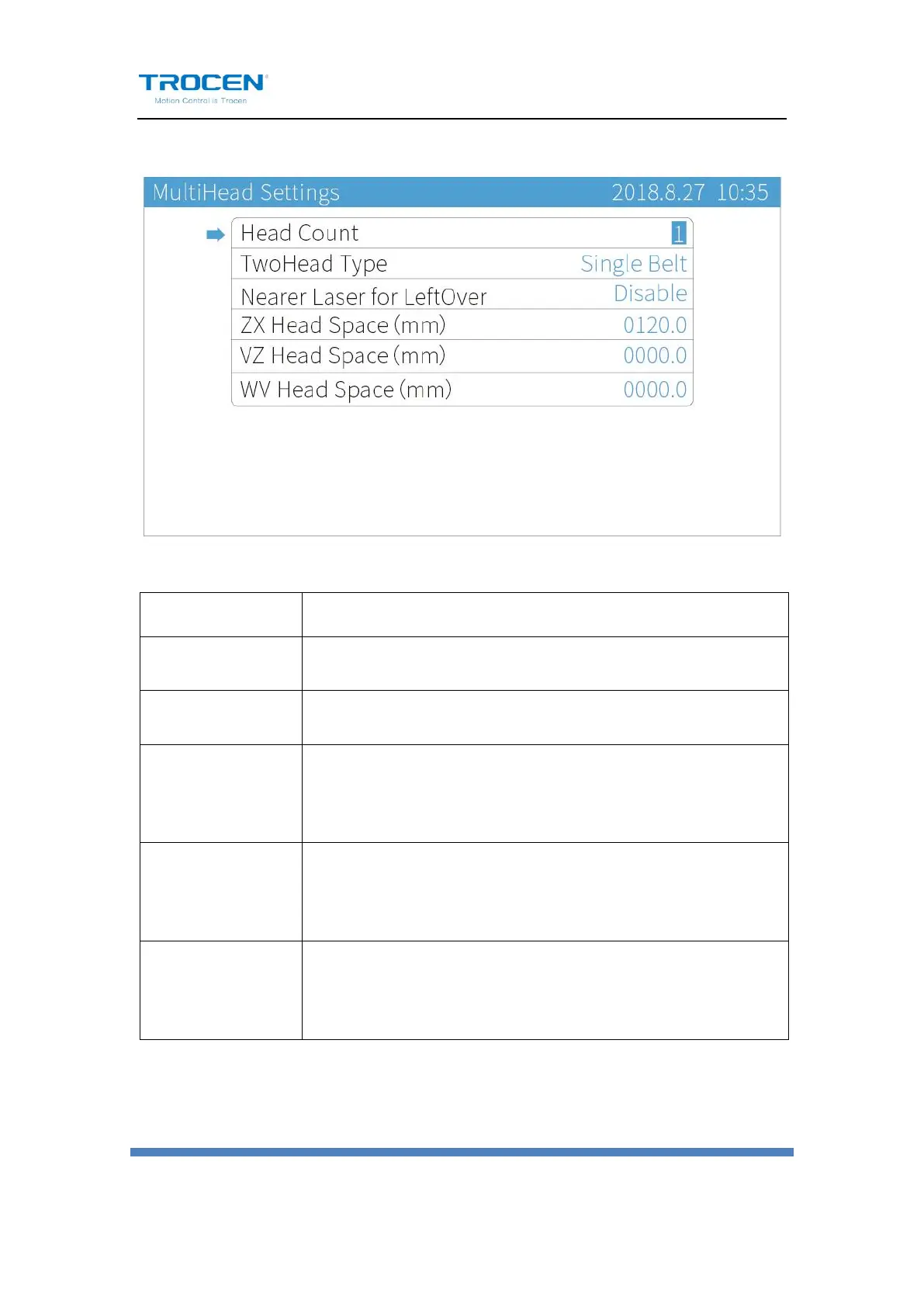

Figure7-6-1 MultiHead Interface
Table7-6-1MultiHead Instruction
Name
Instruction
Head Count
Set the head count, “1” or “2” or “3” or “4” for AWC708C PLUS.
TwoHead Type
Single belt or double belt.
Nearer Laser for
LeftOver
Enable or disable the function.
ZX Head Space
(mm)
The distance between Z and X axis.
VZ Head Space
(mm)
The distance between V and Z axis.
