Trotec Speedy Series User Manual

- 14 -

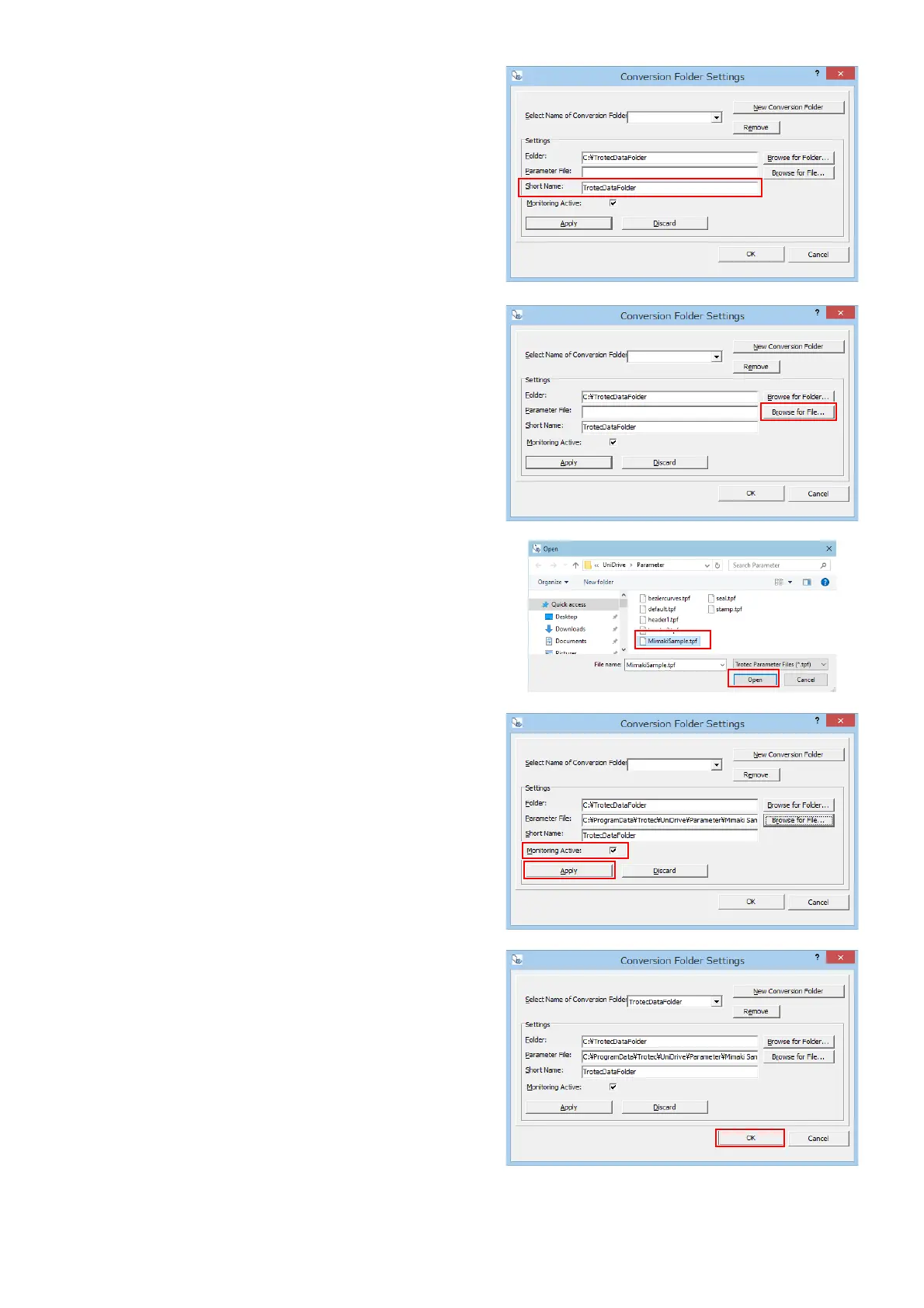

6. The conversion folder name is displayed
in [Short Name].
• This is the name shown in the [Select Name of
Conversion Folder] list. It is possible to change
this name.
7. Click the [Browse for File...] button to the
right of [Parameter File].
• Select the conversion folder loading conditions
(parameter file).
• The dialog to select the parameter file is dis-
played.
8. Select the cutting conditions parameter
file saved in "Creating a cutting conditions
parameter file (Trotec UniDrive )" (P.11)
and click [Open].
9. Confirm that the [Monitoring Active] check
box is checked and then click the [Apply]
button.
• When the same name as the [Short name] is dis-
played in [Select Name of Conversion Folder],
registration of the conversion folder is complete.
10. Click the [OK] button.

Trotec Speedy Series Specifications

General

Resolution	Up to 1000 dpi
Laser Type	CO2 laser
Work Area	Varies depending on model
Max. Workpiece Height	Varies depending on model
Laser Power	Varies by model
Software	JobControl
Supported File Formats	AI, BMP, PDF, DXF, PLT, JPG, GIF, TIFF, PNG
Cooling	Air or Water (depending on laser power)
Power Supply	50/60 Hz
