Trotec Speedy Series User Manual

- 11 -
Creating a cutting conditions parameter file (Trotec UniDrive )

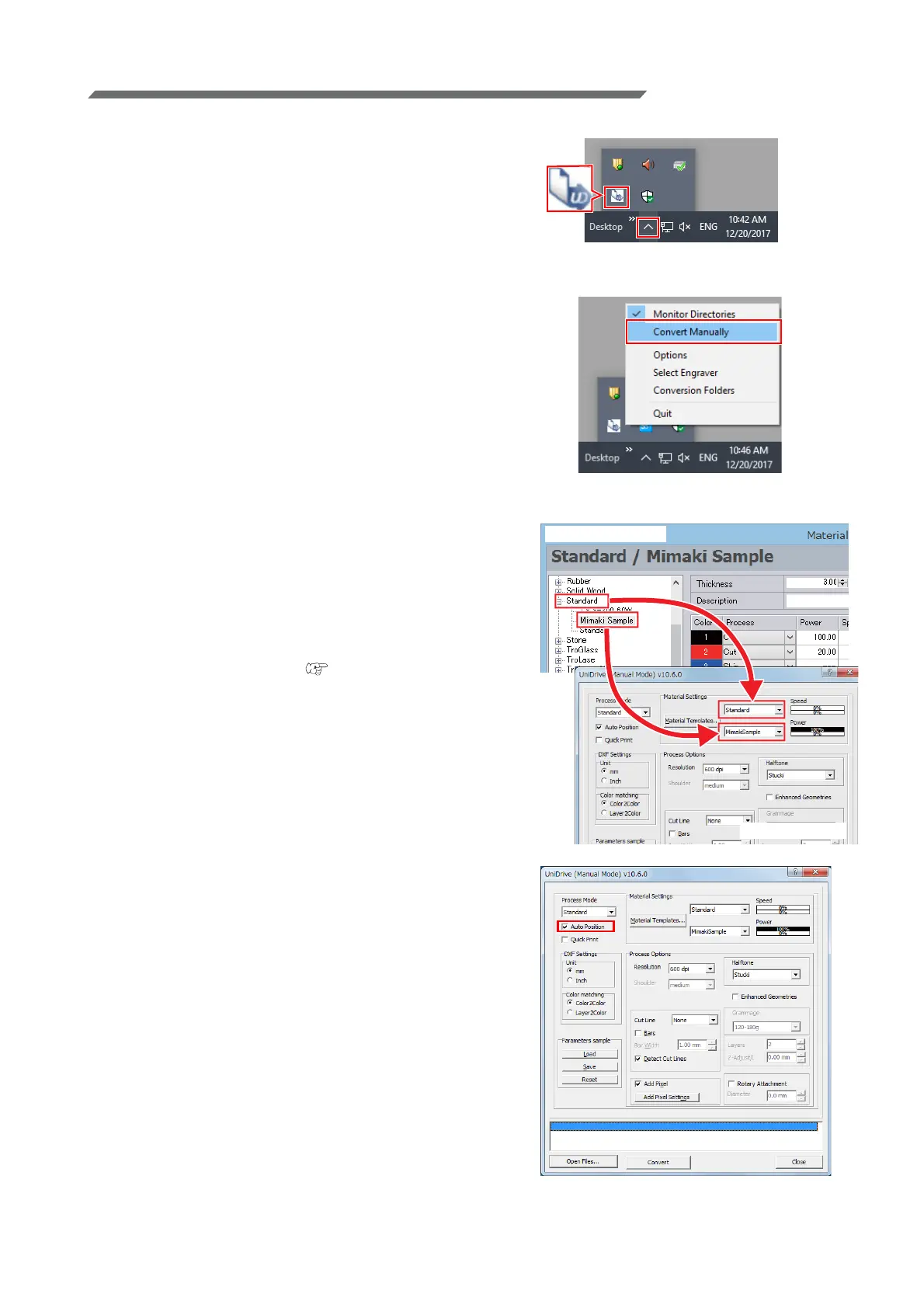

1. Launch Trotec UniDrive.
• The Trotec UniDrive icon is displayed in the task
tray to the right of the Windows taskbar.
2. Right-click the Trotec UniDrive icon dis-
played in the task tray to the right of the
taskbar.
• The Trotec UniDrive menu will come up.
3. Select the [Convert Manually] menu
option.
• The [UniDrive (Manual Mode)] dialog is dis-
played.
4. Create a cutting conditions parameter
file.
• Associate the material template (laser cutting
conditions) that was set using Trotec Job Control
with the parameter file.
(1) Select the material.
• Please select the material created using Tro-
tec JobControl. ( P.10 "Register the new
material.")
In the upper drop-down list, select the mate-
rial group. In the lower drop-down list, select
the material template.
(2) Check or uncheck the [Auto Position] check
box.
• For the example in this document, please
check this box.
Trotec JobControl
Trotec UniDrive

Trotec Speedy Series Specifications

General

Resolution	Up to 1000 dpi
Laser Type	CO2 laser
Work Area	Varies depending on model
Max. Workpiece Height	Varies depending on model
Laser Power	Varies by model
Software	JobControl
Supported File Formats	AI, BMP, PDF, DXF, PLT, JPG, GIF, TIFF, PNG
Cooling	Air or Water (depending on laser power)
Power Supply	50/60 Hz
