Manual output of data sent to Trotec JobControl

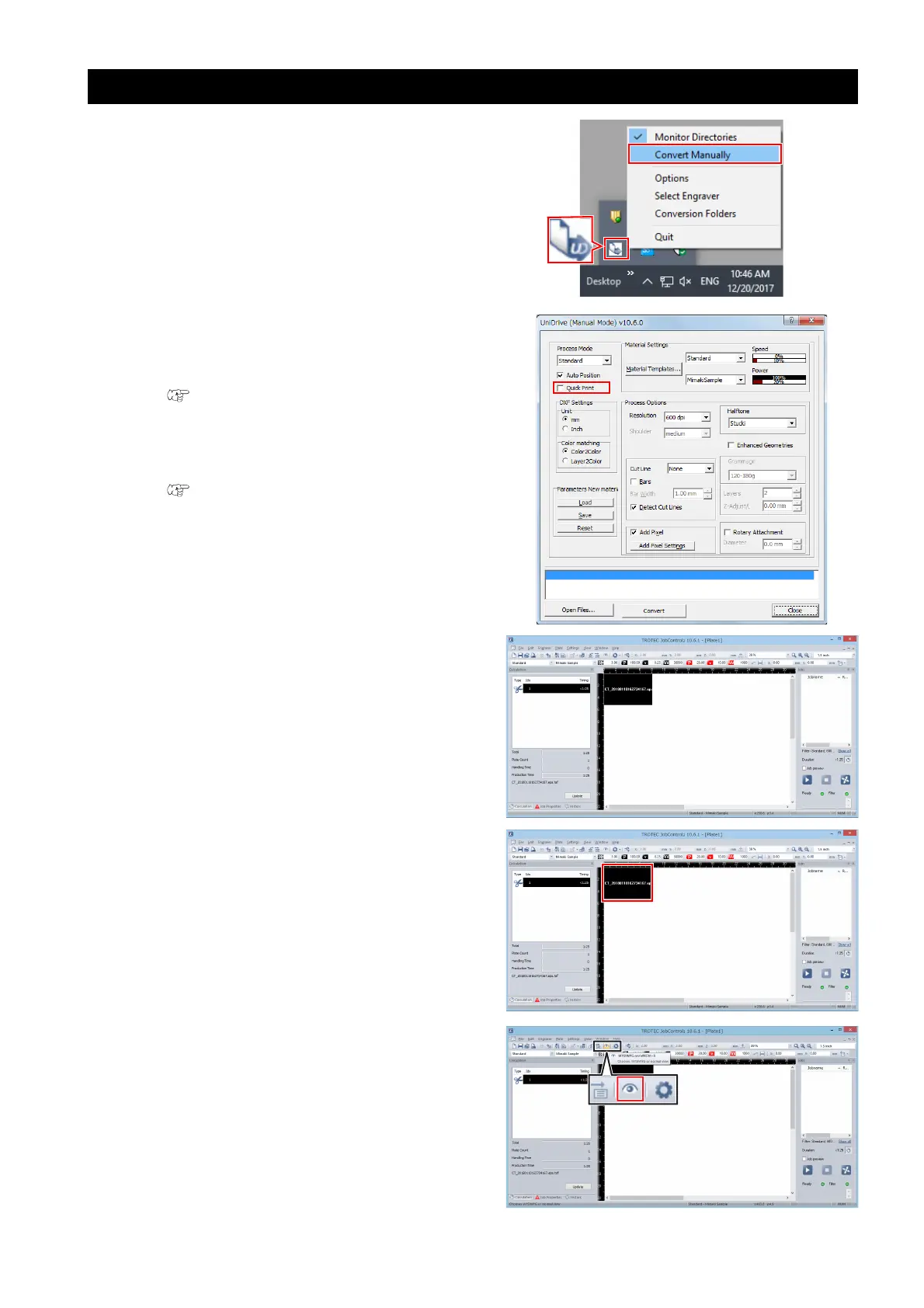

1. Select the Trotec UniDrive [Convert Man-
ually] menu.
• The [UniDrive (Manual Mode)] dialog is dis-
played.
2. Uncheck the [Quick Print] check box.
3. Save the settings in a parameter file.
( P.11 "Create a cutting conditions
parameter file."Step.(6) to Step.(8))
4. Output the cut data from FineCut.
( P.21 "Laser cutting"Step.3 to Step.6)
5. The cut data is automatically loaded by
Trotec Job Control.
6. Click the loaded data to select it.
7. Click the [WYSIWYG on/off] icon.
• The system will enter Cut Line display mode.
8. Set the media on the Trotec Speedy
Laser Engraver.
9. Adjust the height.

Trotec Speedy Series Specifications

General

Resolution	Up to 1000 dpi
Laser Type	CO2 laser
Work Area	Varies depending on model
Max. Workpiece Height	Varies depending on model
Laser Power	Varies by model
Software	JobControl
Supported File Formats	AI, BMP, PDF, DXF, PLT, JPG, GIF, TIFF, PNG
Cooling	Air or Water (depending on laser power)
Power Supply	50/60 Hz
