Trotec Laser Cut
The cut data is transmitted from FineCut to Trotec JobControl and then laser cutting is performed by the Tro-
tec Speedy Laser Engravers (100/300/360/400).
This document covers the basic procedure for using FineCut 8 and RasterLink to print with a printer manufac-
tured by MIMAKI ENGINEERING CO., LTD. (hereinafter referred to as a "Mimaki printer") and carry out laser
cutting with the Trotec Speedy Laser Engraver. The following example shows the case when the FineCut and
Trotec software is installed on the LaserCut PC and the RasterLink software is installed on the RasterLink PC.
• Trotec Laser Cut procedure (when laser cutting is performed automatically according to out-
put from FineCut).
*1. FineCut is compatible with Trotec Speedy Laser Engravers 100/300/360/400 laser engraving ma-
chines.

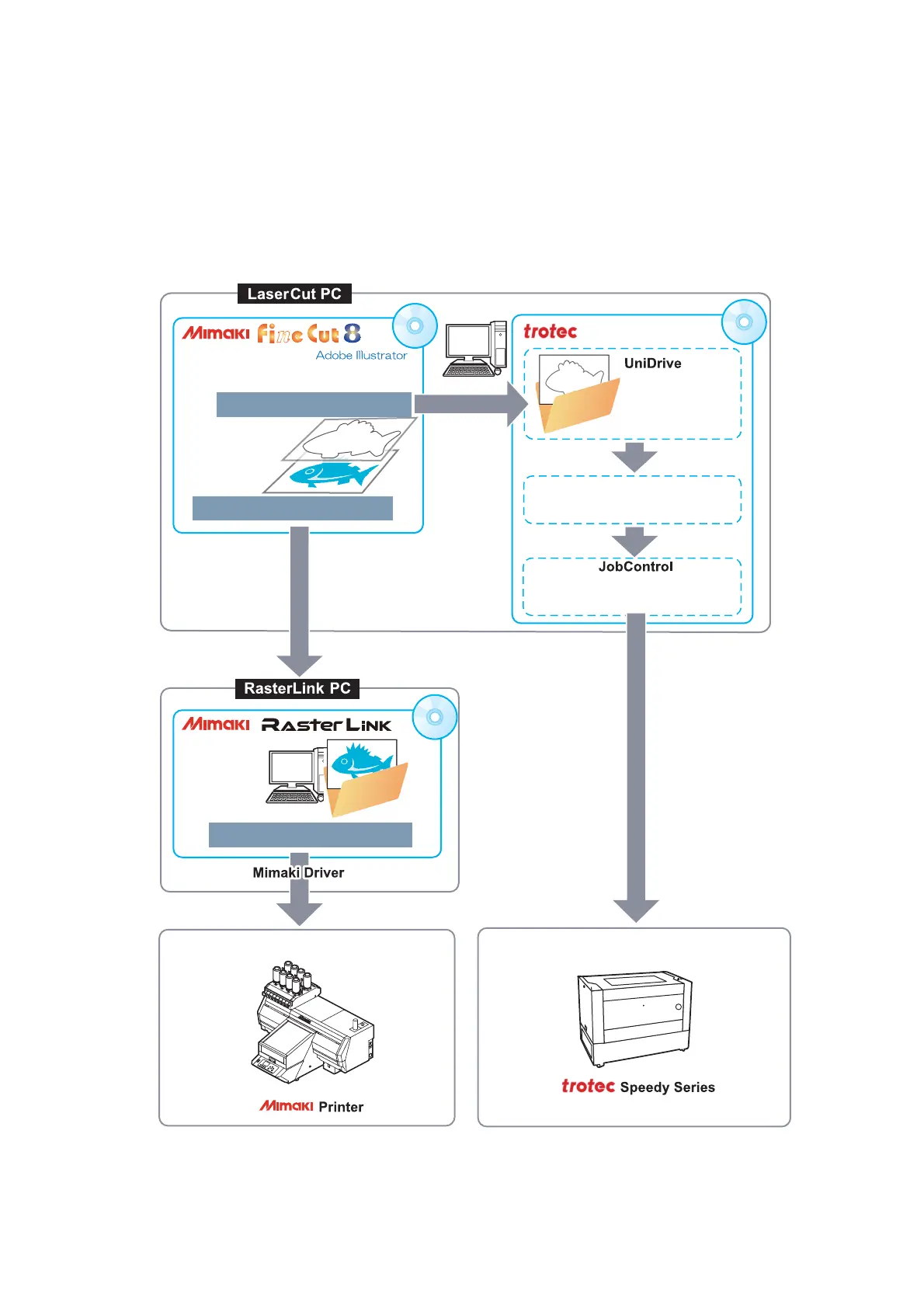

Engraver(PrinterDriver)
100/300/360/400
1. Transmission of print data (P. 20 )
Hot folder
Data creation, etc.
Laser Cutting
Printing
2. Output of print data (P. 20)
3. Transmission of cut data
Auto
*1
Auto
When UniDrive
Quick Print is ON
Auto
Conversion
folder
Image quality
adjustment,
color adjustment,
etc.
File conversion
Setting output
conditions
Setting cutting conditions
Laser engraving machine control, etc.

Trotec Speedy Series Specifications

General

Resolution	Up to 1000 dpi
Laser Type	CO2 laser
Work Area	Varies depending on model
Max. Workpiece Height	Varies depending on model
Laser Power	Varies by model
Software	JobControl
Supported File Formats	AI, BMP, PDF, DXF, PLT, JPG, GIF, TIFF, PNG
Cooling	Air or Water (depending on laser power)
Power Supply	50/60 Hz
