Trotec Speedy Series User Manual

- 27 -

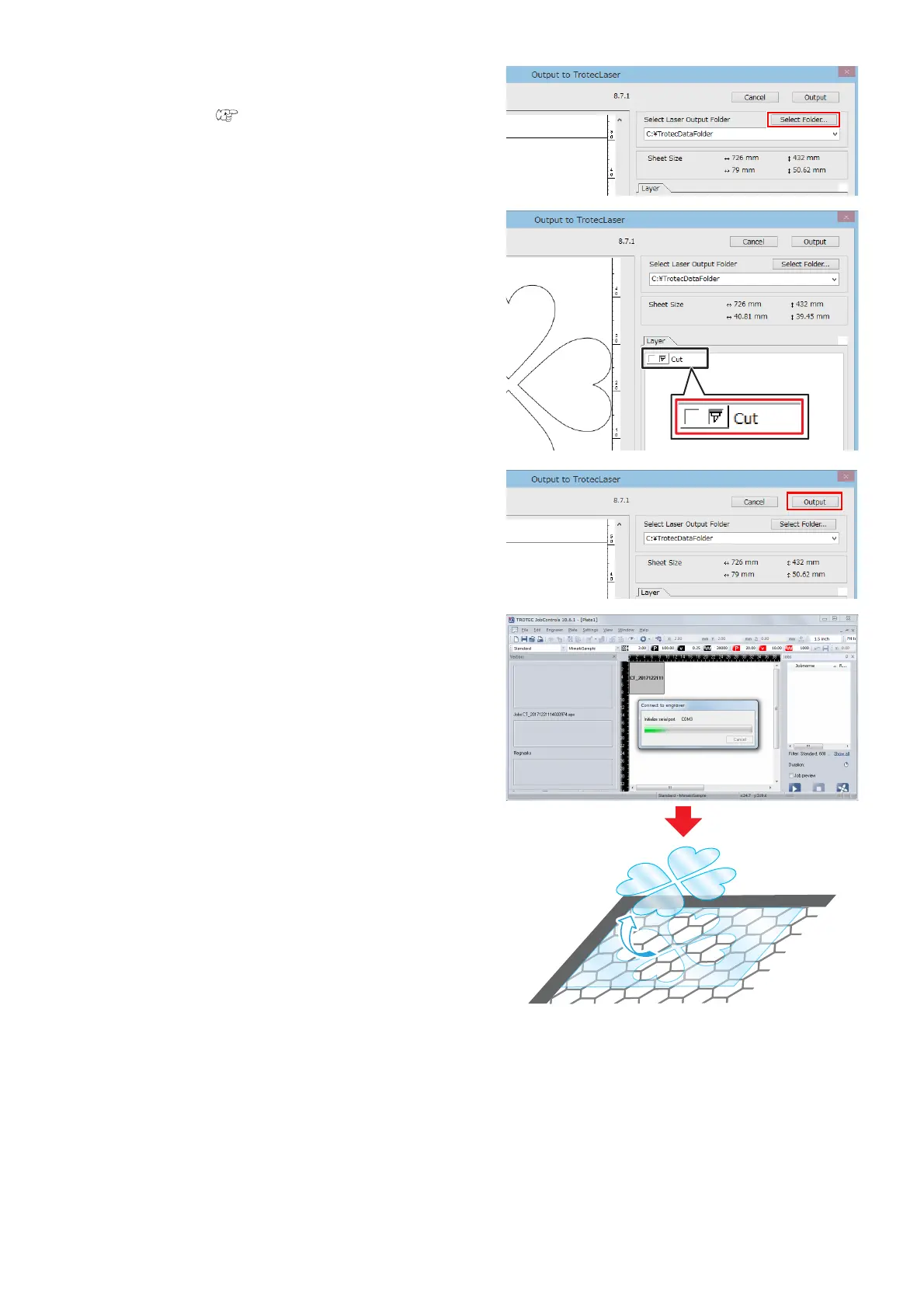

7. Set the laser output folder.
• Select the conversion folder set with Trotec Uni-
Drive. ( P.13 "Associate the conversion folder
with the cutting conditions parameter file (Trotec
UniDrive)")
8. On the [Layer] tab, make sure that the
cut mark is displayed on the cut layer.
9. Click the [Output] button.
10. The cut data is automatically loaded by
Trotec Job Control and then laser cutting
is performed.

Trotec Speedy Series Specifications

General

Resolution	Up to 1000 dpi
Laser Type	CO2 laser
Work Area	Varies depending on model
Max. Workpiece Height	Varies depending on model
Laser Power	Varies by model
Software	JobControl
Supported File Formats	AI, BMP, PDF, DXF, PLT, JPG, GIF, TIFF, PNG
Cooling	Air or Water (depending on laser power)
Power Supply	50/60 Hz
