KEYPAD

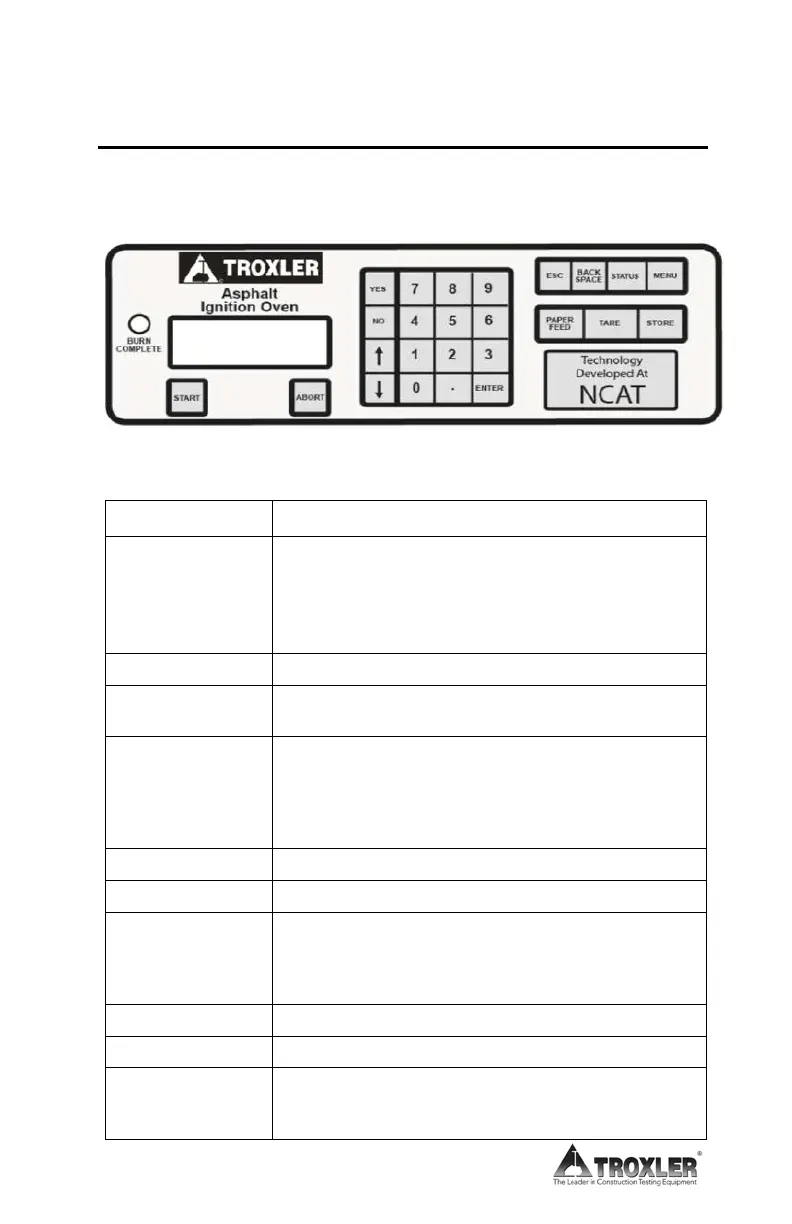

Figure 14 shows the layout of the oven keypad. The table lists
the function of each key.
Figure 14: Oven Keypad
KEY FUNCTION
ESC
Returns to the next higher-level menu without
updating or storing data. In response to yes/no
questions, has the same effect as pressing
NO
. If an error message is displayed, the
key is ignored.
Moves the cursor back one space.
STATUS
Displays system status information. Available only
when the default screen (see page 4-5) is
MENU
Accesses the MAIN MENU. Available only when
the default screen (see page 4-5) is displayed.
The functions available from the MAIN MENU are
described in Chapters 5 – 7. A menu map is
provided in Appendix B.
YES
Responds yes to yes/no questions.
Responds no to yes/no questions.
,
Scroll through menu options, view screens, or
through alphanumeric characters on input
screens. Also, can be used to adjust the contrast
of the display when the default screen is
Enter numbers and access menu options.
Enters a decimal point.
ENTER
Accepts data entry. Also prints burn cycle data
for a selected sample when viewing project data
(see page 7-5).
