Truma Mover smart M RS1 - Height compensation with low chassis kits

Mover smart M RS1Preparing for installation
22 EN
60040-00463 ∙ 00 ∙ 09/2023

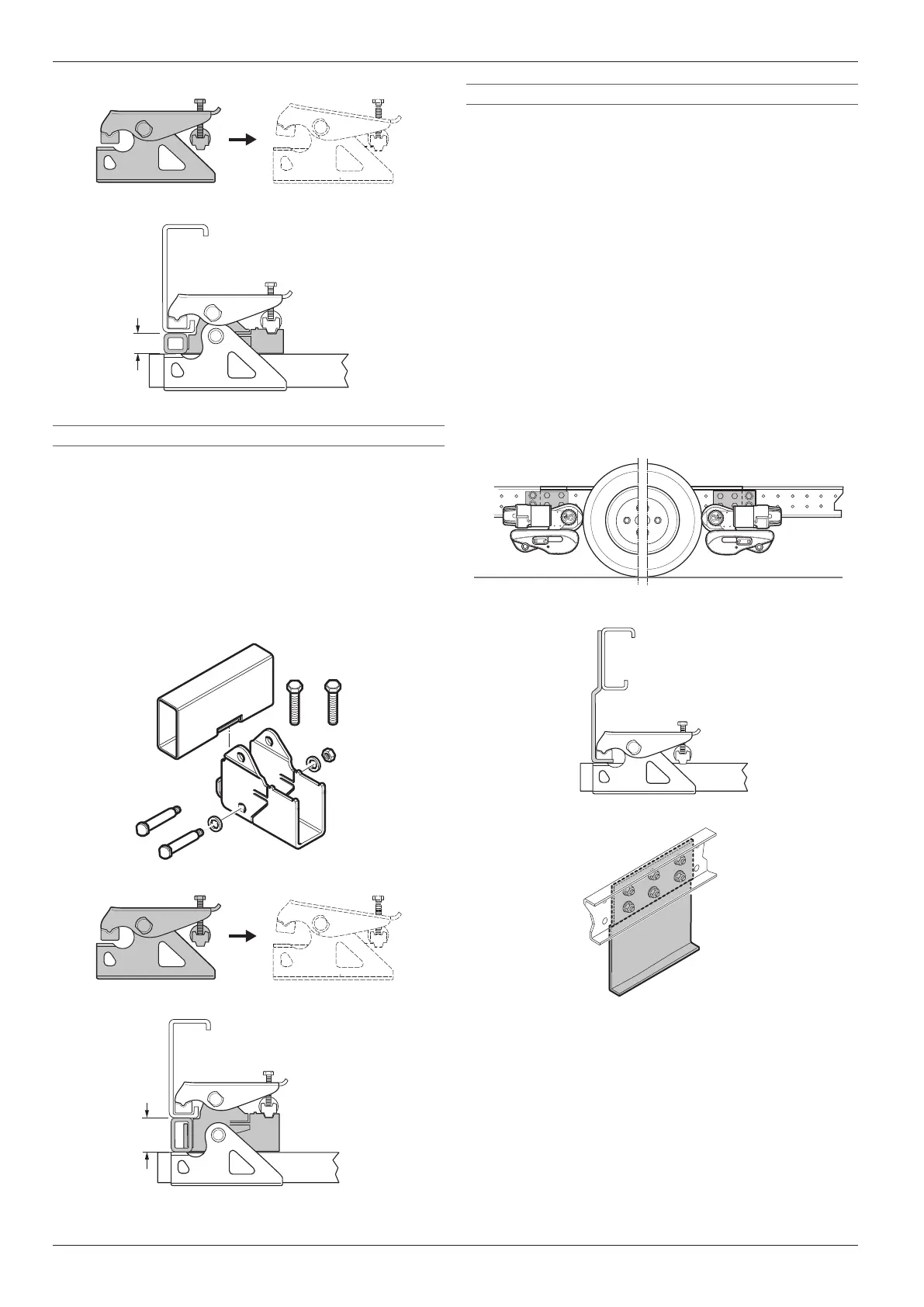

Fig� 6
a
Fig� 7
a 30mm
Spacer kit 60 mm
The spacer kit is used for height compensation of
60mm for standard L-profile or U-profile chassis�
•
For compensating for height on caravans with a
frame height of 110mm to less than 140 mm�
•
Can be installed in front of or behind the axle�
•
The spacer kit is also used for height compensation
when installing under the entrance step�
•
Part No� 60030-95100
Fig� 8
Fig� 9
a
Fig� 10
a 60mm
5.4.3 Height compensation with low chassis kits

If the low chassis kit is used in Germany, acceptance
by a vehicle expert is required�
Frame height less than 110mm

If the chassis has a frame height of less than
110mm, fit a low chassis kit to compensate�
Low chassis kit
Mounting plates for height compensation on standard
L-profile or U-profile chassis and/or for bridging struts
with the standard mounting system�
•
For compensating for height on caravans with a
frame height of less than 110mm and/or for bridg-
ing struts�
•
Can be installed in front of or behind the axle�
•
Part No� 60010-64900
Fig� 11
Fig� 12
Fig� 13
Low chassis kit, short
Mounting plates for height compensation on standard
L-profile or U-profile chassis�
•
For compensating for height on caravans with a
frame height of less than 110mm and for greater
ground clearance�
•
Can be installed in front of or behind the axle�
•
Part No� 60030-37600
