Truma Mover smart M RS1 User Manual

Mover smart M RS1 Preparing for installation
23EN
60040-00463 ∙ 00 ∙ 09/2023

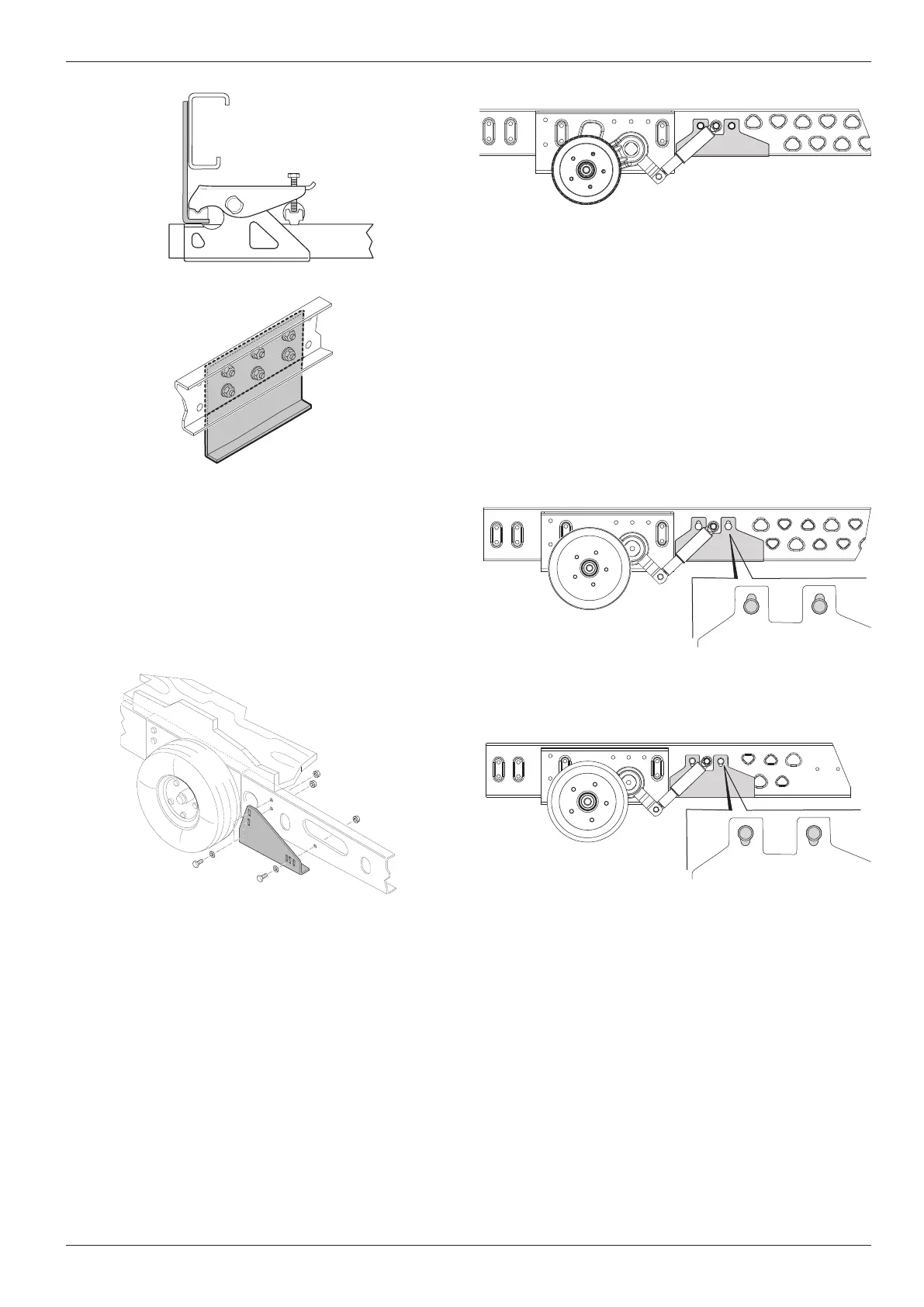

Fig� 14
Fig� 15
5.4.4 Adapter kit AL-KO Vario III / AV
•
Suitable for caravans up to 1800 kg with an AL-KO
Vario III / AV chassis with a frame thickness of less
than 2�8 mm�
•
Must be used for the AL-KO Vario III / AV chassis�
•
If an entrance step is present, the spacer kit 30 mm
or 60 mm can also be used�
•
Can only be installed behind the axle�
•
Part No� 60010-21500
Fig� 16
5.4.5 Adapter kit Tabbert/Dyonic chassis AB3
1500kg
•
Suitable for caravans up to 1500 kg with Knaus
Tabbert / Dyonic chassis AB3 with a frame thickness
of less than 2�8 mm�
•
Must be used for the Knaus Tabbert / Dyonic chas-
sis�
•
The 30mm or 60mm spacer kit can also be used�
•
Can only be installed in front of the axle�
•
Part No� 60031-00209
Fig� 17
5.4.6 Adapter kit Knaus Tabbert/Dyonic chassis
AB3/AB4 2000kg
•
Suitable for caravans up to 2000 kg with Knaus
Tabbert / Dyonic chassis AB3 / AB4 with a frame
thickness of less than 2�8 mm�
•
Must be used for the Knaus Tabbert / Dyonic chas-
sis�
•
The 30mm or 60mm spacer kit can also be used�
•
Can only be installed in front of the axle�
•
Part No� 60031-00291
Knaus Tabbert/Dyonic chassis AB3 2000kg
Fig� 18
Knaus Tabbert/Dyonic chassis AB4 2000kg
Fig� 19
5.4.7 Adapter kit AL-KO M short up to 1800kg
•
Suitable for caravans up to 1800 kg and an AL-KO M
chassis with adjustable beams�
•
Chassis is set to minimum length (frame completely
pushed together)�
•
For compensating overlapping frame edges�
•
Can only be installed in front of the axle�
•
Part No� 60031-00132
