TurboChef i3 Service Manual

APPENDIX - REPLACING OVEN COMPONENTS
A-3

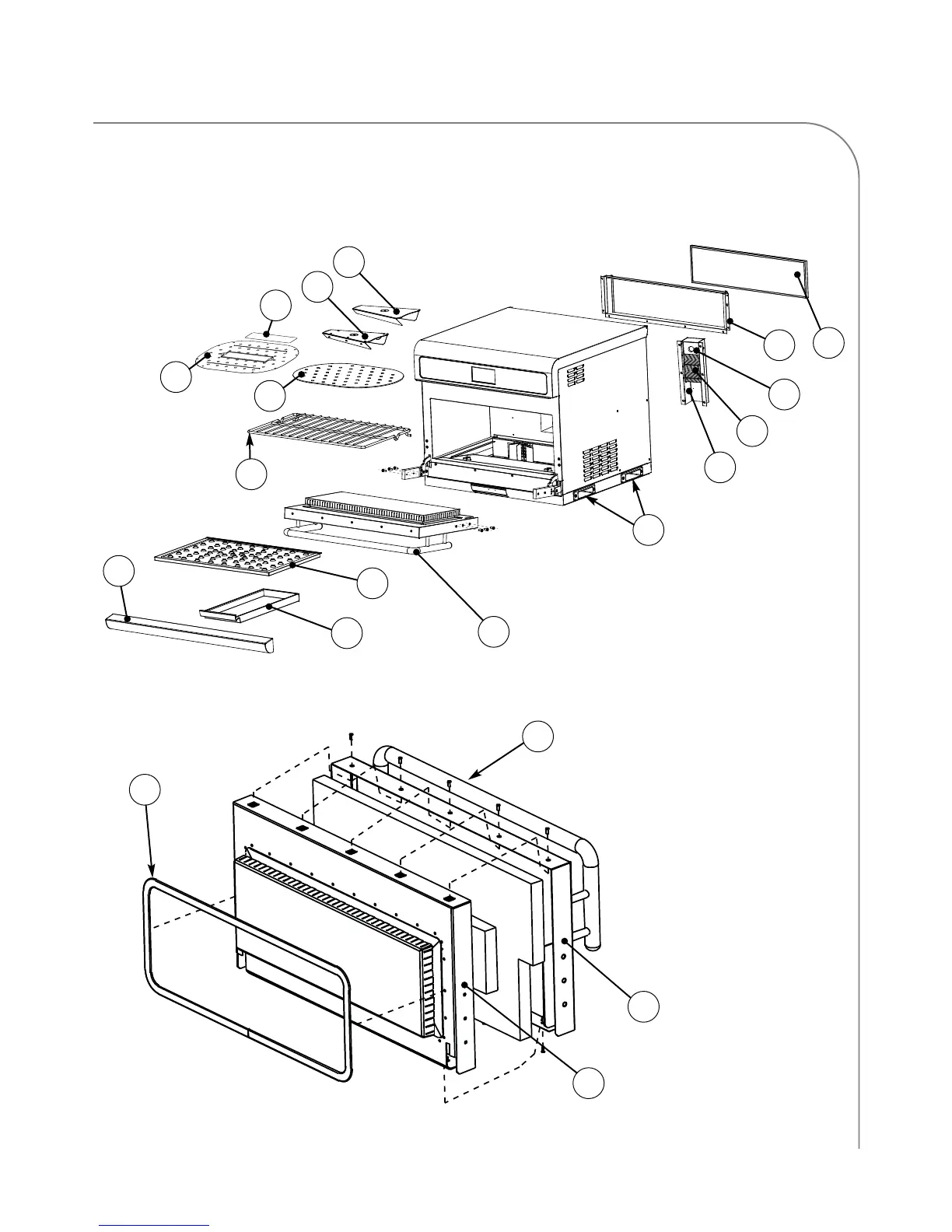

Figure A-1: No Cover Removal Required
5
9
13
8
18
7
6
14
10
17
1
Figure A-2: Door Assembly Detail
15
4
3
2
NOTE: Item 14 attached
to bottom jetplate
upon installation.
16
12
11
NOTE: The installation
of items 10, 11, 12, 16,
and 17 will vary based
on the oven’s serial
number. See the parts
list on page A-2 for
more information.
20
19

TurboChef i3 Specifications

General

Model	i3
Cooking Chamber	Stainless Steel
Cavity Dimensions	14.5 x 16 x 10 inches
Power Requirements	208-240V, 30A
Control Type	Touchscreen
