TurboChef Sota

APPENDIX  REPLACING OVEN COMPONENTS
A11

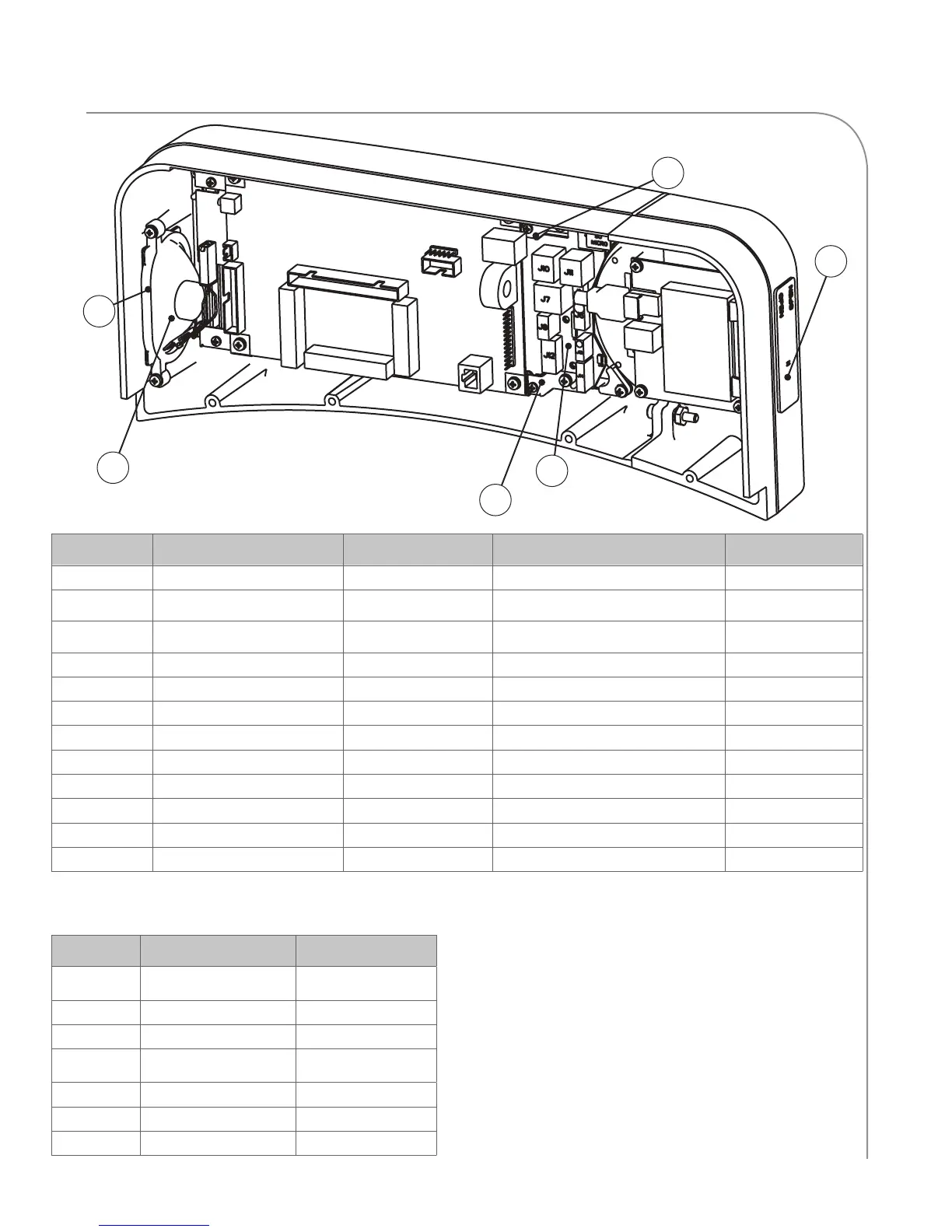

Figure A-17: Outer Shell Removed - Control Panel, Touch
Control Housing Color Table
17
Figure
Reference #
Item Description Item Part Number Fastener Description Fastener Part Number(s)
17 Assembly, Display, Phoenix, i1 CON-3023-X* Screw, #6-32 x 1/4 LG, PPH, SS 101565 (qty 4)
18 Bracket, Touch PCB Support, Bottom i1-9609
Nut, Keps Hex, #6-32, EXT Tooth, CRES
Washer, Lock, #6 EXT Tooth, CRES
102961 (qty 2)
102270 (qty 2)
19 Bracket, Touch PCB Support, Top i1-9608
Nut, Keps Hex, #6-32, EXT Tooth, CRES
Washer, Lock, #6 EXT Tooth, CRES
102961 (qty 2)
102270 (qty 2)
20 Cable, USB 2.0, 12” Extension 103193 None None
21 Cable, R485, Touch CON-7076 None None
22 Cable, Speaker, Touch CON-7077 None None
23 Control Board, SAGE Touch CON-3019 Screw, ##6-32 x 1/4, INT Tooth, PPH, SS 102910 (qty 4)
24 Cover, USB Port, i1 i1-9637 None None
25 SD Card, Programmed CON-7096 None None
26 Speaker Holder, i1 i1-9589 Screw, #6-32 x 3/8, Int Tooth, PPH, SS 102911 (qty 2)
27 Speaker, i1 CON-7048 None None
28 USB/Smart Card Reader CON-7075 Screw, #6-32 x 3/8, Int Tooth, PPH, SS 102911 (qty 4)
* “-X” represents the firmware version that is preloaded to the display kit at the factory.
NOTE: Spefications beyond those listed here exist in the field. Contact factory for more options.
18
27
26
19
24
Oven Type Housing, Control, Left End Housing, Control, Display
SOTA
No USB: i1-9526-1-T004
USB: i1-9526-2-T004
i1-9527-T004
SBK i1-9526-1-T006 i1-9527-T002
STAINLESS i1-9526-2-T005 i1-9527-T005
PANINI
No USB: i1-9526-1-3020
USB: i1-9526-2-3020
i1-9527-3020
SOTA TOUCH i1-9526-2-T004 i1-9581-T004
SBK TOUCH i1-9526-2-3020 i1-9581-3020
PANINI TOUCH i1-9526-2-T006 i1-9581-T002
