Parameterizing and Configuring
Connecting the devices to CODESYS PLC with Modbus TCP master
104
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
Defining channel 1 (output data)
Double-click the Modbus TCP Slave.
In the register tab Modbus Slave Channel select Add Channel.
Enter the following values:
Channel name
Access type: Write Singe Register
Offset: 0x0000
Length: 1 register
Confirm with OK.

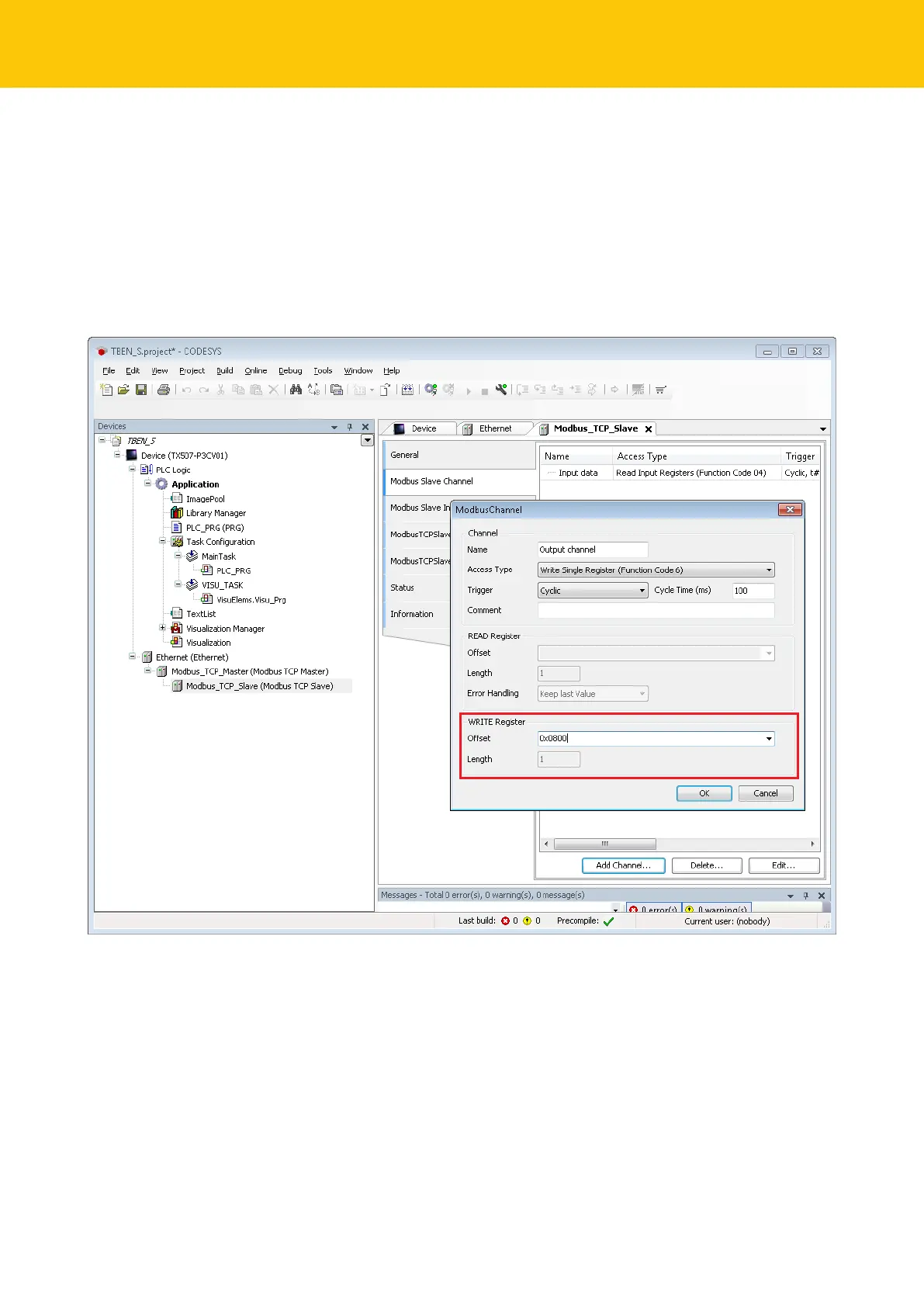

Fig.66: Defining the output register
