8.5 Connecting the device to a Siemens PLC in PROFINET
The following example describes the connection of the devices to a Siemens PLC in PROFINET
by means of the programming software SIMATIC STEP7 Professional V13 (TIA-Portal).
Used hardware
The following hardware components are used in this example:
n Siemens PLC S7-1500
n TBEN-S… block module
Used software
The following software tools are used in this example:
n SIMATIC STEP7 Professional V13 (TIA-Portal)
n GSDML file for TBEN-S… (can be downloaded for free as ZIP archive "TBEN-S_PROFINET.zip"
under www.turck.com)
Prerequisites
n The programming software has been started.
n A new project has been created.
n The PLC has been added to the project.
8.5.1 Installing the GSDML-file
The GSDML file can be downloaded for free from www.turck.com .
Adding the GSDML-file: Click Options Ò Manage general station description files
(GSD).

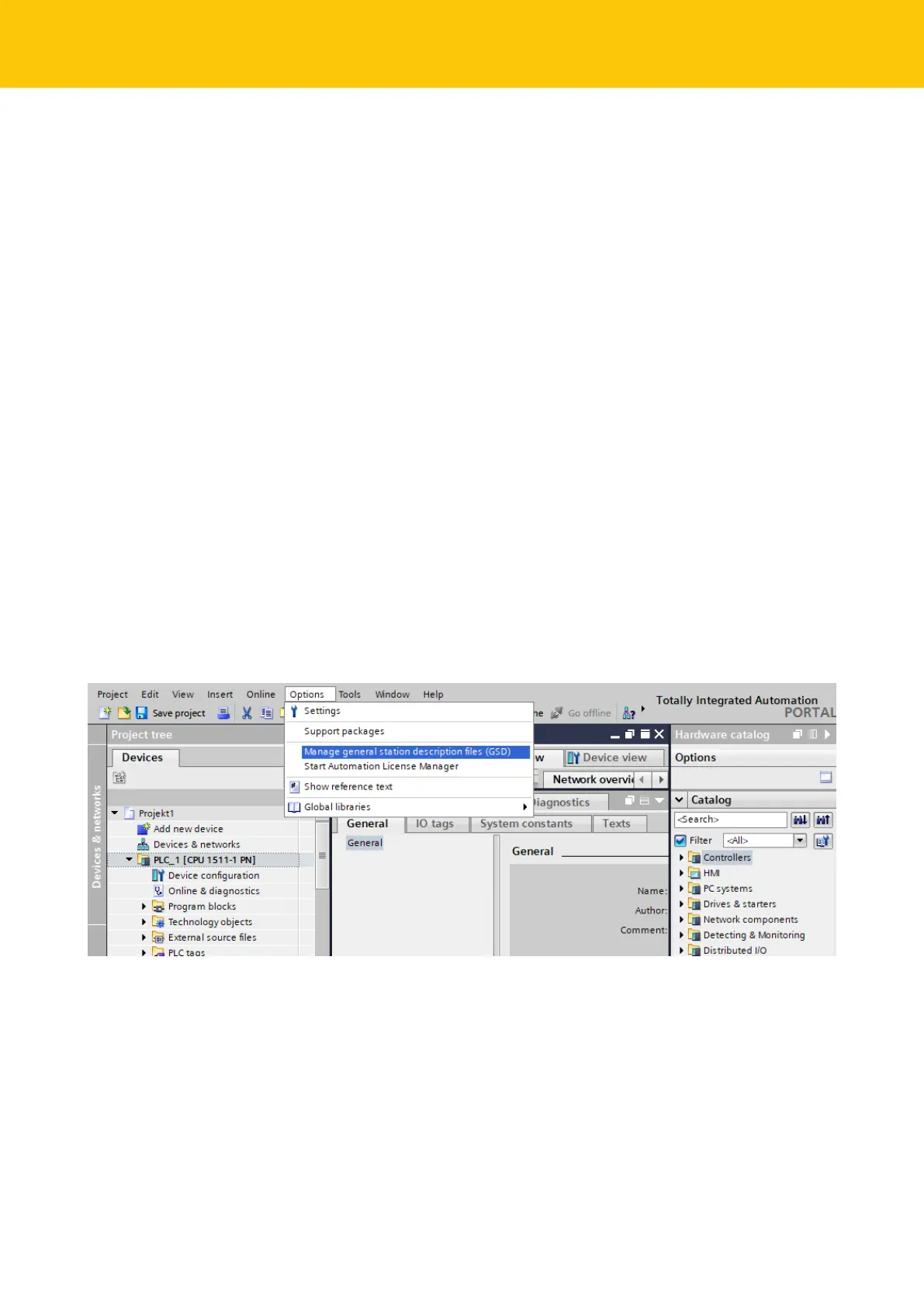

Fig.50: Adding the GSDML-file
