SPS/HMI/Service/Engineering

24 VDC

Ethernet

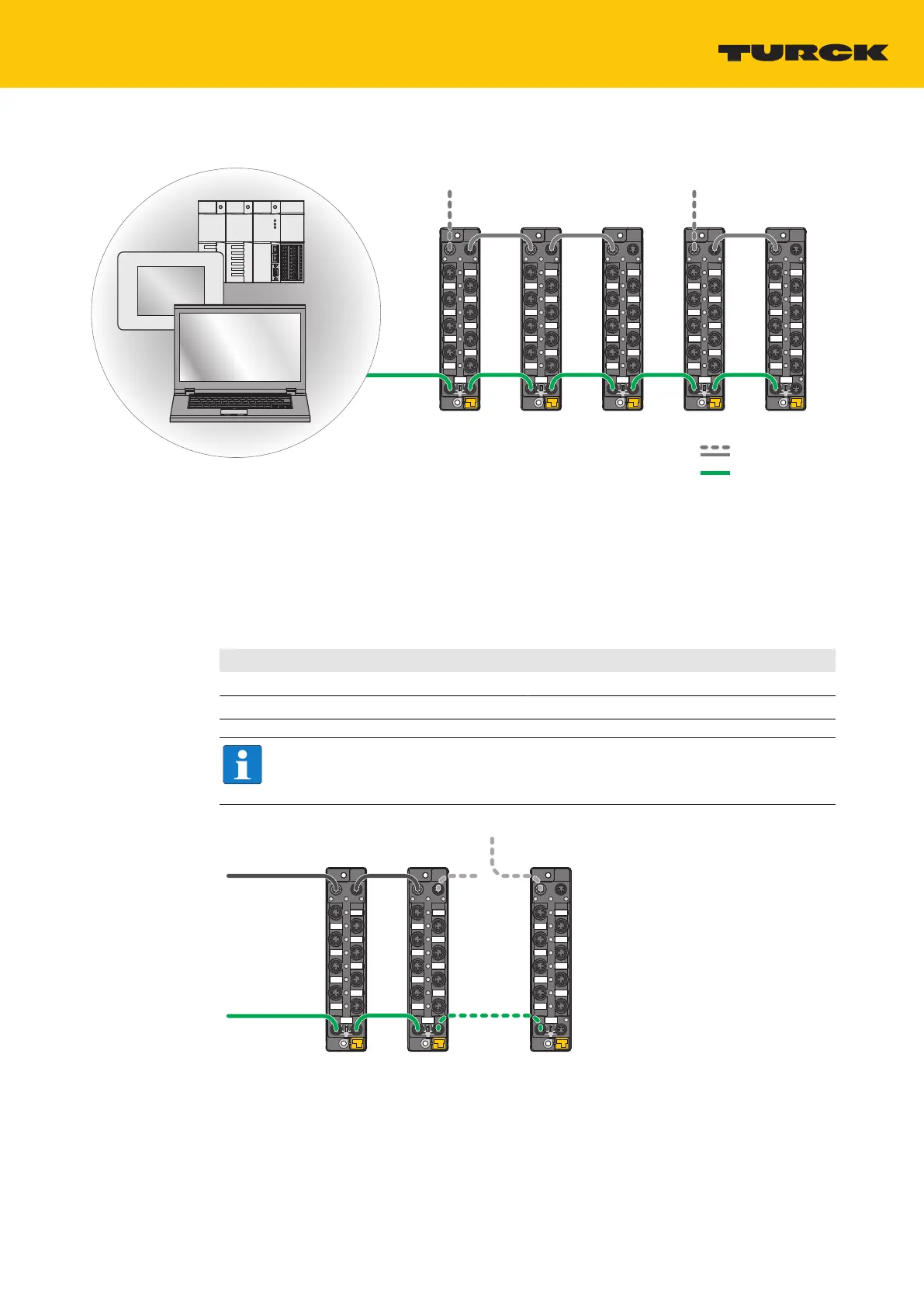

Fig.7: Network structure, example 3

4.4.1 Ethernet daisy chain - max. number of connected modules

Prerequisites:

n Optimized network: only TBEN-S-modules in the daisy chain, no additional switches, no

third-party devices

n exchange of pure process data, no acyclic data

Cycle time Maximum number TBEN-S modules

1 ms 21

2 ms 42

NOTE

Deviations from the specification above may lead to a reduction of possible TBEN-S-

modules connected to one daisy chain.

24 VDC

Ethernet

Module 1

192.168.1.32

Module 2

192.168.1.129

Module 42 (max.)

192.168.1.233

Fig.8: Daisy Chain
