turck TBEN-S Series User Manual

Mounting
Grounding the device
22
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
5.5 Mounting the device outdoors
The device is UV-resistant according to DIN EN ISO 4892-2. Direct sunlight can cause material
abrasion and color changes. The mechanical and electrical properties of the device are not af-
fected.
 To avoid material abrasion and color changes: Protect the device from direct sunlight,
e.g. by using protective shields.
5.6 Grounding the device
5.6.1 Equivalent wiring diagram and shielding concepts
The equivalent circuit diagrams and shielding concepts of the TBEN-S module variants are
shown in the following figures:
X1
C0
C1
C2
C3
P1
X2
C4
C5
C6
C7
P2
X1
C0
C1
C2
C3
P1
X2
P2

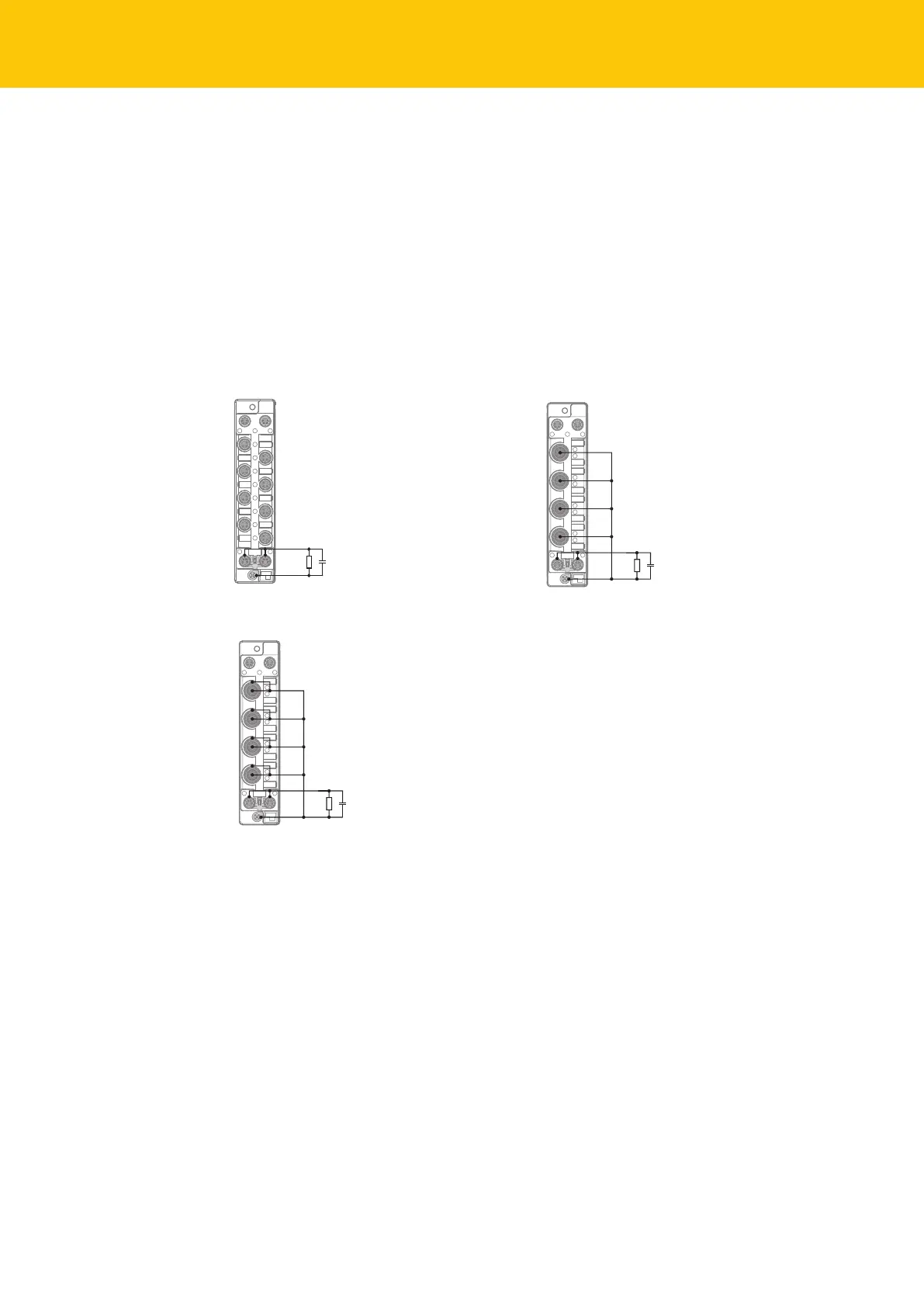

Fig.19: TBEN-S1 digital modules – equivalent
wiring diagram and shielding concept
Fig.20: TBEN-S2 digital modules – equivalent
wiring diagram and shielding concept
X1
C0
C1
C2
C3
P1
X2
P2
Fig.21: TBEN-S2 analog modules – equivalent
wiring diagram and shielding concept
