Parameterizing and Configuring
Configuring the devices at EtherNet/IP
136
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
Common services
Service code Class Instance Meaning
Dec. Hex.
1 0x01 Yes Yes Get_Attribute_All
2 0x02 No No Set_Attribute_All
14 0x0E Yes Yes Get_Attribute_Single
16 0x10 No Yes Set_Attribute_Single
Interface status
This status attribute shows the status of the TCP/IP network interface. Refer to the TCP/IP Ob-
ject Status Diagram for details on the states of this status attribute.
Bit Designation Meaning
0…3 Interface
Configuration
Status
Indicates the status of the Interface Configuration attribute:
0 = The Interface Configuration attribute has not been configured
1 = The Interface Configuration attribute contains valid configuration.
2…15 = reserved
4…31 reserved

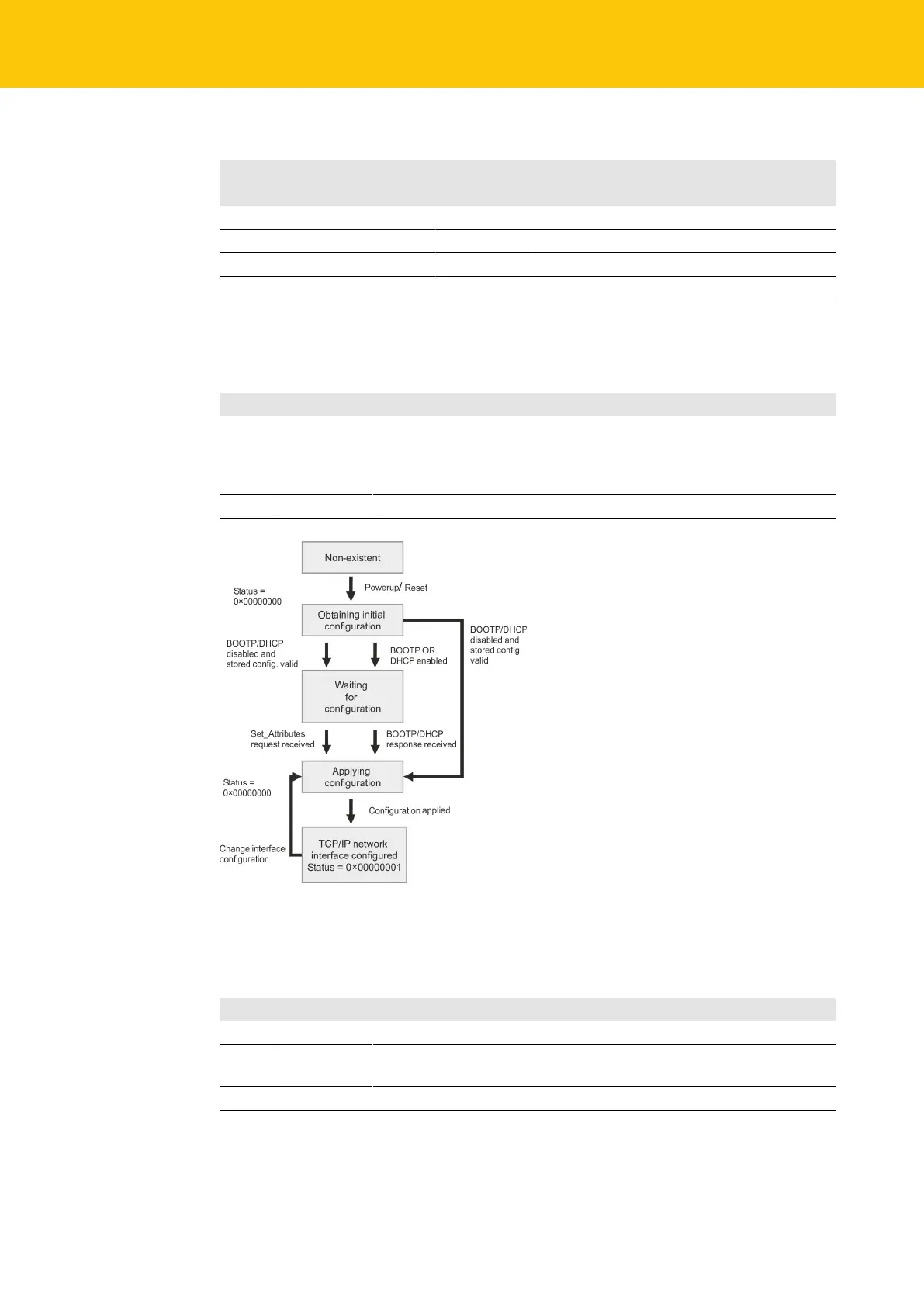

Fig.70: TCP/IP object state diagram (acc. to CIP Spec., Vol.2, Rev. 1.1)
Configuration capability
The Configuration Capability indicates the device’s support for optional network configuration
capability.
Bit Designation Meaning
0 BOOTP client This device supports network configuration via BOOTP.
1 DNS client The device is capable of resolving host names by querying a DNS
server.
2 DHCP client This device supports network configuration via BOOTP.
