turck TBEN-S Series User Manual

Connecting
Connecting analog sensors and actuators
36
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com

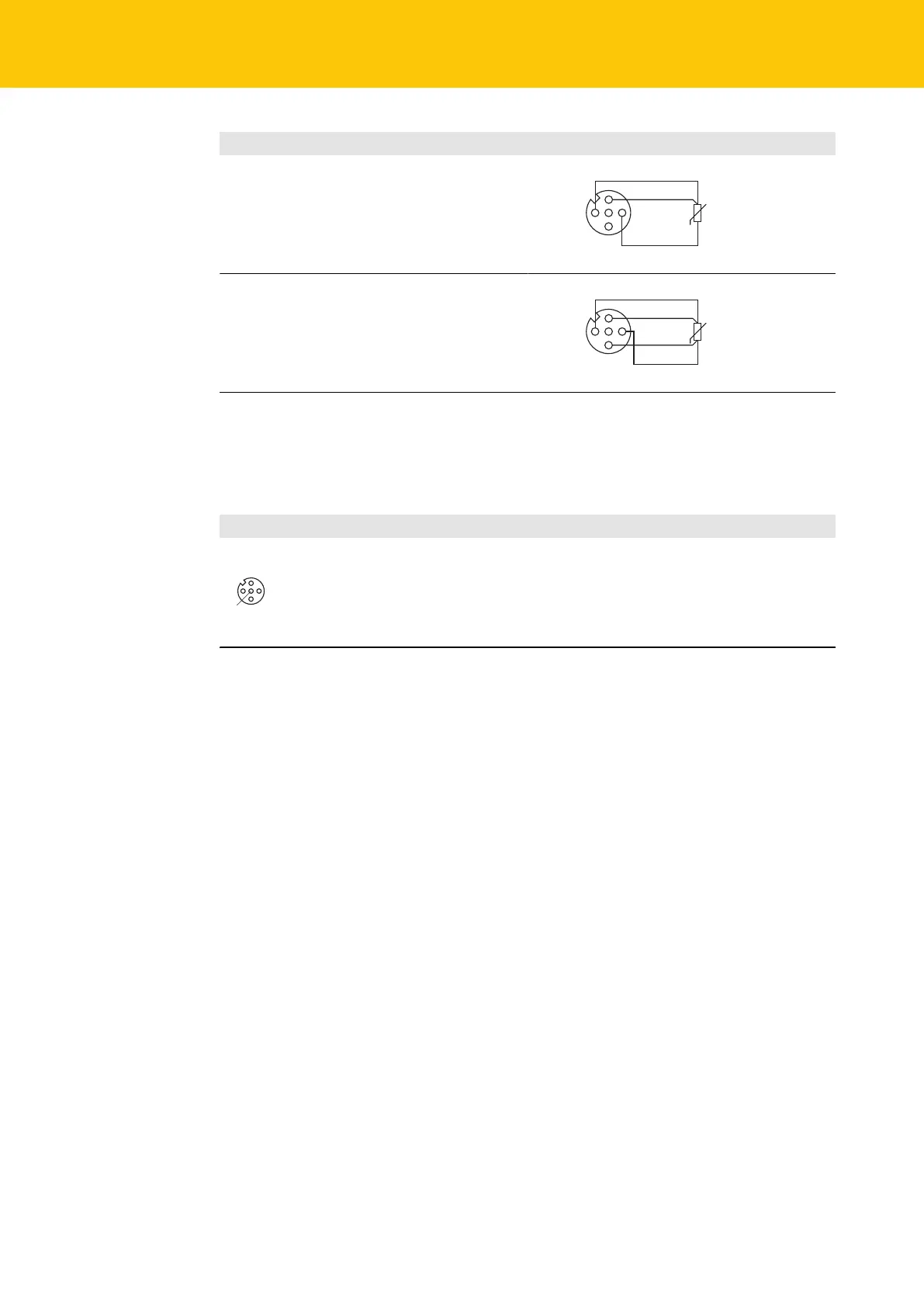

Connection examples Resistance/RTD
3-wire connection
1 (R
L
+)
2 (R +)
3 (R
L
–)
é
4-wire connection
1 (R
L
+)
2 (R +)
4 (R –)
3 (R
L
–)
é
TBEN-S2-4AO – current/voltage
 Connect the analog sensors and actuators to the device according to the pin assignment
shown below.
 Seal unused slots with blind plugs.
Single ended
4
1
3
2
5
v
1 = V2 +
2 = AO +
3 = GND V2
4 = AO –/GND V2
5 = FE
Flange = FE
C0...C3
