Step 1: Assemble the extrusion head housing Assembling the extrusion head50
through the black injection molded part.
17. Attach the LONG studding bolts. Do not attach the LONG studding
bolts too tight.

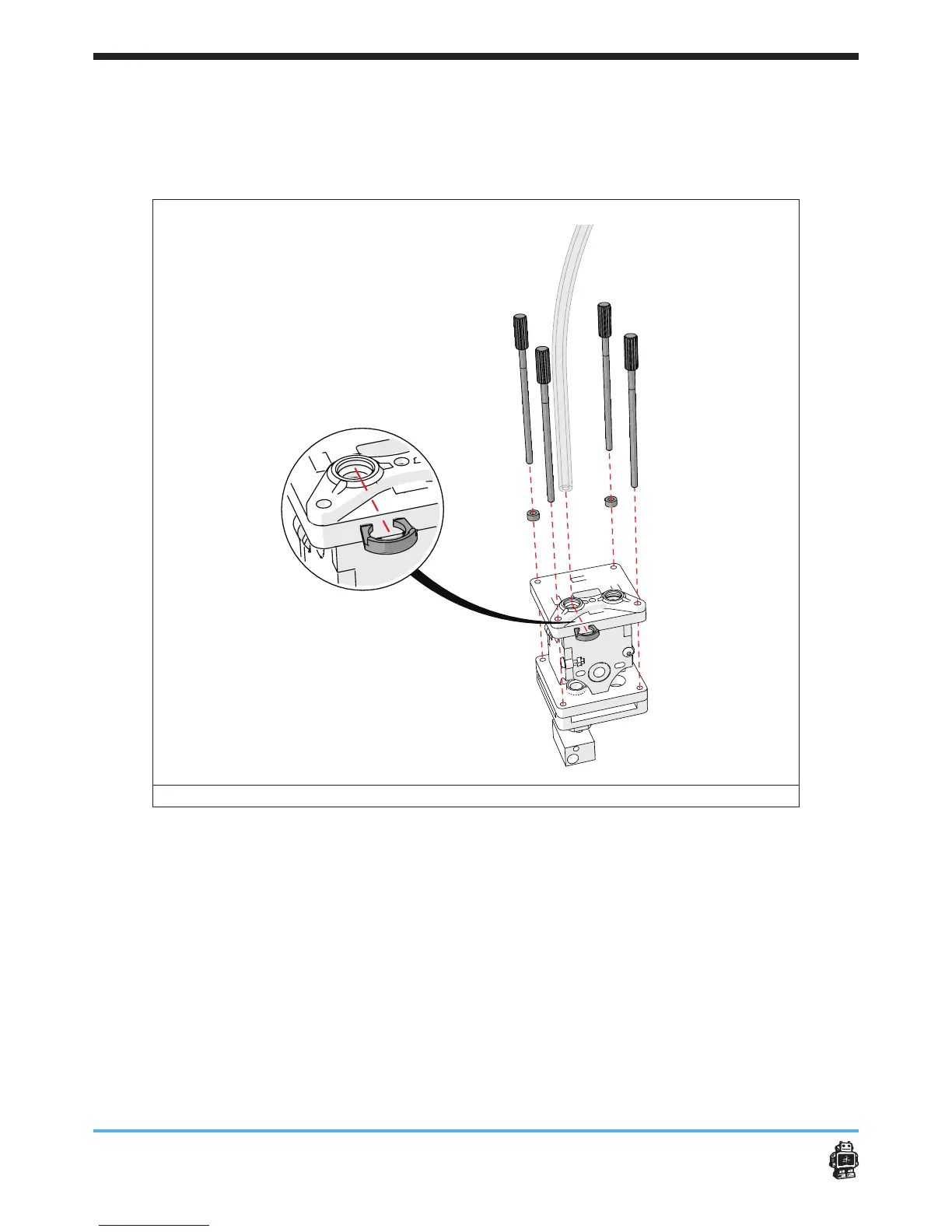

image 58: Attaching the WHITE bowden tube clamp and the long studding bolts.
5 NOTICE: keep a small gap between the wooden part and the
aluminium plate.
18. Move the bowden tube through the WHITE bowden tube clamp and
through the teon tube.
5 NOTICE: use the end of the bowden tube which has no blue tape..
Tip: you can use a screwdriver to guide the bowden tube through the
teon tube.
19. Lock the bowden tube, by putting the blue horse shoe under the
WHITE bowden tube clamp, see image 58.
5 NOTICE: give some light pressure on the bowden tube while placing
the blue horse shoe.
20. Tighten the long studding bolts completely.
