Ultimaker ORIGINAL+ - Step 2: Drive Bolt Assembly

73
10. Place two bolts M3 x 20mm near the ball bearings 8mm and lock with
two hex nuts 3mm.

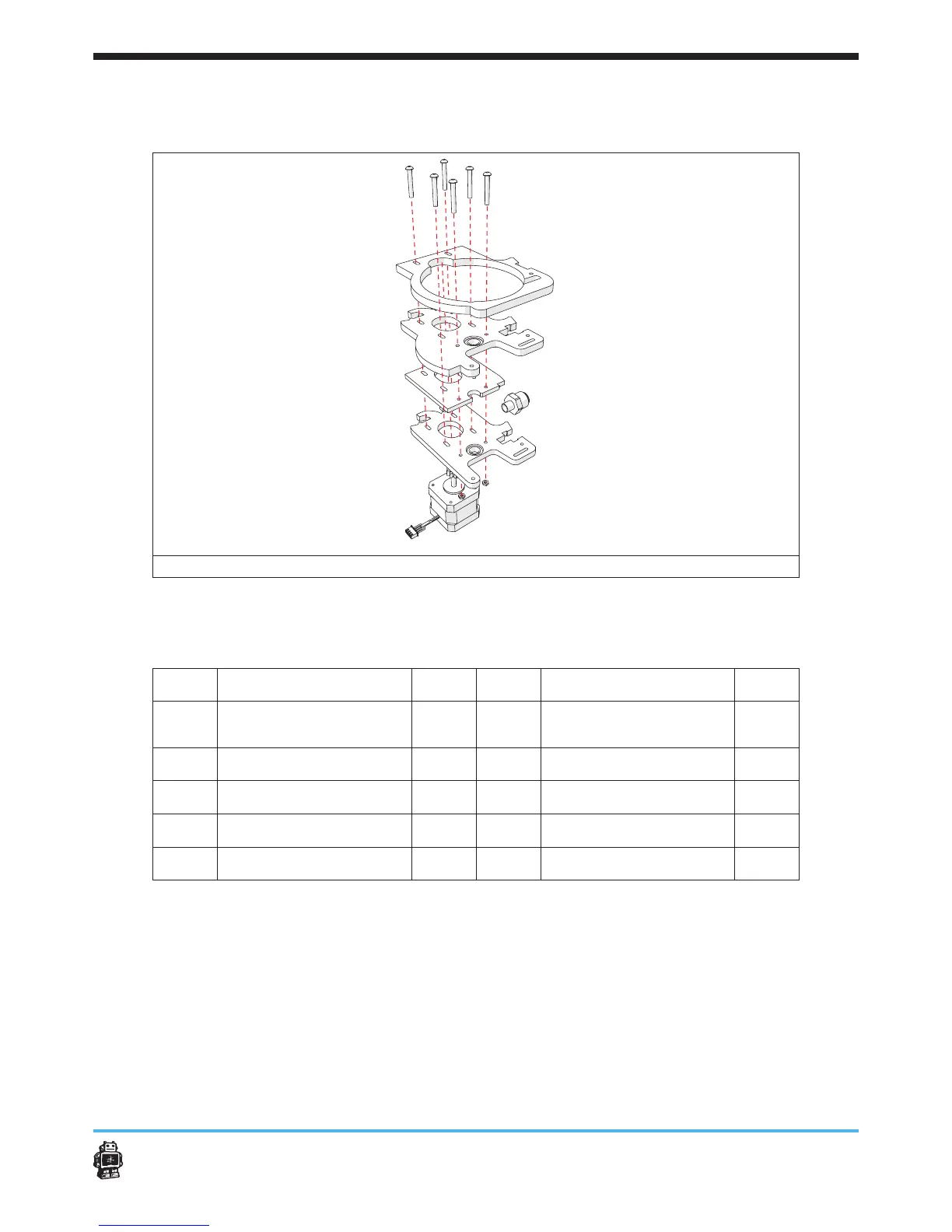

image 90: mounting dierent parts on the motor
6.5.2. Step 2: drive bolt assembly
The following parts are needed in this step.
Letter Description Qnty. Letter Description Qnty.
A
wooden gear
(engraved extrude)
1
F
washers M8 3
B
wooden gear Cap 1
G
hex nut M8 3
C
delrin clip 1
H
hobbed bolt 1
D
Locknut 1
I
cap nut M8 1
E
M3x14mm 3 3
