tube spacers.
4. Secure with four threaded spacers.

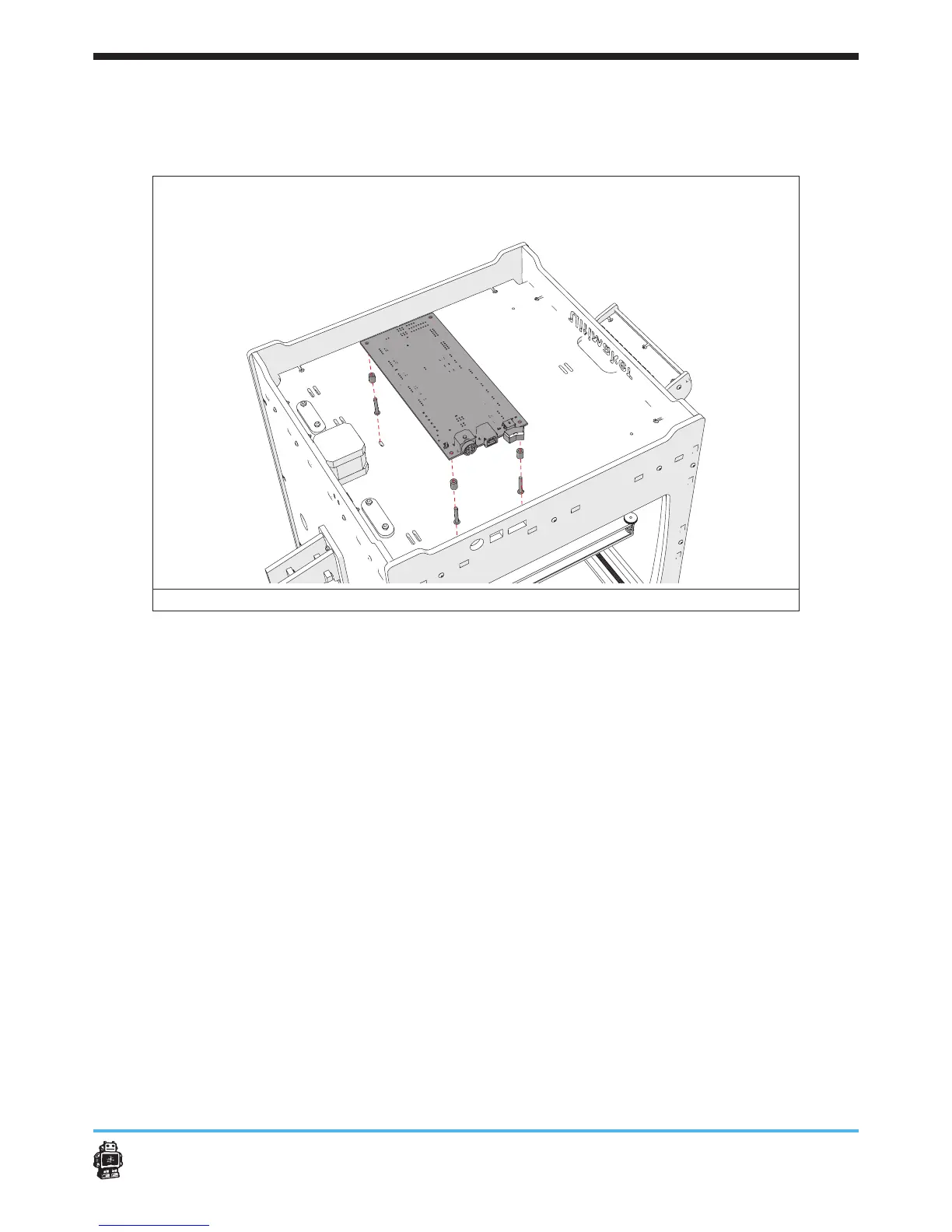

image 106: mounting the electronics circuit board
6.6.2. step 2: connecting the heater and Heated Bed
To connect the heater, perform the following actions.
1. Connect the WHITE wires of the heater element to the terminals of the
heater 1 output, see image 107.
5 Notice: do not strip the wires too much. This can cause short circuit.
5 Notice: do not strip the wires too short. This can cause no contact.
2. Attach the terminals.
Use a small screwdriver.
5 Notice: make sure the cable is secure.
3. Connect the Gray wires of the heater element to the terminals of the
heated bedoutput
4. Attach the terminals.
Use a small screwdriver.
