Step 6: installing the Z stage in the machine Assembling the Z stage68

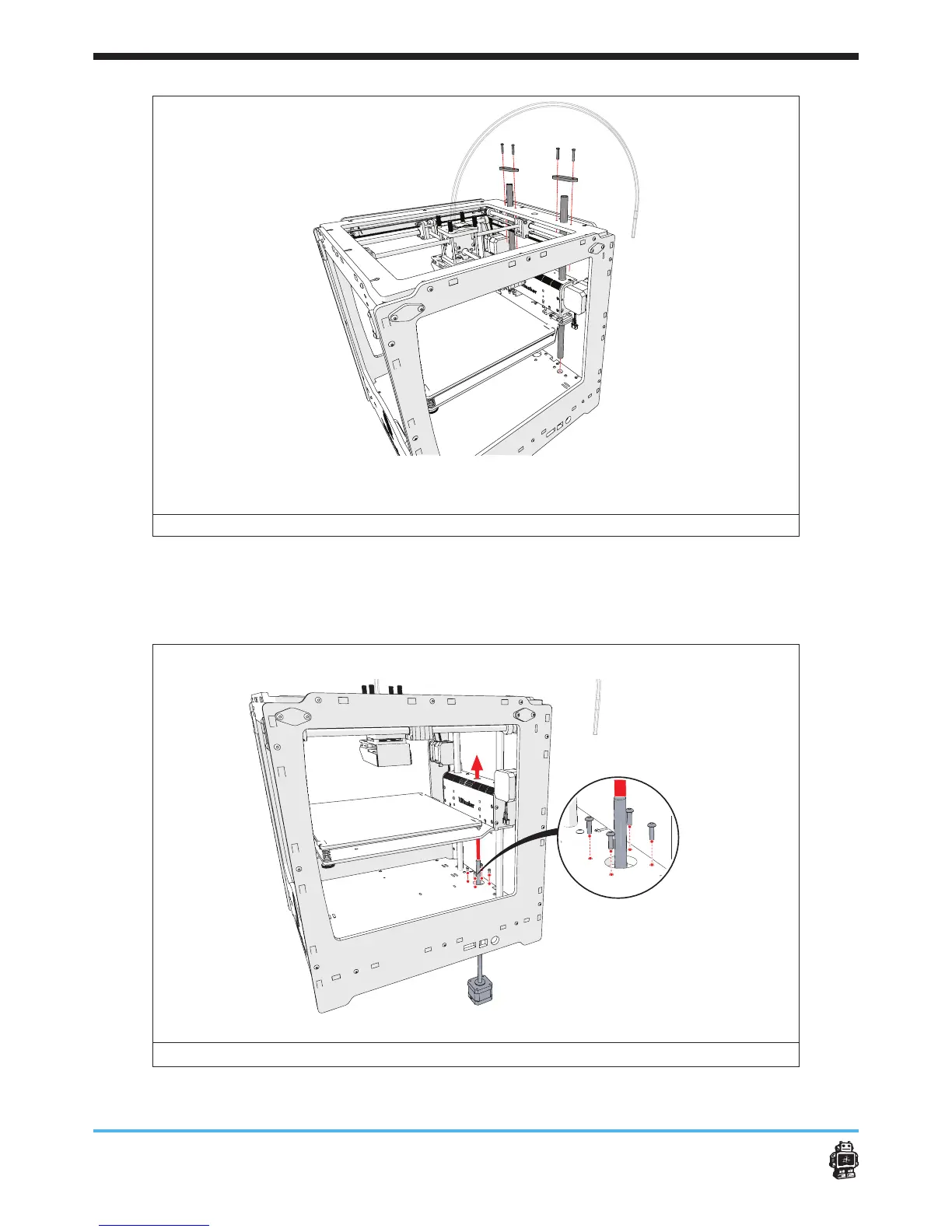

image 85: attaching the 12mm axes
6. Attach the Z-motor with the spindel.
7. Attach the four screws on the motor to secure it to the framewith, see
image 86.
image 86: attaching the leadscrew M8 trough the drive nut
The frame is now ready!
