Step 5: assemble the lament holder Assembling the material feeder 81
4 x
2 x

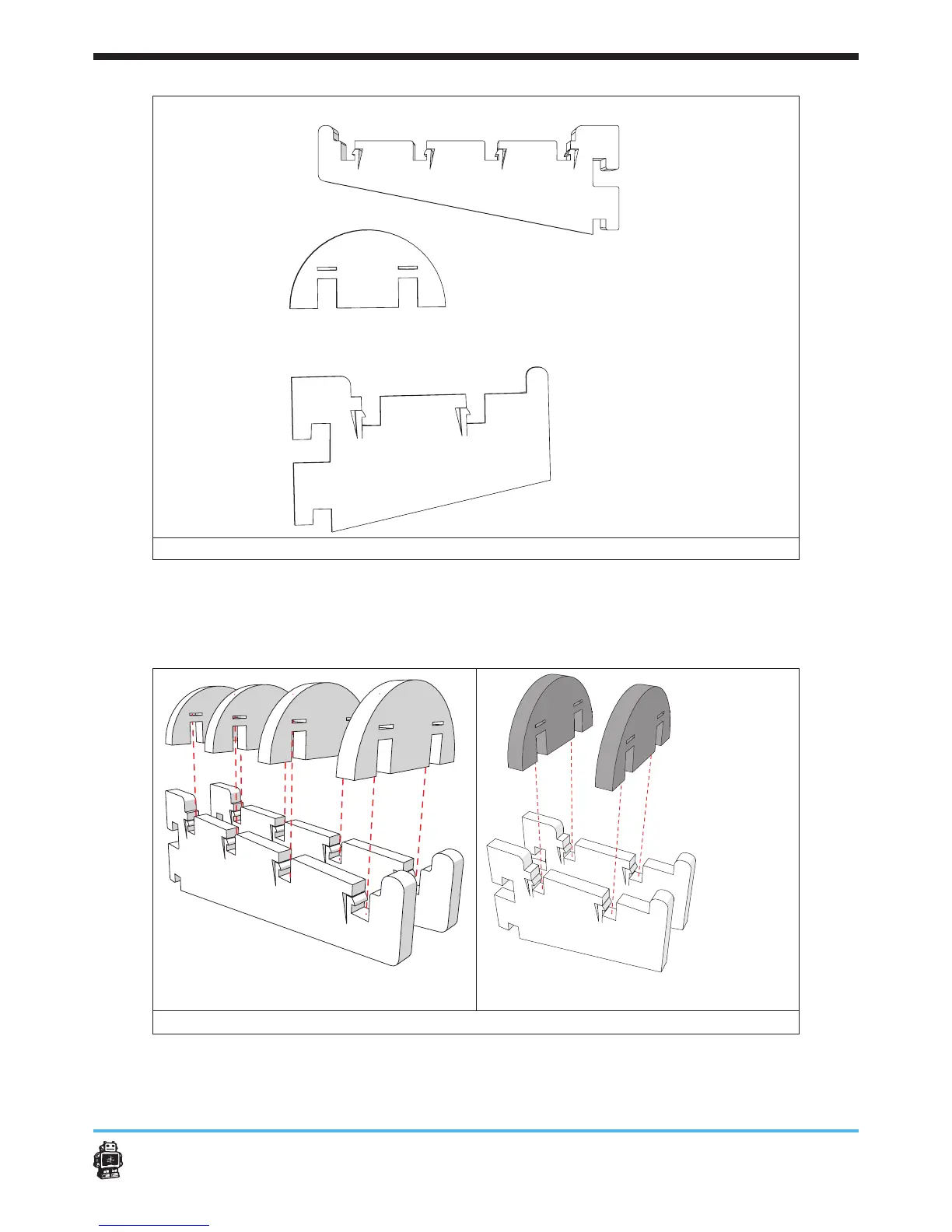

image 102: parts needed for this step
To assemble the lament holder, perform the following actions.
1. Position two wooden parts 11B next to each other.
2. Push the four wooden parts 11C in the slots of the two wooden parts
11B, see image 103.
image 103: attaching the BACK, TOP, BOTTOM and FRONT panel
3. Place the lament holder in the slots in the BACK panel, see image 104.
A
B
C
