Universal Audio Arrow User Manual

Arrow Manual Console Settings 166
Save Switch
This switch saves the current state of the I/O Matrix panel
to disk as an I/O preset file. If the I/O preset already
exists, the existing I/O preset file is overwritten with the
current settings. If the I/O preset has never been saved,
the Save I/O preset dialog appears so the preset can be
named.
Important: Settings will not be properly saved if the “/” (forward slash) or “?”
(question mark) characters are in the filename. Avoid these and other special
characters when saving I/O preset files.
I/O Presets Popover

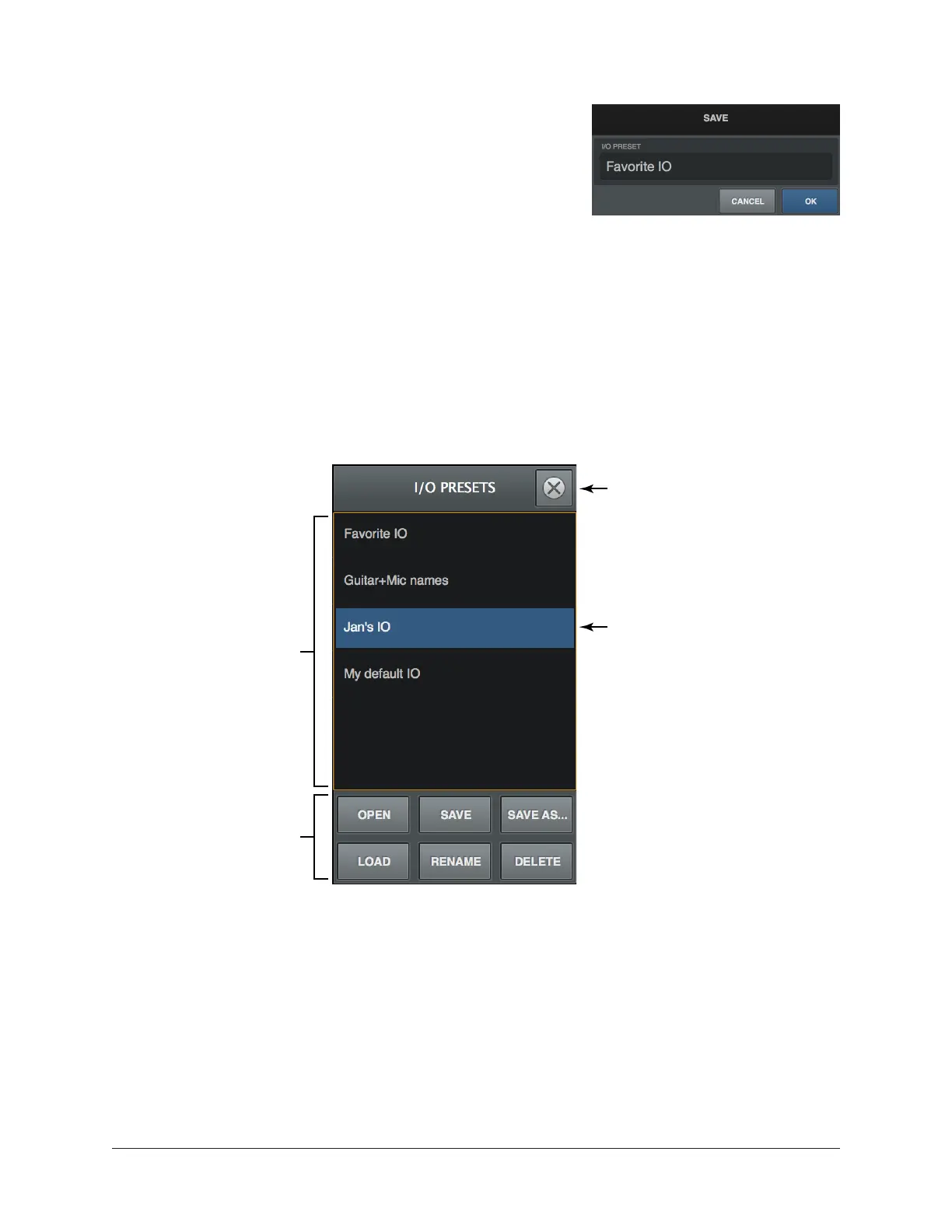

The I/O Presets popover window is where various functions can be performed on I/O
preset files. To open the I/O Presets window, click the I/O Presets Menu.
I/O Presets popover
All existing I/O preset files at the I/O Preset Files Location are displayed in a list
within the I/O Presets window. Available functions at the bottom of the window can be
performed on the selected I/O preset (a preset is selected when it is highlighted in blue).
Save I/O preset dialog
All I/O Presets
I/O Preset
Functions
Close Popover
Selected I/O Preset
(blue)

Universal Audio Arrow Specifications

General

Type	Audio Interface
Connectivity	Thunderbolt 3
Input Channels	2
Output Channels	2
Simultaneous I/O	2 x 4
Preamps	2
Phantom Power	Yes
A/D Resolution	24-bit/192 kHz
Analog Inputs	2 x XLR/TRS Combo
Headphones	1 x 1/4"
Thunderbolt Ports	1 x Thunderbolt 3
Power Supply	Bus powered
Software	UAD Software
Compatibility	Mac, Windows
Analog Outputs	2 x 1/4" TRS
