Urban MilkShuttle - Identification of the Product; Dimensioned Drawings

Technical data
14
3.1 Identification of the product
These operating instructions apply to all "Milk Shuttle" calf milk mixers with the
name plate illustrated in the following.
3.2 Dimensioned drawings

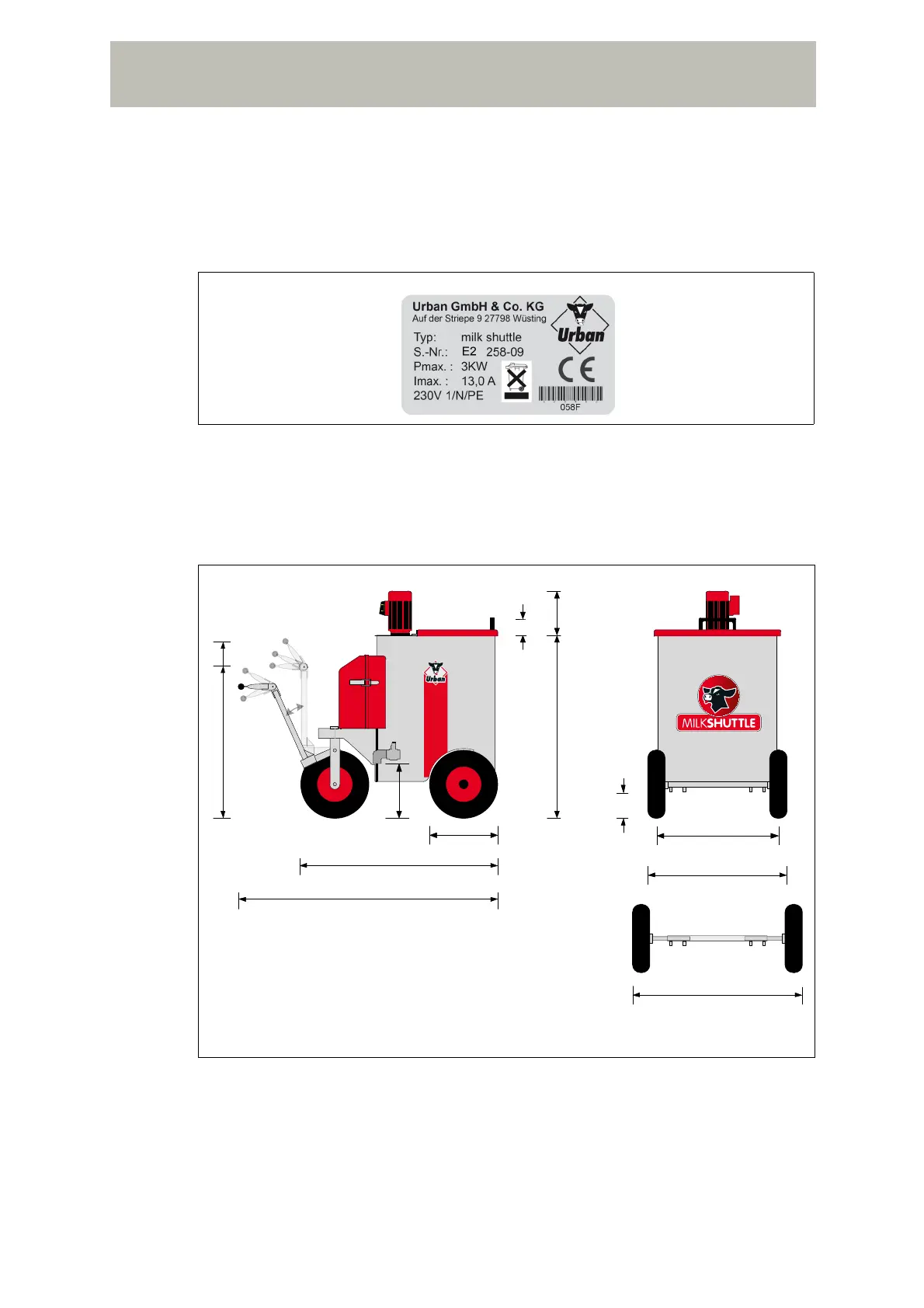

Figure 3/2: Name plate on the device (example)
Figure 3/3: Dimensioned drawing MilkShuttle
90 -104cm
2,94 - 3,42ft
40cm
1,31ft
26cm
0,86ft
0,32ft
10cm
0,49ft
15,0cm
variabel / adjustable
32cm
1,05ft
MilkShuttle 100: max. 106 cm (3.47 ft)
MilkShuttle 150, 200, 250: max. 117 cm (3.84 ft)
MilkShuttle 100: max. 142 cm (4.65 ft)
MilkShuttle 150, 200, 250: max. 153 cm (5.02 ft)
MilkShuttle 100, 150: 98 cm (3.22 ft)
MilkShuttle 200: 110 cm (3.61 ft) MilkShuttle 250: 123 cm (4.04 ft)
Typ 100: 68 cm (2.23 ft)
Typ 150, 200, 250: 72 cm (2.36 ft)
Typ 100: 78 cm (2.56 ft)
Typ 150, 200, 250: 82 cm (2.69 ft)
Typ 100: 78 - 93 cm (2.56 - 3.04 ft)
Typ 150, 200, 250: 79 - 100 cm (2.59 - 3.28 ft
