Start-up
27
5.6
Wash for first start-up
When delivered, there is a small amount of
antifreeze agent in
the pump. Before
filling the Milk Shuttle with calf milk replac
er (CMR) or whole milk for the first time,
the device must be washed with approx. 30 litres o
f water.
5.7
Calibrating
Calibrate the dosing pump before prod
uctive use, see chapter 7.2.1 on page
46.

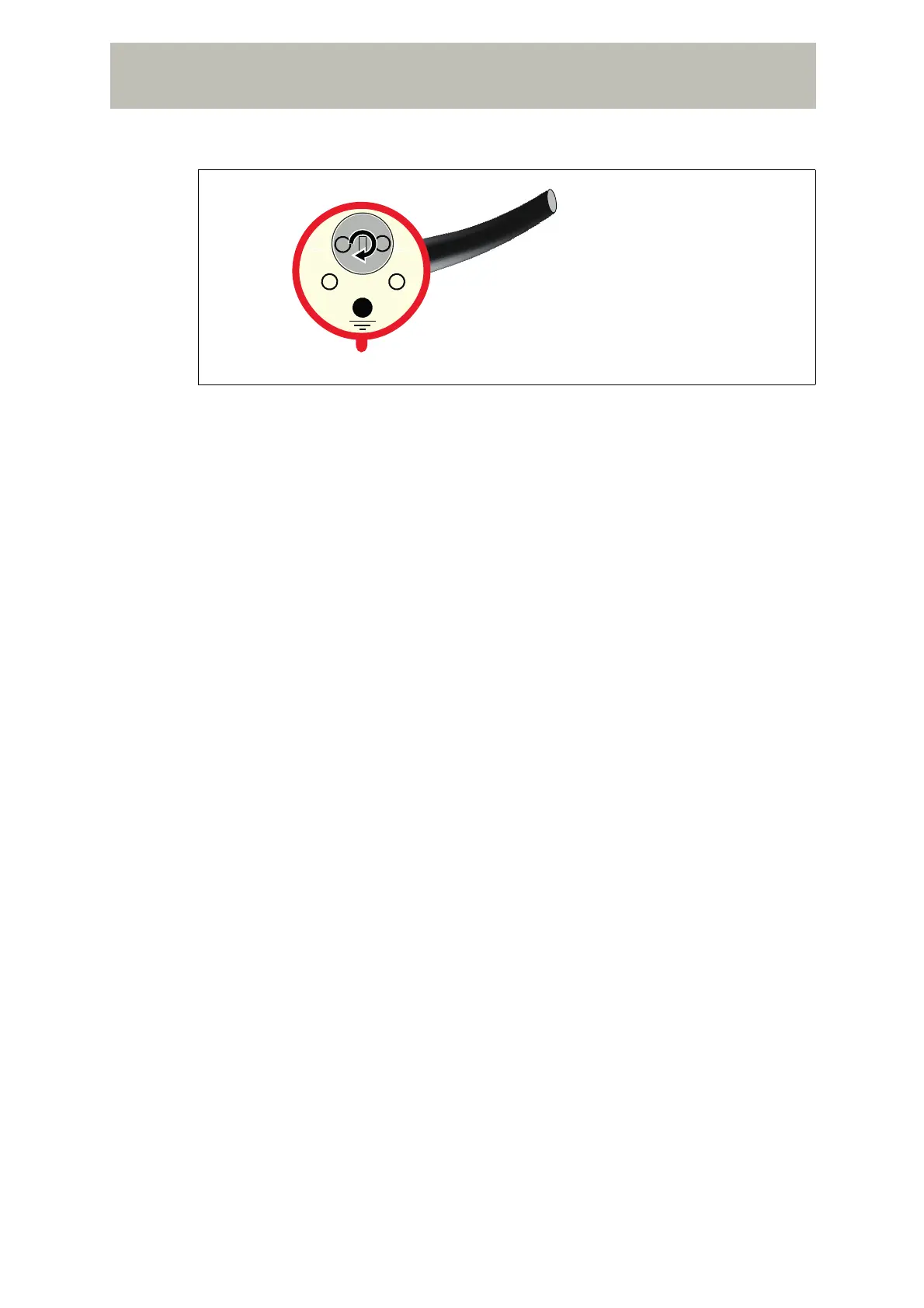

Figure 5/5: Pha
se changing switch
of the connecting cable
(CEE)
L1
N
L3
L2
26
28
Table of Contents
Default Chapter
3
Table of Contents
3
1 About These Operating Instructions
5
Summary
5
Abbreviations and Terms Used in These Operating Instructions
5
2 For Your Safety
7
Symbols Used in These Operating Instructions
7
Warning Symbols on the Device
8
Possible Dangers
10
Recommended Personnel
11
Experienced Personnel
11
Instructed Personnel
12
Intended Use
12
Behaviour in an Emergency
12
Laws, Standards and Directives
12
3 Technical Data
13
Identification of the Product
14
Dimensioned Drawings
14
4 Overview of Milk Shuttle
15
Variants
15
Structure
15
Available Languages
16
Operating and Display Elements
17
Operating Panel
18
Agitator Motor Switch
19
Housing Closures
19
Drawbar Handle
20
5 Start-Up
21
Scope of Delivery
21
Transportation
21
Unpacking
22
Adjust the Drawbar Handle
23
Electrical Connection
24
Requirements
24
Connecting to the Power Supply
25
Wash for First Start-Up
27
Calibrating
27
6 Operation
29
Switching on and off
29
Heating/Agitating
30
Filling/Mixing the Feed
32
Feeding
34
Removing/Dosing Feed
34
Cleaning
37
Milk Shuttle Without Dosing Pump
37
Milk Shuttle with Dosing Pump (Optional)
38
Moving the Milkshuttle
39
Moving on Level Ground
39
Moving the Milkshuttle on Sloping Terrain
40
7 Programming and Calibrating
43
General Settings
43
Setting the Time and Date
43
Setting the User Language
44
Changing the Temperature Unit (Celsius or Fahrenheit)
44
Setting the Warning Levels for Minimum and Maximum Temperature
45
Display Version and Serial Numbers
45
Calibration
46
Calibrate Pump (Time-Controlled)
46
Calibrate the Pump with the Flow Rate Controller (Optional)
47
Temperature Calibration
48
Programming Heating and Agitating
49
Overview
49
Operating Values
50
Programming the Start Times
51
Deleting the Start Times
52
Programming Feeding
53
Programming the Cleaning Programs
54
8 What if
57
General Errors
57
Display Messages
58
Determining the Operating Code
68
9 Maintenance/Repairs
69
Replace Wearing Part Set
69
Replacing Fuses
72
Replace Batteries
73
Replace Main Batteries
73
Replace Batteries for Date/Time
74
Changing the Wheels
76
Changing the Front Wheel
76
Changing the Rear Wheel
77
10 Spare Parts
79
11 Mixing Tables
81
Variant I: Water Volume Given in Litres, CMR Weight Given in Kilograms
81
Variant II: Water Volume Given in Litres, CMR Weight Given in Pounds
82
Variant III: Water Volume Given in Gallons, CMR Weight Given in Pounds
83
Index
85
