Urban MilkShuttle - 4 Overview of Milk Shuttle

Overview of Milk Shuttle
15
4 Overview of Milk Shuttle
4.1 Variants
4.2 Structure
MilkShuttle
100 150 200 250
Heating 2.500 W (240 V) 
Heating 5.500 W (400 V) 
Agitator with 2 different speeds (700 / 1400 U/min) 
Drain valve 1,5“ 
Pump nozzle with pump and quantity preselection 
Cleaning program (only in conjunction with pump nozzle/pump) 
Propelling drive (battery, 24 V) 
Flow rate sensor (only in conjunction with pump nozzle/pump) optional

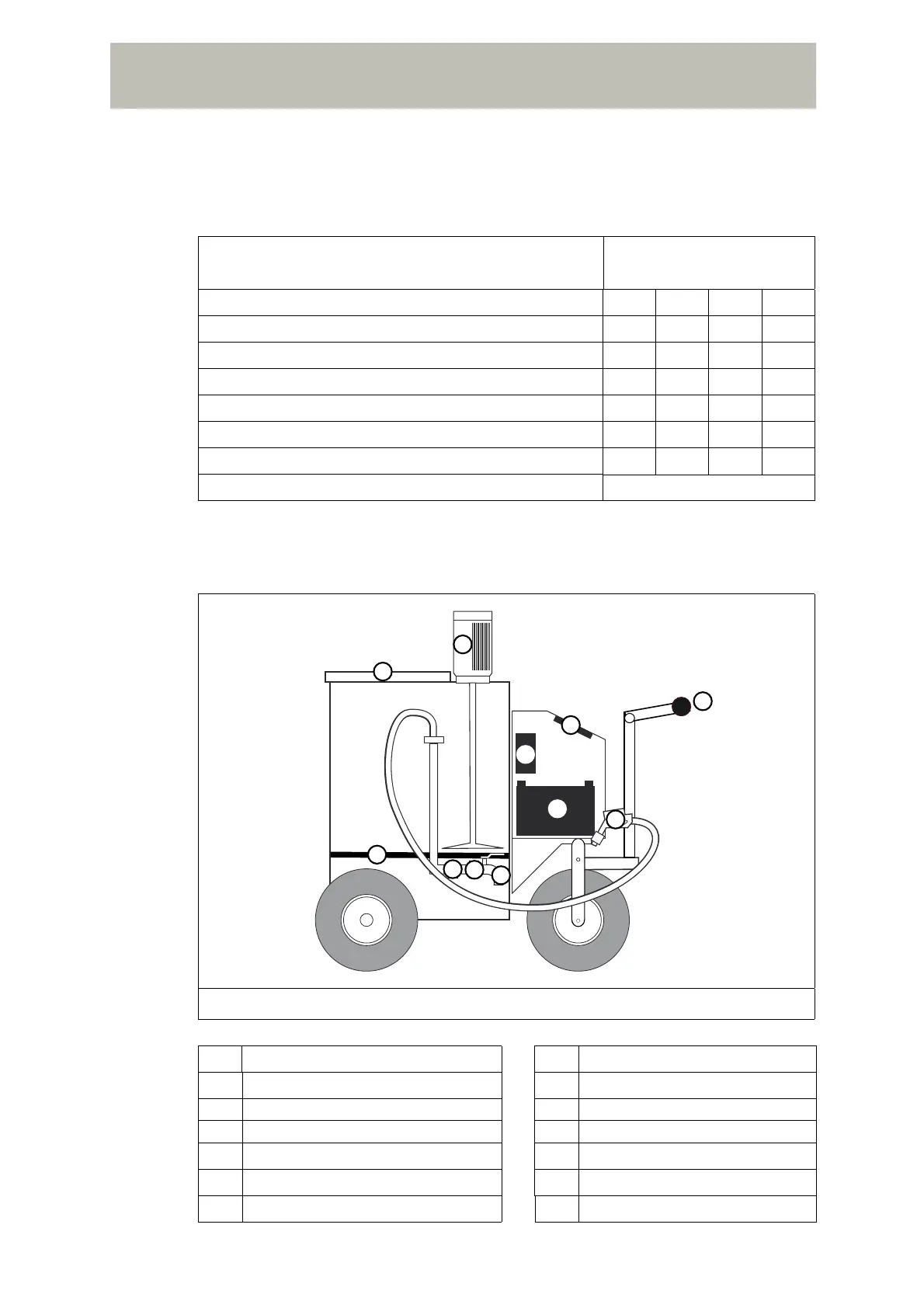

Figure 4/1: Schematic structure of the MilkShuttle
Nr. Designation Nr. Designation
1
Container lid with seal 7 Pump nozzle
2
Agitator motor 8 Drain valve 1,5‘‘
3
Drawbar 9 Dosing pump (battery operated)
4
Operating panel 10 Flow rate meter (optional)
5
Power- and control electronics 11 Bottom heating
6
Batterie(s) 12 V
3
5
7
4
6
2
11
1
9
8
10
