7 Rotary
Knob
The rotary knob is a dial control with a push
selection switch. It is located on the front of the
monitor, in the lower right corner. Turn the rotary
knob to navigate the cursor around the display.
Push the knob to select highlighted options.
8 Battery
Supply LED
The green Battery Supply LED will light to indicate
that the monitor is supplied by battery.
9 AC
Power LED
The green AC Power LED will light to indicate that
the monitor is connected to an AC power source.
10 Battery
Charge
LED
The green Battery Charge LED will light to indicate
that the monitor is been charging.
11 Alarm
Silence
LED
The red Alarm Silence LED will flash to indicate
that the alarm volume has been silence for 30
sec, 60sec, 90sec, 120 sec or indefinitely.
12 Work
Status LED
Green when the monitor is working normal. Red
when there is an alarm.
3.3 Left Panel
The left side panel of your monitor contains all of the patient connector
receptacles.

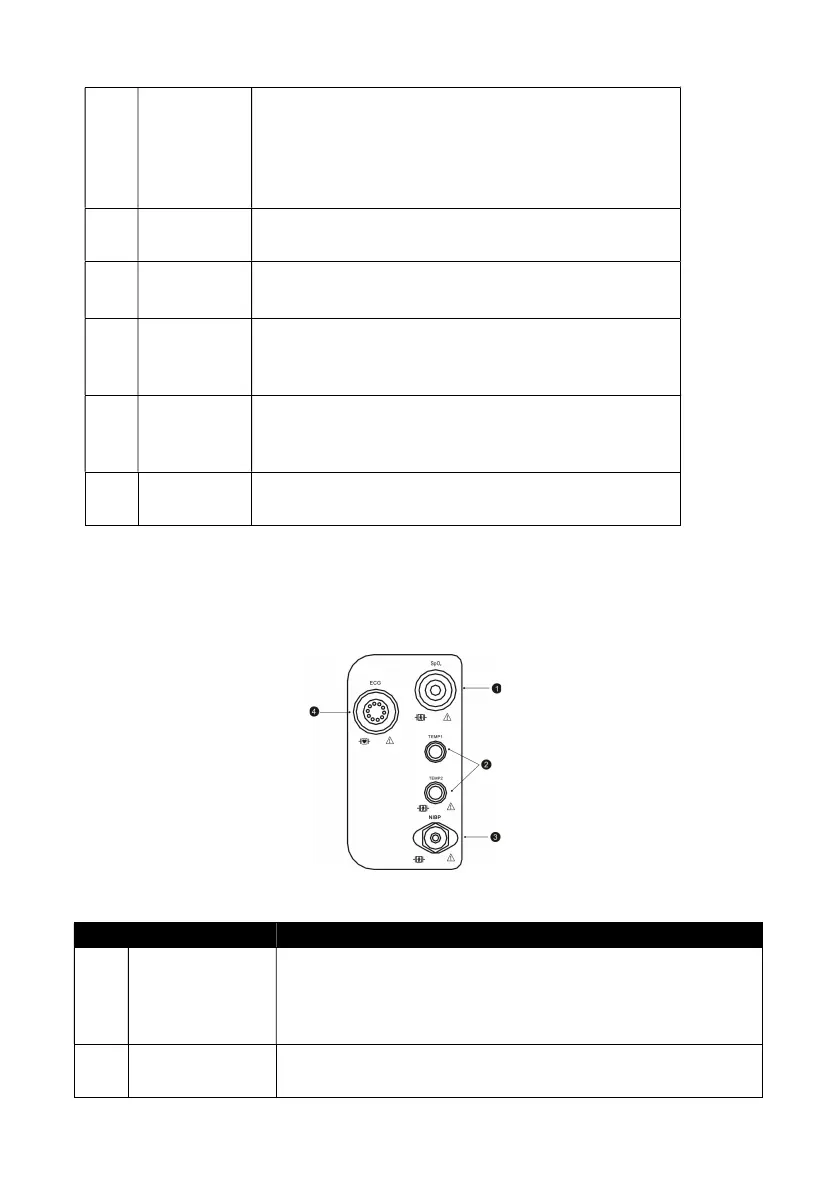

Figure 3.4: Left Panel
NO. DESRIPTION INSTRUCTION
1 Oximetry
Connector
(SpO
2
)
Attach the SpO2 sensor to the monitor. Measured values
for oxygen saturation (%SpO
2
) in the blood and pulse
rate (PR) will be displayed when the sensor is attached
to the patient.
2 Dual
Temp
erature
If the temperature is installed on your monitor, the
TEMP parameter box will appear on the display when
